BLDC Motor Parking Barrier Gate AC110V Straight Arm TCP IP Network

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-DZE-BL
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,000pcs per month
Product Details
Speed Range 1.5s~6s Color Yellow, Grey, Golden
Input Voltage 220V/110V±10%; DC24V Boom Type Optional
Feature High Durable Drive System DC Brush-less Motor
High Light

BLDC Motor Automatic Barrier Gate

,

AC110V Automatic Barrier Gate

,

200W Automatic Vehicle Barrier

Leave a Message
Product Description

Most Affordable Straight Arm Medium Traffic Flow BLDC Motor Parking Barrier Gate



DC Brushless Barrier Gate SN-DZE-BL

  • It can be equipped with SN-DZE-BL(1.5-6s) mechanism
  • Left-installation and right-installation can be exchanged (Optional)
  • Alarm against abnormal lifting boom
  • Support 24-hour continuous operation without heating protection
  • Speed will reduce when the boom moves to the limited position
  • RS485 communication, TCP/IP network port

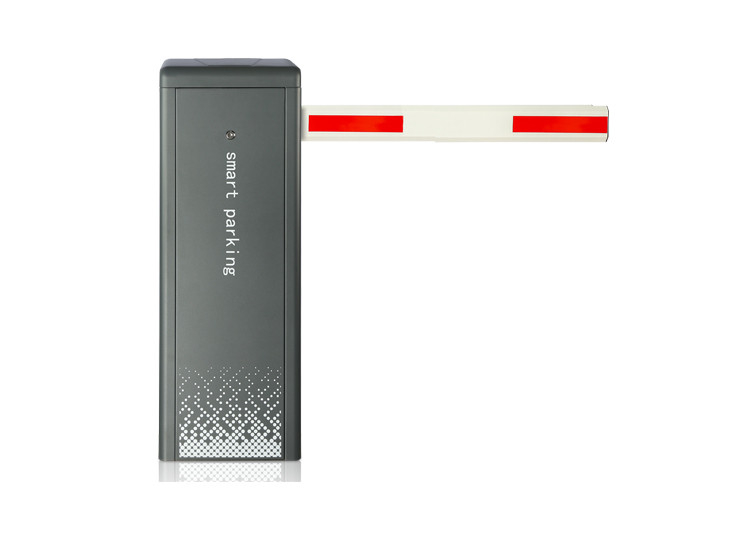

BLDC Motor Parking Barrier Gate AC110V Straight Arm TCP IP Network 0

TECHNICIAL SPECIFICATIONS



Model
DZE-BL (speed 1.5-6s adjustable)
Running Speed
1.5s
3s
4s
5/6s
6s
6s
6s
6s
Boom Type
straight
90 ° folding
180 ° folding
2 fence
3 fence
Max Boom Length
3m
4.5m
5m
6m
5m
4m
4.5m
4m
Input Voltage
AC 220V±10%, AC110V±10%
Frequency
50/60HZ
Motor Voltage
DC24V
Enclosure Rating
Ip54
MTBF
2,500,000 times
Traffic Flow Application
1500 times / day
Working Motor Power
-35°C~+85°C
Max Motor Power
200W
Max Motor Speed
24r/min



BOOM TYPES FOR CHOOSING

BLDC Motor Parking Barrier Gate AC110V Straight Arm TCP IP Network 1



Functions & Features

1. Driven by DC brushless motor, equipped with movable connecting rod transmission mechanism and balance spring,

stable and reliable operation. Motor life cycle up to 2,500,000 times or more, and spring life cycle up to 500,000 times.


2. Built-in delay auto-closing and reverse on an obstacle in case of resistance.


3. Support infrared photocell, loop detector, and external radar, and built-in DC12V power output.


4. Standard fitting with 433MHZ learning code remote control, convenient and quick to add configuration.


5. When power off, the barrier gate can still work by adding 2 external DC12V batteries. And battery charging module is

optional, when power on, the battery will automatically charge.


6. Holes are available to fix the articulated or fence boom, and multiple boom types on one machine can be easily changed.
