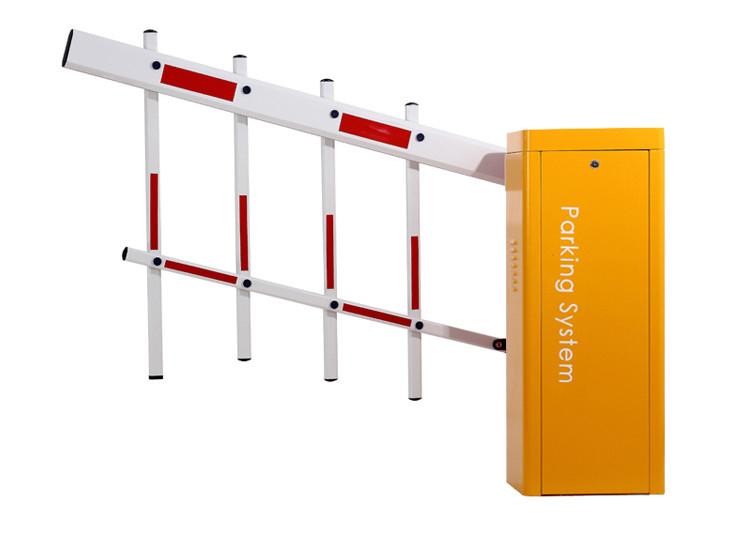

Fencing Arm Vehicle Barrier Gate IP44 Access Control 140W Parking Management
  • Fencing Arm Vehicle Barrier Gate IP44 Access Control 140W Parking Management
  • Fencing Arm Vehicle Barrier Gate IP44 Access Control 140W Parking Management
  • Fencing Arm Vehicle Barrier Gate IP44 Access Control 140W Parking Management
Fencing Arm Vehicle Barrier Gate IP44 Access Control 140W Parking Management

Fencing Arm Vehicle Barrier Gate IP44 Access Control 140W Parking Management

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BG130
Product Details
Color:
Red, Yellow, Blue, Customized
Arm Type:
Straight, Folding, Fencing
Arm Lenght:
Max. 6meters
Remote Control Distance:
≤100 Meters
Place Of Origin:
Shenzhen,China
Protection Rate:
IP44
Highlight:

Fencing Arm Vehicle Barrier Gate

,

Vehicle Barrier Gate IP44

,

140W Lifting Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
3,000pcs per month
Product Description
Fencing Arm Vehicle Barrier Gate IP44 Access Control 140W Parking Management
Product Overview
This 2nd generation DC brushless motor barrier gate incorporates advanced mold design technology, precision die-casting manufacturing, and brushless speed control technology. Designed for quick interchangeability without clutch mechanisms, it offers enhanced reliability and user convenience. The movement system utilizes two-stage worm gear transmission with a curved crank arm three-link structure, ensuring fast and stable boom operation. Easy maintenance and extended service life make this an ideal solution for parking management systems.
Technical Parameters
  • Working temperature (motor): -35℃ to +85℃
  • Rated voltage: DC24V
  • Running speed: 1.5s-6s
  • Rated current: 8.58A
  • Rated power: 140W
  • No-load speed: 1850rpm
  • Rated speed: 1400rpm
  • Output Power: 56.8N.m
  • Relative humidity: ≤90%
  • Remote control distance: ≤100M (open area)
  • IP Degree: IP44
  • Maximum arm length: 6M
Fencing Arm Vehicle Barrier Gate IP44 Access Control 140W Parking Management 0
Functions & Features
  • Adjustable running speed from 1.5s to 8s
  • Quick interchange capability
  • Manual operation via motor wheel during power outages with automatic reset
  • Curved crank arm three-link movement structure for stable operation
  • Wireless remote control for open/close functions
  • Auto reverse function with adjustable force
  • Infrared photocells connector compatibility
  • Loop detector connector availability
  • Seamless integration with car parking systems via wire control
  • Traffic light connector support (AC220V, power less than 40W)
  • Dry contact signal output for parking systems (COM, NC, NO)
  • Adjustable auto-delay when closing
  • Built-in RS485 or CAN network communication interface
  • Counting interface for traffic monitoring
  • 24V backup battery interface with solar charging capability
Technical Specifications
Working Temperature -35℃ to +65℃
Power Supply DC24V
Open/Close Speed 1.5 Sec to 6 sec (adjustable)
Rated Current 8.58A
Rated Power 160W
Motor No-load Speed 1850rpm
Rated Rotating Speed 1400rpm
Output torque 56.8N.m
Humidity ≤90%
Remote Control Distance ≤100m (open, sunny weather)
Protection Grade IP44
Max Boom Length 6M
Package Contents
  • 1 Vehicle Barrier gate unit
  • 1 Arm boom (customizable from 1m to 6m)
  • 1 Control panel (built inside)
  • 2 Remote controllers
  • 1 Push button
  • 1 Instruction manual
Service & Support
Free Services:
  • One year free service (excluding the arm)
  • Lifetime charged service availability
  • Technical support services
  • OEM customization for machine case, color, and logo
  • Long-term technical support and after-sales service
  • Negotiable pricing for large order quantities
Charged Services:
  • Damage from improper installation
  • Damage from incorrect voltage
  • Surface damage from improper usage
  • Services beyond warranty period
Product Maintenance
  • Keep the barrier gate clean and free from debris
  • Monthly inspection of joints for loose parts
  • Spring elasticity check after 3000 operation cycles
  • Bi-annual inspection and replacement of wear parts (spring, limit switch)
  • Note: Remote control performance may be affected by obstructions, battery life, or extreme weather
Packing List
Name Specification Quantity Unit Note
Hexagon screw M12*70 2 Piece Fixing the boom
Boom press board 1 piece
Mounting batten 2 piece Fixing the case
Expansion bolt M16*150 4 unit Fixing the case
Case Key 2 unit
Remote controller 2 unit
Instruction 1 piece
Request for Quote Process
What's the order process?
Follow these steps to complete your order:
  1. Inquiry: Provide detailed requirements for product recommendations
  2. Quotation: Official pricing with clear specifications
  3. Invoice: Issued upon quotation confirmation
  4. Payment: Full payment required upon invoice issuance
  5. Production: Approximately 10-20 working days for bulk orders
  6. Delivery: Options include sea, air, or courier with packaging documentation
