DC24V Advertising Parking Barrier Gate 10s Adjustable Auto Reversing
  • DC24V Advertising Parking Barrier Gate 10s Adjustable Auto Reversing
  • DC24V Advertising Parking Barrier Gate 10s Adjustable Auto Reversing
  • DC24V Advertising Parking Barrier Gate 10s Adjustable Auto Reversing
DC24V Advertising Parking Barrier Gate 10s Adjustable Auto Reversing

DC24V Advertising Parking Barrier Gate 10s Adjustable Auto Reversing

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BGA1
Product Details
Running Speed:
3s To 8s
Motor Type:
DC Brushless
Arm Type:
Advertising Arm
Housing Material:
1.5mm Cold Roller Steel Plate
Rated Voltage:
DC 24V
Max Boom Lenght:
4.5 Meters
Highlight:

DC24V Advertising Parking Barrier Gate

,

10s Adjustable Parking Barrier Gate

,

Auto Reversing Parking Entrance Barrier

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, , D/A, L/C, D/P
Supply Ability
1,000pcs per month
Product Description

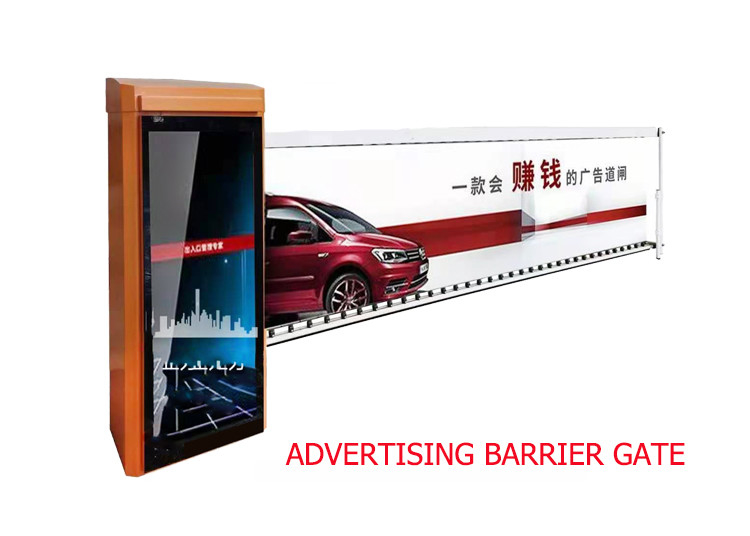

DC24V Advertising Parking Barrier Gate
Professional 10-second adjustable auto-reversing barrier gate system for commercial parking entrances
Key Features & Functions
  • Adjustable open/close time: 3-10 seconds
  • Automatic system self-check with LED status display
  • Programmable LED lighting with time switch control
  • Heavy-duty construction with 5 tension spring balance system
  • Manual operation capability during power failure
  • Wireless remote control operation
  • Vehicle safety protection with auto-reversing on obstacle detection
  • Simple, robust housing design
  • Anti-condensation technology for cold climate operation
Arm Specifications & Operation Times
Arm Type Arm Length (L) Operation Time (S) Center Height (H)
Advertising Arm 4.5m 8S H=1.04M (Height of arm center above ground)
Standard Arm 3.8m 6S Standard height
Compact Arm 3m 4S Standard height
DC24V Advertising Parking Barrier Gate 10s Adjustable Auto Reversing 0
Technical Parameters
  • Working temperature (motor): -35℃ to +85℃
  • Rated voltage: DC24V
  • Running speed: 3-10 seconds adjustable
  • Rated current: 9.5A
  • Rated power: 250W
  • No-load speed: 2500rpm
  • Rated speed: 1800rpm
  • Output power: 120N.m
  • Relative humidity: ≤90%
  • Remote control distance: ≤100M (open area)
  • IP rating: IP44
  • Maximum arm length: 4.5M
Product Advantages
  • 3-8 second adjustable open/close timing
  • DC brushless advertising motor with 5 million MCBF
  • 5-tension spring balance for heavy-duty durability
  • LED lights with programmable time switch
  • Simplified design for easy installation and maintenance
  • Fast delivery: 3-5 days for small orders
  • OEM branding, logos, and labels available
  • 1-year standard warranty with excellent after-sales service
  • 24/7 customer support
Product Specifications
Item Value
Place of Origin China
Power Supply DC24V
Brand Name SINOMATIC
Model Number DC Advertising Gate Barrier
MCBF 5 Million Cycles
Boom Length Max 4.5 meters
Vehicle Safety Auto-reversing on obstacle
Open/Close Time 3-8 seconds adjustable
Working Temperature -35℃ to +85℃
Motor DC Brushless Advertising Motor
Protection Grade IP44
Housing Color Grey, Orange or Customized
Certification CE ISO
Packaging & Contents
Packed in bubble wrap with reinforced carton outer packaging for secure shipping.
Name Specifications Quantity Remarks
Machine Core Good in working 1 Main part
Barrier Arm Straight, folding or fence arm 1 Optional
Boom Press Board - 1 Fixing the boom
Self-tapping Screw ST4*16 - Fixing the boom
Self-tapping Screw ST3*10 4 Fixing the boom
Supporting Pole - 1 Supporting the boom
Expansion Bolt M16*150 4 Fixing the case
Hexagonal Inner Screw M8*35 4 Fixing the case
Clutch Key - 1 Clutch device
Case Key - 2 For case and cover locking
Balance Spring According to arm length 1 For spare usage
Remote Emitter ≤30m range 1 For remote control
Remote Control Handles ≤30m range 2 For remote control
Instruction Manual English 1 For reference
RS485 Interface - 1 Optional
Disc - 1 Optional
Communication Module - 1 Optional
Cover Head - 1 3 years without fading
Expansion Nut M8 4 Fixing the supporting pole
