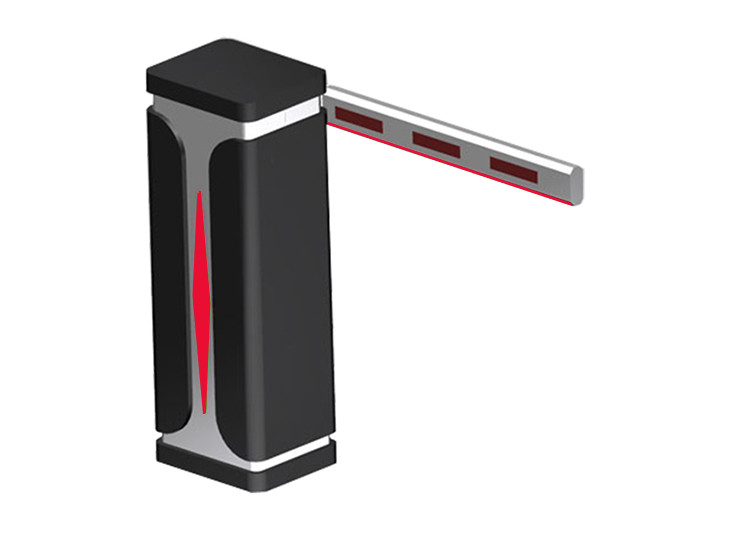

Speed Adjustable 24VDC Motor Boom Barrier Gate 200W Parking Lot
0.6 to 6 Second Speed Adjustable Parking Lot 24V DC Servo Motor Boom Barrier Gate
Boom barrier gates, also known as boom barriers, are pivoted bars or poles designed to block vehicle access through controlled points. The boom tip rises in a vertical arc to a near-vertical position when opening. These gates are often paired either end-to-end or offset appropriately to block traffic in both directions.
The S10 DC Brushless motorized barrier gates feature newly designed, maintenance-free construction with an exclusive MicroDrive unit that offers 100% more torque and 100% duty cycle. These are the fastest toll barriers available with opening times as fast as 0.6 seconds, adjustable from 0.6s to 6s or more.
This barrier redefines performance in non-stop toll applications, providing an ideal solution for high-frequency toll stations with exceptional reliability, sustainability, and comprehensive functionality.
Key Technical Specifications
- Working temperature (motor): -35°C to +85°C
- Working Power: 220V±10%, 110V ±10%
- Motor Rated Power: 100/200W MAX
- Humidity: ≤90% RH
- Distance of remote control: L≥30M
- Insulation Grade: F
Advanced Features
No Sensor & Limit Switch
Innovative design eliminates the need for sensors and limit switches. All control is handled precisely by the SFMCU drive unit with only four main components: mechanical, motor, control unit, and power supply.
Maintenance Free Operation
DC Brushless Servo motor eliminates carbon brush replacement requirements. Galvanized and powder-coated parts provide anti-rust protection for long-term usage with minimal maintenance needs.
24/7 Continuous Operation
Smooth and quiet motorized drive mechanism ensures stable opening and closing operations, offering maximum reliability at fast speeds for non-stop 24/7 usage.
Speed Adjustable
DC servo barrier gate allows customizable opening and closing speeds according to requirements. Shorter arms enable faster speed settings.
Auto-Reverse Safety Function
When the arm encounters obstacles during descent, it automatically reverses to prevent damage.
Multiple Interface Options
- Wire Control Signal Input (open, close, stop)
- Infrared Photocells
- Loop Detector
- R&G Light signal (Up & Down Limit signal output optional)
- Counting functionality
- Arm Presence Detection (Optional)
- RS485 Communication (Optional)
- Additional interfaces available upon request
Easy Integration
Compatible with access readers, push buttons, or remote controllers via simple dry contact signals. Features automatic closing after delay timer elapses.
User Friendly Design
Motorized arms provide comfortable passage while maintaining high-level car flow management for toll gates and high-density traffic areas.
Auto-Recovery Function
Manual lifting capability during power outages allows free exit. Automatic return to closed position when power is restored.
Auto Testing Mode
Control board includes configurable auto testing mode for system verification.
Product Specifications
| Max Straight Arm |
2.5M |
3M |
4.5M |
6M |
| Opening time |
0.6S |
0.9S |
1S~3S |
2S~5S |
| Speed range |
0.6S ~ 6S |
| Motor rated power |
100W |
| Duty cycle |
100% |
| Supply voltage |
220V/110V ±10%, DC24V/12V |
| Frequency |
50Hz/60Hz |
| Drive system |
DC brush-less servo motor |
| Housing dimensions |
H1000*L360*W300mm |
| Weight (Without boom) |
45KGS |
| Protection rate |
IP 54 |
| Working temperature |
-35℃ to 70℃ |
Spring Selection & Adjustment
The barrier gate is factory-adjusted before delivery. If the boom needs to be shortened, spring balance must be readjusted to ensure smooth operation. Speed adjustments can be made when arms are lengthened or shortened.
