Bidirectional BLDC 30 Person / Min Drop Arm Turnstile Mifare Reader 24V
  • Bidirectional BLDC 30 Person / Min Drop Arm Turnstile Mifare Reader 24V
  • Bidirectional BLDC 30 Person / Min Drop Arm Turnstile Mifare Reader 24V
  • Bidirectional BLDC 30 Person / Min Drop Arm Turnstile Mifare Reader 24V

Bidirectional BLDC 30 Person / Min Drop Arm Turnstile Mifare Reader 24V

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-DAB02
Product Details
Power Supply:
Motor Type:
BLDC Motor
Motor Voltage:
Service Life:
At Least 5 Million Times
Flow Rate:
30 Person/minute
Control Signal:
High Light:

Bidirectional BLDC Drop Arm Turnstile


30 Person / Min Drop Arm Turnstile


Mifare Reader Drop Arm Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
500 pcs per month
Product Description

Bidirectional Access Mifare Card Reader BLDC Motor Drop Arm Turnstile



Drop Arm Turnstile is formed after bending the stainless steel plate. The shape is featured as pleasing appearance,

good looking, stainless and durable. The system is provided with a standard electric interface and is easily integrated

into the equipment with read/write facilities such as magnetic card, bar code card, ID card and IC card. As a result,

an orderly and civilized passage is provided for the personnel in and out, and illegal personnel can be barred.


At the same time, a special fire control interface is equipped in the system to meet the requirement of fire control

passage, so that a rapid down rod control may be realized in emergency for diverting passengers.




The equipment integration mechanical, electronic, microprocessor control of electronic ticket system, access control

attendance system, parking system, face recognition system, anti-static, fingerprint, palm, iris and other biometric

identification system integration and use.

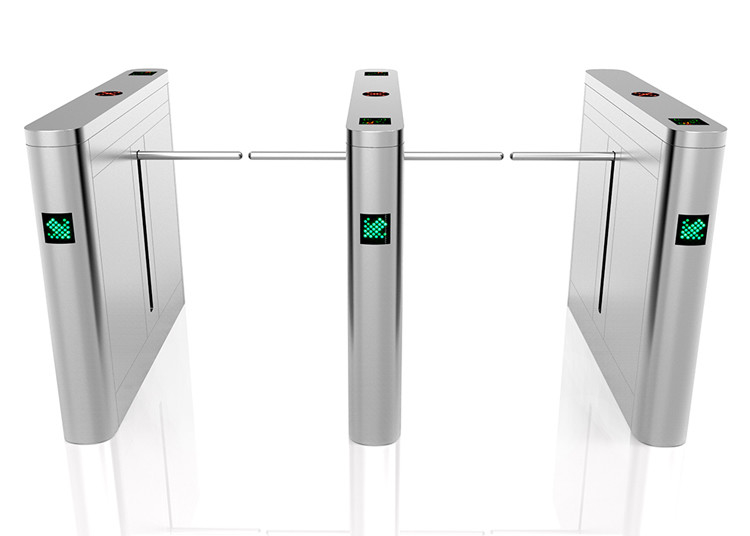

Bidirectional BLDC 30 Person / Min Drop Arm Turnstile Mifare Reader 24V 0


  • The whole system runs smoothly, low noise, no mechanical impact.
  • Self-test function, when power on, system restoration automatic.
  • Single directional or Bi-directional is selectable.
  • LED indicator.
  • Automatic reset function: when tripod turnstile receives an open single, but passenger do not pass through the hallway within a specific time (default 5s), turnstile arm will lock automatically.
  • When power off, the arm will drop down automatically, which is complying with fire safety requirements.



1. Power Supply: AC220V± 10V, 50Hz / AC110V± 10V, 60Hz
2. Power Consumption: 100W/24V
3. Temperature: -20 to 60 degrees
4. Humidity: < 95%, without concretion
5. Passage Width: < =600mm
6. Passing Speed: 40 persons/min (normal open), 30 persons/min (normal close)
7. Arm Open/Close Time: 1s
8. Input Interface: +12V electrical signal or impulse signal with width more than 100ms, drive current >10mA
9. Communication Interface: RS485 (Distance: < =1200m)


Description Parameters
Pass Speed 30 persons/min
Power supply AC220V/110V(±10%),50/60Hz
Drive Mode Motor drive
Max Power Consumption 100W
Humidity ≤90% No condensation
Noise ≤50dB
Service Life 5,000,000 cycles
Outside packing 1300*260*1160mm
Working Environment -20°C~+60°C
Gross Weight 70-80kg





1. Single/double walkway--controlled in one direction or both.

2. A valid lock action can allow one passage at one time.

3. Normally open--the machine will unlock when a valid signal is received.

4. It will lock automatically if passage through turnstile is not completed withinpreset time, the set time can be

adjusted via parameter change.

5. LED indicator light :green and red indicate the passing information.


6. Normal open and normal close can be controlled by external button.

7. Auto detect and reset function.

8. The system is equipped with step less position device and the operation process is controlled by sensors

without mechanical impact .

9. Digital-controlled (CNC) processing technology,fine surface treatment and corrosion resistance .

10. Standard external electric interface with photoelectric isolation enchance incorporateall kinds of control

equipments thus extremely convenient for system integration .

11. Remote control and setup .

12. Extended functions: counting, audible and visual alarm,fire alarm and linkage, Photoelectric Beam Detector.



1.What type of entry solutions do you carry?
We carry a full range of entry solutions including,tripod turnstile, full height turnstile,flap barrier swing gate and

speed gate etc.


2.Do you do customization?
Yes.we do customization with different sizes and different mechanics according to customer's needs


3.Are you a trading company?Do you only do assembly in house?
No.we are not trading company.Our factory manufactures most of the items including the simple housing till the

complicated mechanics.

4.Do you have inhouse engineering team?
Yes,we do have our inhouse engineeringteam which consist of R&D technical and software development team.


5.What type of access control comes with your machine?
Our machines can be tie with face ID fingerprint sensor,ID/IC card reader, QR code or bar code etc.
