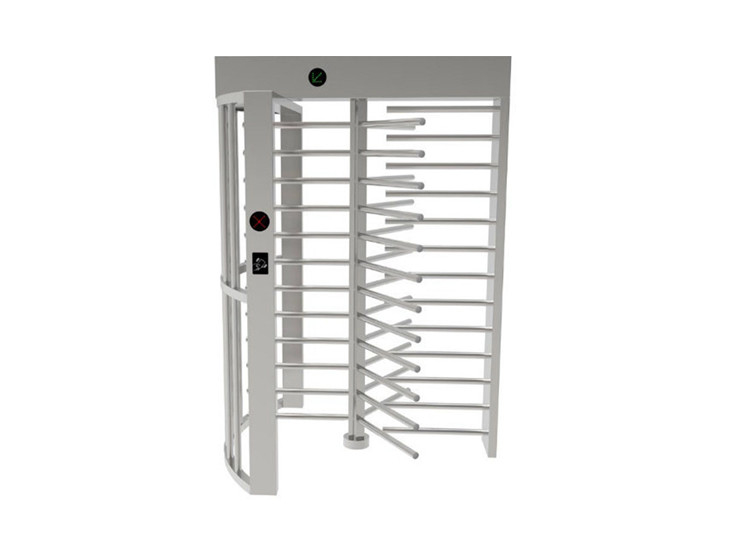

120° Rotors Recognition Counter Full Height Barrier 600mm Width

120° Rotors Or 90°Rotors Selectable Fingerprint Device Recognition Counter Available Full Height Barrier

PRODUCT DESCRIPTION

SINOMATIC Full height turnstile is designed to provide entry access control solutions in places that need high

security, such as prison, stadium and construction site.

It’s idea for both indoor and outdoor, as whole body is made of finished and brushed stainless steel(or painted

mild steel), which is waterproof, anti-corrosion and rigid.

There are LED lights at front on both top cover and body side to indicate entry is accepted or denied.
Arm is 120° rotors or 90°rotors for select.

The system is single-door type with single/bi-directional passage control. This model is stronger and with passage

width of about 600mm.

MAIN FUNCTION AND FEATURES

1. Long-life performance, high operation dependability and fast response

2. The mechanism is equipped with an automatic regulated hydraulic buffer device. Hardly any noise and impact

when running

3. Single directional or Bi-directional is selectable

4.Automatic reset function: turnstile arm will lock automatically within 5s (can be setting) if passenger delay to entry
Anti-tailing function: only one person passes at one time.

5.When power is off, arms will open automatically, which is complying with fire safety requirements.Fail secure

is optional.

6.LED indicator (red × means no entry; green → means entry)

7.Rainproof housing, anti-corrosion coating iron, 304 or 316 stainless steel.

8.Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and

reduce maintenance cost.

9.If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will

auto-rotate back to the current idle position.

10.Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed

lightly to rotate therefore even elderly or children are able to use the turnstile.

11.Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid

tampering.

12.Innovative and unique mounting surface ensures simple and convenient installation for system integrator.

13.Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc.

(Access controller needed)

14.Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically.

15.The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact

when running.

TECHNICIAL SPECIFICATIONS
