IP44 1800rpm Solar Parking Barrier Gate Brushless DC Motor RS485

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BGA1
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram, D/A, L/C, D/P
Supply Ability 1,000pcs per month
Product Details
IP Degree IP44 Motor DC Brushless Motor
Arm Type Advertising Arm Housing Material 1.5mm Cold Roller Steel Plate
Output Power 120N.m Rated Speed 1800rpm
High Light

IP44 Solar Parking Barrier Gate

,

1800rpm Solar Parking Barrier Gate

,

RS485 Access Control Barrier Gate

Leave a Message
Product Description

 Product Features



1 The running speed can be adjusted from 3sec to 10sec.

2 Open the barrier by motor wheel when power off.Automatically reset when power on.

3 Curved crank arm three-link movement structure,operation stable

4 Wireless remote control open and close.

5 Arm auto reverse( force adjustable)

6 Infrared photocell is available

7 Loop detector is available

8 Connect parking management system open, close signal.(request open and close signal)

9 Traffic light port(2A12V/220VAC, less than 40W traffic light can be used)

10 Offering limit signal for car parking management system( output COM/NO/NC)

11 Delay closing arm function

12 RS485 or CAN internet communication interface( no need to add module)

13 Counting interface

14 24V backup battery interface(can be connected with solar power)



Arm length speed comparison table



Menu

Parameter



Unit

Arm length

UP DOWN
H00-00 H00-02 H00-04 H00-01 H00-03 H00-05
4.5M 30 35 8 30 42 8
3.8M 35 35 8 35 42 8
3M 65 30 10 60 35 10

(the parameter is based on arm of our company)

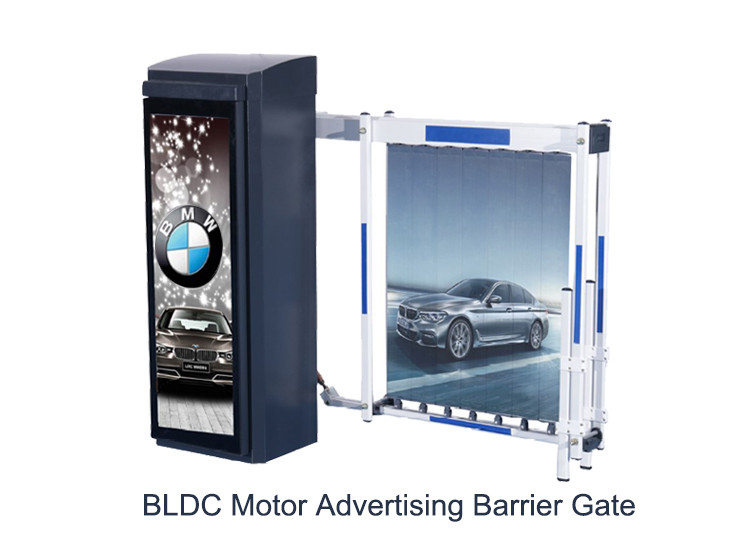

IP44 1800rpm Solar Parking Barrier Gate Brushless DC Motor RS485 0



Technical parameters



1 Working temperature(motor): -35℃~+85℃

2 Rated voltage:DC24V

3 Running speed:3s-10s

4 Rated current:9.5A

5 Rated power:250W

6 No-load speed:2500rpm

7 Rated speed:1800rpm

8 Output Power:120N.m

9 Relative humidity:≤90%

10 Remote control distance:≤100M(in the open place)

11 IP Degree:IP44

12 Max length of arm:4.5M



Product advantage



1. 3second to 8 second open/close time adjustable;



2. Advertising DC brushless motor & 5 million MCBF;



​3. 5tension spring balance makes is heavy duty and more durable;



​4.Led lights with time swtich ,set a time for light on as you require;


5. Simplified design, easy installation and maintenance reduces your labor cost;


6. Fast finishing time for you to become more competitive at your local market :3-5 days for small order;



7. OEM Brand, Logo, Label available;



8.1year standard warranty, excellent after-sales service;



9. 24h*7d at your service to give you best support;



PRODUCT SPECIFICATIONS



Name SINOMATIC DC Advertising Gate Barrier
Close/Open time 3s-10s adjustable
Arm Type Advertising Arm
Material

Cold roll plate, 2mm thickness sheet

3 years without rust, shedding and fading

Size 320*280*935 mm
Spring And Bearing more durable, 5 million times through operation testing
Rating Power 200w
Rating Voltage DC 24V
Remote Control Distance Usually more than 30 meters, if there is less obstacles, even 50 meters or more
Packing Size 1020*375*467mm , with seven layers carton case

inside with air bubble film for protection

G.W 50 KG
Delivery By Sea: big order(more than 100 sets), Cheap, suggested

By Air: small order(1-15 sets), quick and cheap, suggested

Payment Sample: full payment

Order: usually 40% advance deposite, balance before shipment

Advantages 1. Professional Manfacturer for more than 10 years

2. Mould Production, High Accuracy

3. Heat Treatment, more durable than normal

4. Better Service from Professional Work Team

Application SINOMATIC Advertising Barrier Gate provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle while making profit, for parking lot, shopping center, exhibition center, hospitals,airport ,residential,shopping center,et





PACKAGE



Packed in bubble wrap firstly, and then reinforced with carton for outer packing.



Packing list
Name Specifications Quantity Remarks
Machine core Good in working 1 Main part
Barrier arm Straight, folding or fence arm 1 Optional
Boom press board   1 Fixing the boom
Self-tapoing screw ST4*16 Fixing the boom
Self-tapoing screw st3*10 4 Fixing the boom
Supporting pole   1 Fupporting the boom
Expanion bolt M16*150 4 Fixing the case
Hexagonal Inner Screw M8*35 4 fixing the case
Clutch key   1 clutch device
Case Key   2 for case and cover locking
Balance spring According to length of barrier arm 1 for sapre usage
Remote emitter less than 30m is available 1 For remote control
Remote conrol handles less than 30m is available 2 For remote control
Instruction in English 1 For reference
RS485 interface   1 Optional
Disc   1 Optional
Communication Mould   1 Optional
Cover head   1 3 years without fading
Expanion nut M8 4 Fixing the supporting pole
