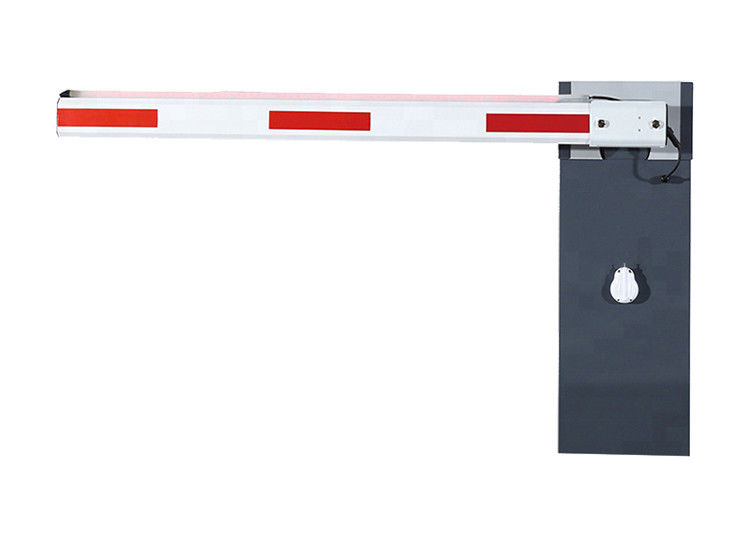

3m Boom Parking Barrier Gate with Reverse Back Function and Powder Coating
  • 3m Boom Parking Barrier Gate with Reverse Back Function and Powder Coating
  • 3m Boom Parking Barrier Gate with Reverse Back Function and Powder Coating
  • 3m Boom Parking Barrier Gate with Reverse Back Function and Powder Coating
3m Boom Parking Barrier Gate with Reverse Back Function and Powder Coating

3m Boom Parking Barrier Gate with Reverse Back Function and Powder Coating

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BG101
Product Details
Surface Finish:
Powder Coating
Boom Length:
3m To 6m(default)
Voltage:
220V/110V
Application:
Parking Lot
Remote Control Distance:
No Less Than 30 Meters
Warranty:
12 Months
Highlight:

3m Boom Parking Barrier Gate

,

2 Fencing Parking Barrier Gate

,

Reverse Back Retractable Flap Barrier

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, , D/A, L/C, D/P
Supply Ability
3,000pcs per month
Product Description
2 Fencing 3m Boom Parking Barrier Gate With Reverse Back
Auto Parking Security Parking Lock Entrance Barrier Gate With Reverse Back Function
Barrier Gate Features
  • Intelligent: Auto-detect opening and closing positions with high accuracy using mechanical and electrical limit detectors. Special inner working design and smart motor ensure swift, smooth arm movement to reduce bouncing.
  • Durable: Extension spring is more durable than compressed spring for heavy-duty continuous operation. AC motor supports long-lasting performance with cooling fan processor to reduce working temperature.
  • Safe: Arm reverses automatically when encountering obstacles. Optional rubber arm prevents damage upon contact. Additional photobeam provides extra safety assurance.
  • User-friendly: Pre-installed interfaces for photocell, loop detector, arm light, and other accessories.
Barrier Gate Applications
The SN-BG10X series barrier gate incorporates the latest automatic technology and intelligent design. Advanced features include humanized clutch devices and balance mechanisms for enhanced safety and convenience. Suitable for both indoor and outdoor applications including parking lots, toll gates, goods yards, railway crossings, commercial premises, apartment blocks, shopping malls, hospitals, stadiums, and business centers.
BG10X Barrier Gate Advantages
  • Accurate and safe operation
  • Reverse on obstacle detection
  • Anodized aluminum boom
  • Adjustable slow down speed
  • Compact control unit
  • Versatile configuration options
  • Silent and smooth operations
  • Automatic fault detection
  • Rapid openings and intensive use capability
  • Break away arm mechanism available
Technical Specifications
Model IBG-101
Working Temperature -35℃~75℃
Power 120W
Motor Voltage 220V±10%, 110V±10%
Frequency 50/60HZ
Protection Grade IP44
Boom Weight 3-9Kg
Boom Dimension 45*80mm/45*100mm
Max Boom Length 3-6m
Boom Type Straight/90°folding/180°folding/2 fencing/3 fencing
Running Time 1.5-6sec
Model, Speed, Boom Length and Boom Type
Model No. Open/Close Speed Max Boom Length Boom Type
BG101-16 6 seconds 6m Straight boom
BG101-13 3 seconds 4.5m Straight boom
BG101-11 1 second 3m Straight boom
BG101-26 6 seconds 5m 90 degree, Articulated boom
BG101-23 3 seconds 3m 90 degree, Articulated boom
BG101-36 6 seconds 5m 180 degree, Articulated boom
BG101-33 3 seconds 3m 180 degree, Articulated boom
BG101-46 6 seconds 4.5m Two-level, fence boom
BG101-56 6 seconds 4m Three-level, fence boom
Packaging Details
Size 102 (L) * 37(W) * 47 (D)
Gross Weight 60 KG
Packaging Details The normal package is paper carton (Size: 102*37*47 cm). Wooden box or pallet are available (additional charge required)
Our Service
Payment Term Lead Time Minimum Order Supply Ability Package
T/T; West Union 5-7 working days 1 Unit 1,000 Unit/Month Carton or Wooden Box
Frequently Asked Questions
What's the monthly production capacity for barrier gate?
1,000 units
Sometimes, why does the barrier boom open automatically?
Please check if the limit switch is in the correct position; if not, adjust the Limit Switch according to the Barrier Gate Manual. You can also adjust the adjusting screw. Finally, check the spring intensity.
What's the remote control distance?
Most 418 remote controls cover up to 100 meters, but for safe and stable operation, we recommend using the remote control within 30-50 meters.
