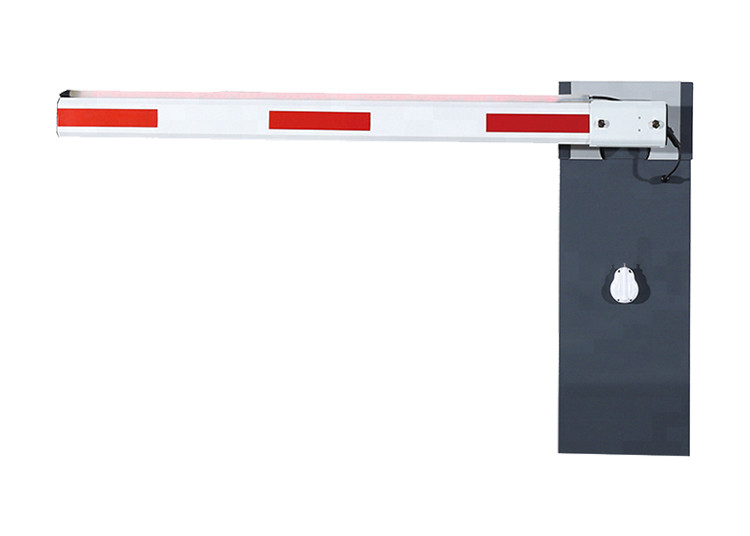

2 Fencing 3m Boom Parking Barrier Gate With Reverse Back
Place of Origin | Shenzhen, China. |
---|---|
Brand Name | SINOMATIC |
Certification | CE/ ISO |
Model Number | SN-BG101 |
Minimum Order Quantity | Sample order accepted |
Price | negotiable |
Packaging Details | Carton/Plywood box/Pallet |
Delivery Time | 5-10 working days after payment received |
Payment Terms | T/T, Western Union, MoneyGram, D/A, L/C, D/P |
Supply Ability | 3,000pcs per month |
Surface Finish | Powder Coating | Boom Length | 3m To 6m(default) |
---|---|---|---|
Voltage | 220V/110V | Application | Parking Lot |
Remote Control Distance | No Less Than 30 Meters | Warranty | 12 Months |
High Light | 3m Boom Parking Barrier Gate,2 Fencing Parking Barrier Gate,Reverse Back Retractable Flap Barrier |
Auto Parking Security Parking Lock Entrance Barrier Gate With Reverse Back Function
Barrier Gate Features:
- Intelligent.Auto-detect opening and a closing position in high accuracy by both mechanical and electrical limit detector. Combination of special inner working design and smart motor ensures swift and smooth arm movement in falling and lifting to reduce bouching.
- Durable: Extension spring is more durable than compressed spring in the heavy-duty site where barrier gate will open and close continuously.AC motor can support long-lasting working of barrier gates. Cooling Fan processor is for decreasing working temperature.
- Safe: Arm will be reverse back when it meets any obstacle in its movement. Optional rubber arm can avoid any damage when arm touches anything. Additional photobeam further ensures safety.
- User-friendly: Interfaces for photocell, loop detector, arm light, etc are reserved.
BARRIER GATE APPLICATION
The SN-BG10X serial barrier gate, which manufactured by our company, adopt the latest automatic technology and intelligent design ahead in this field. Meanwhile our barrier gates have the advanced design, such as humanization clutch device, balance device(e.g), which makes our barrier gate work more safely and conveniently. This barrier gate is suitable for indoor as well as outdoor parking area, Parking lots, toll gate, goods yard, railway crossing, commercial premises, apartment block access shopping malls, hospitals, stadiums, business centers,etc.
BG10X BARRIER GATE ADVANTAGES
- Accurate and safe Operation
- Reverse on Obstacle detection
- Anodized aluminum boom
- Slow down speed adjustable
- Compact control unit
- Versatile configuration options
- Silent and Smooth Operations
- Automatic Fault Detection
- Rapid openings and intensive use
- Break Away Arm mechanism available
TECHNICIAL SPECIFICATIONS
Model | IBG-101 |
Working Temperature | -35℃~75℃ |
Power | 120W |
Motor Voltage | 220V±10%,110±10% |
Frequency | 50/60HZ |
Protection Grade | IP44 |
Boom Weight | 3-9Kg |
Boom Dimension | 45*80mm/45*100mm |
Max Boom Length | 3-6m |
Boom Type | Straight/90°folding/180°folding/2 fencing/3 fencing |
Running Time | 1.5-6sec |
MODEL, SPEED, BOOM LENGHT AND BOOM TYPE
Model No. | Open/Close Speed | Max Boom Length | Boom Type |
BG101-16 | 6 seconds | 6m | straight boom |
BG101-13 | 3 seconds | 4.5m | straight boom |
BG101-11 | 1 seconds | 3m | straight boom |
BG101-26 | 6 seconds | 5m | 90 degree, Articulated boom |
BG101-23 | 3 seconds | 3m | 90 degree, Articulated boom |
BG101-36 | 6 seconds | 5m | 180 degree, Articulated boom |
BG101-33 | 3 seconds | 3m | 180 degree, Articulated boom |
BG101-46 | 6 seconds | 4.5m | Two-level, fence boom |
BG101-56 | 6 seconds | 4m | Three-level, fence boom |
TECHNICIAL SPECIFICATION
Packaging
Size | 102 (L) * 37(W) * 47 (D) |
Gross Weight | 60 KG |
Packaging Details | The normal package is paper carton (Size: 102*37*47 cm). Wooden box or pallet are available (need to charge) |
Our Service
Pyment Term | Leading Time | Minimum Order | Supply Ability | Package |
T/T; West Union | 5-7 working days | 1 Unit | 1,000 Unit/ Month | Carton or Wooden Box |
FAQ:
Q: What's the monthly production capacity for barrier gate?
A: 1000 units.
Q: Sometimes, Why the barrier boom would open automatically?
A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.
Q: What’s the remote control distance?
A: In general, most of 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WE recommends using the remote control within 30 meters or 50 meters.
