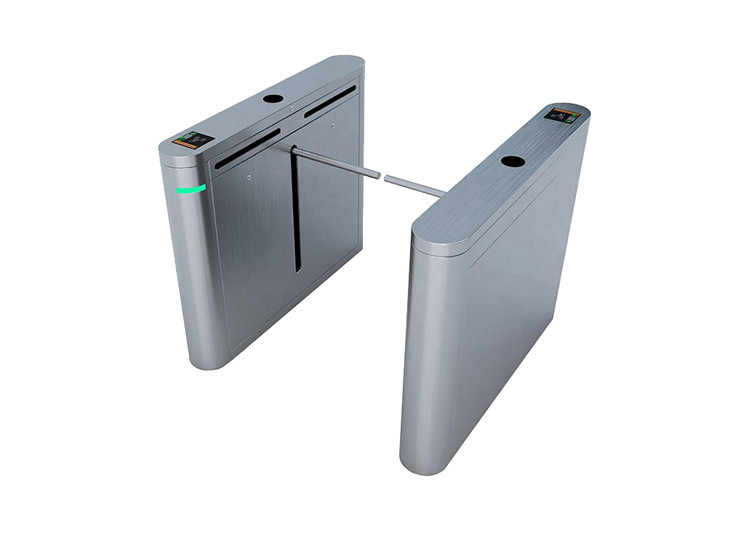

High Transit 40W SS304 One Arm Turnstile Gate Brushless DC
| Place of Origin | Shenzhen, China. |
|---|---|
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-DAB02 |
| Minimum Order Quantity | Sample order accepted |
| Price | negotiable |
| Packaging Details | Carton/Plywood box/Pallet |
| Delivery Time | 5-10 working days after payment received |
| Payment Terms | T/T or western Union |
| Supply Ability | 500 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Arm Type | Sinlge Arm | Arm Material | SS304 |
|---|---|---|---|
| Arm Lenght | 500mm | Power Supply | AC 220V/110V ±10% |
| Motor Type | Brushless DC Motor | Motor Voltage | 24V |
| High Light | SS304 One Arm Turnstile Gate,40W One Arm Turnstile Gate,Brushless DC Waist Height Turnstile |
||
Product Description
25-35 Persons Per Minute High Transit Speed One Arm Turnstile Gate
Drop arm channel gate/drop arm tripod turnstile
The one arm barrier is mainly for people in large places to implement the entrance and exit control management of high-tech products,
Its appearance with GB stainless steel profiles, fine craft, full-featured, small appearance, rust, durable, able to resist external damage,
The equipment integration mechanical, electronic, microprocessor control of electronic ticket system, access control attendance system, parking
system, face recognition system, anti-static, fingerprint, palm, iris and other biometric identification system integration and use.
ABOUT DROP ARM TURNSTILE FUNCTIONS AND FEATURES
1.Single/double walkway--controlled in one direction or both.
2.A valid lock action can allow one passage at one time.
3.Normally open--the machine will unlock when a valid signal is received.
4.It will lock automatically if passage through turnstile is not completed withinpreset time, the set time can be adjusted via
parameter change.
5.LED indicator light :green and red indicate the passing information.
6.Normal open and normal close can be controlled by external button.
7.Auto detect and reset function.
8.The system is equipped with step less position device and the operation process is controlled by sensors without mechanical impact .
9.Digital-controlled (CNC) processing technology,fine surface treatment and corrosion resistance .
10.Standard external electric interface with photoelectric isolation enchance incorporateall kinds of control equipments thus extremely convenient for system integration .
11.Remote control and setup .
12.Extended functions: counting, audible and visual alarm,fire alarm and linkage, Photoelectric Beam Detector.
PRUDUCT PHOTO
TECHNICAL PARAMETERS
|
Power supply
|
AC100V~240V, 50Hz,60Hz
|
|
Power consumption
|
40W
|
|
Access device input voltage
|
Dry contact or 12V electrical level signal or > 100ms 12V impulse signal,
driving current > 10mA
|
|
Max flow rate
|
30 to 40 person per minute
|
| Housing dimension | 1200x150x1000mm |
|
Arm length
|
300 to 500mm
|
|
Working temperature
|
-20°C~+60°C
|
|
Current
|
3A
|
|
Control circuit
|
DC24
|
|
Working humidity
|
0~95%RH
|
|
Time of opening or closing
|
less than 2S
|
| Service life | 5 million times |
PRODUCT APPLICATION
● Station, dock, site, school, supermarket entrance control management
● Exhibition center, swimming pool, tourist attractions and other ticket entrance and exit control management
● Enterprises and institutions attendance, access control, consumption entrance and exit control management
● Special channel access control
