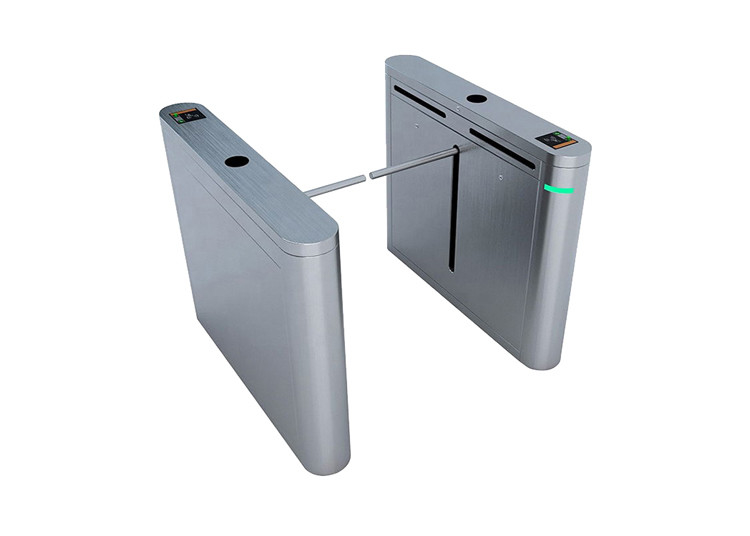

Brushless DC Drop Arm Mechanical Turnstile Gate Wheelchair 100W
Place of Origin | Shenzhen, China. |
---|---|
Brand Name | SINOMATIC |
Certification | CE/ ISO |
Model Number | SN-DAB02 |
Minimum Order Quantity | Sample order accepted |
Price | negotiable |
Packaging Details | Carton/Plywood box/Pallet |
Delivery Time | 5-10 working days after payment received |
Payment Terms | T/T or western Union |
Supply Ability | 500 pcs per month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xArm Lenght | 300 To 500mm | Passing Rate | 30 Person Per Minute |
---|---|---|---|
Lane Width | 550 Mm Single Unit | Power Supply | AC 220V/110V ±10% |
Motor Type | Brushless DC Motor | Motor Voltage | 24V |
High Light | Drop Arm Mechanical Turnstile Gate,Brushless DC Mechanical Turnstile Gate,100W Wheelchair Access Control Turnstile |
Disabled Wheelchair Access Control Drop Arm Mechanical Turnstile Gate
ABOUT DROP ARM TURNSTILE
Drop Arm Turnstile is formed after bending the stainless steel plate. The shape is featured as pleasing appearance, good looking, stainless and
durable.
The system is provided with a standard electric interface and is easily integrated into the equipment with read/write facilities such as magnetic
card, bar code card, ID card and IC card. As a result, an orderly and civilized passage is provided for the personnel in and out, and illegal
personnel can be barred. At the same time, a special fire control interface is equipped in the system to meet the requirement of fire control
passage, so that a rapid down rod control may be realized in emergency for diverting passengers.
PRUDUCT PHOTO
PRODUCT SPECIFICATIONS
1.Can be linked with a variety of control equipments, receiving the signal of relay switch .
2.Double protections of Mechanical and infrared anti-pinch function.providing more reliable and safer passing.
3.Multi alarm modes:illegal intrusion, anti-intrusion, anti-follow, overtime alarm etc.
4.Anti-rush function,Anti-Reverse,anti-intrusion, anti-follow.
5.LED indicator light :green and red indicate the passing information.
6.Normal open and normal close can be controlled by external button.
7.Auto detect and reset function.
8.Gate auto open when power is off to meet the fire protection requirements.
9.Drop arm turnstile Can be linked with a variety of control equipments, receiving the signal of relay switch.
10.Drop arm turnstile can be uni-directional or bi-directional control.
11.Flexible code dialing settings, having about dozens types performance for your selection.
12.Impact resistant, without receiving the open signal, turnstile arm locks automatically.
13.High adaptability for environment, and good ability for self-protection.Can work properly under all kinds of harsh environment, strong ego-
protect ability, can adapt to the weak current short circuit, glare, fog rain and snow, the typhoon weather and climate chang
TECHNICAL PARAMETERS
Power supply
|
AC220±10%V 50Hz/AC110±10% 60Hz
|
Power consumption
|
100W
|
Access device input voltage
|
Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
|
Max flow rate
|
30 to 40 person per minute
|
Housing dimension | 1200x150x1000mm |
Arm length
|
300 to 500mm
|
Working temperature
|
-20°C~+60°C
|
Current
|
3A
|
Control circuit
|
DC24
|
Working humidity
|
0~95%RH
|
Time of opening or closing
|
less than 2S
|
Normal life | 5 million times |
PRODUCT APPLICATION
● Station, dock, site, school, supermarket entrance control management
● Exhibition center, swimming pool, tourist attractions and other ticket entrance and exit control management
● Enterprises and institutions attendance, access control, consumption entrance and exit control management
● Special channel access control
