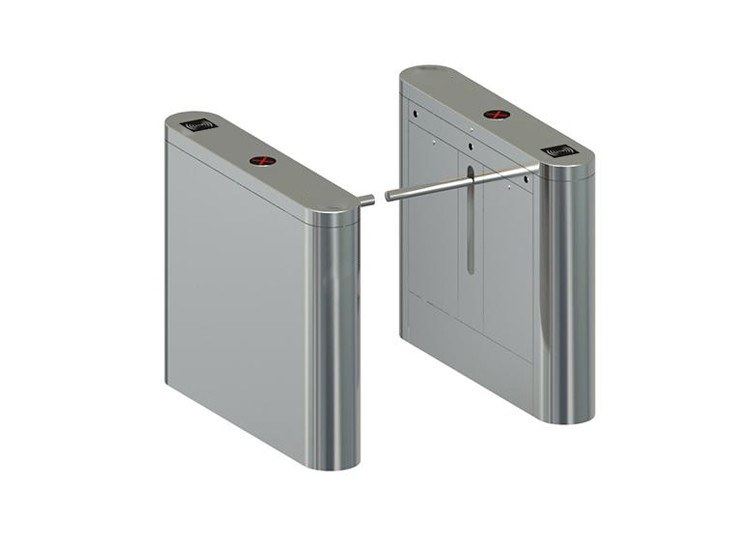

Infrared Sensor Public Security Door Access Control System Drop Arm Turnstile Gate
1) Alarm function: when arms are pushed by force illegally, alarm will be triggered automatically and arms will be set locked.
2) Turnstile can set the working condition by press the button of main control board.
3) Anti-pinch function: turnstile have Mechanical / infrared induction Anti-pinch functions (when it is meet the hinder during the reset time, the electrical machine closed work automatically in specified time, the turnstile will default the delayed and reset again till reset succeed), small intensity (≤2Kg).
4) The turnstile will close the door when somebody enter the gate illegal, Tailgating or break into negative direction gate.
5)Before received the open signal, the turnstile will lock automatically.
6) Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you). Totally meet the fire protection needs.
7)Infrared sensor reset, infrared induction anti-pinch function (3 or 5 infrared optional). The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on.
Drop Arm Turnstile is formed after bending the stainless steel plate. The shape is featured as pleasing appearance, good looking, stainless and durable. The system is provided with a standard electric interface and is easily integrated into the equipment with read/write facilities such as magnetic card, bar code card, ID card and IC card. As a result, an orderly and civilized passage is provided for the personnel in and out, and illegal personnel can be barred. At the same time, a special fire control interface is equipped in the system to meet the requirement of fire control passage, so that a rapid down rod control may be realized in emergency for diverting passengers.
Drop Arm Turnstile ---can be compatible with IC card , ID card ,barcode card , fingerprint reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff . Can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.
AC220±10%V 50Hz/AC110±10% 60Hz
Access device input voltage
Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Max flow rate
30 to 40 person per minute
300 to 500mm
Time of opening or closing
less than 2S
|5 million times
1.Easy operation and convenient maintenance with functions of breakdown self check and alarm.
2.Flexible code dialing settings, having about dozens types performance for your selection.
3.Infrared and mechanical anti-clamping provide double protection. When a sudden impact force is applied during system reset, the turnstile will automatic stop or rebound, sending out alarm signal at the same time.
4.Various alarm patterns, including illegal intrusion, reverse passing , anti-trailing and overtime passing alarm etc.
5.Impact resistant, without receiving the open signal, turnstile arm locks automatically.
6.Anti-reverse passing, when somebody attempt to passing reversely, the wing quickly shuts at the same time alarms.
7.High brightness access indicator light and its humanized prompt function, make the passageway more characteristic.
8.Adjustable for modes of normal open and normal close ,can easily be achieved through code-dialing or external manual button controlling.
9.Automatic detection and reset function: System will automatically cancel the access permissions when no objects passing is detected within the prescribed period of time (adjustable).
10.The turnstile opens automatically to evacuate people in the event of an emergency, such as fire, power failure, etc.
11.Can be linked with a variety of control equipments, receiving the signal of relay switch .
12.Diversify passageway modes, can be one-way or two-way passing or one-way controlled, reverse free passage.
13.Strong environment adapting ability , Turnstile cam be installed in any harsh environments, with strong ego protecting ability. such as weak current, short circuit, glare, fog rain and snow weather, typhoon or other environmental change.
Fields of Application
● Station, dock, site, school, supermarket entrance control management
● Exhibition center, swimming pool, tourist attractions and other ticket entrance and exit control management
● Enterprises and institutions attendance, access control, consumption entrance and exit control management
● Special channel access control
