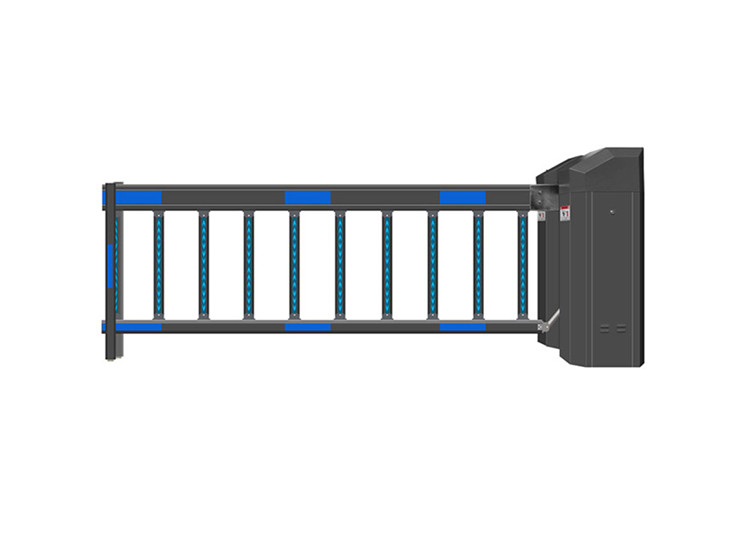

Body Height 6m Arm IP44 Automatic Barrier Systems 250W

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-ABBG01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Box Weight About 110kg Box Dimension 457*686*1275mm
IP Rate IP44 Arm Lenght Max 6m
Arm Type Fencing Product Life 5 Million Times
High Light

IP44 Automatic Barrier Systems


6m Arm Automatic Barrier Systems


250W Body Height Barrier Gate

Leave a Message
Product Description

High-Power Relay Control Motor Overheating Protection Body Height Automatic Barrier Systems


Working Principle

The mechanical power is driven by the motor through the turbo worm reducer to drive the output shaft, and the motion is transmitted to the lever through the planar four-bar mechanism, and the magnetic sensor switch is used to accurately position the horizontal and vertical positions of the brake lever during operation, so as to achieve Control of the brake lever. (For details, see illustration)


PRODUCT Movement characteristics


1. The most stable non-constant speed operating mechanism is adopted to make the brake lever start slowly, run fast, and stop slowly, so as to eliminate the jitters caused by the brake lever during operation opening and closing. Extend the product life.


2. The use of high-bearing load-bearing bearing with seat makes the movement part more stable


3. Adjustable mechanical limit makes installation and commissioning more convenient and fast


4. Adopt high-sensitivity limit switch, instantly control the starting and falling rods in place accurately


5. Integrated turbine worm drive deceleration asynchronous motor, stable transmission, low noise, compact structure, can achieve self-locking


6. The motor is equipped with an intelligent overheating protection system, which controls the temperature rise of the motor under frequent use, making the motor not easy to burn out


7. Manual opening mechanism, the brake lever can be automatically lifted and lowered by the motor hand wheel during power failure, without restriction






Power input AC220/AC110 50/60HZ
Rated power 250W
Opening/Closing time 9s
Box weight 110kg
Box dimension 457*686*1275mm
Pretection grade IP44
Boom length 1m to 6m
Boom height 1168mm
Remote distance ≤30m
Working temperature -30℃~+80℃
Humidity ≤95%




Body Height 6m Arm IP44 Automatic Barrier Systems 250W 0





1. The box is waterproof, durable and can be used in outdoor environments. Closed fence barriers prevent people from crossing casually.


2. The box is treated by pickling, phosphating, electrostatic spraying polyester powder, etc. And it has been subjected to high-temperature hot-melt baking, scrubbing and anti-UV quality, ensuring no fading for about three years.


3. This system can be equipped with soft hose to prevent crash, as well as other protective equipment such as air pressure waves, so that the system has anti-smashing functions.


4. A variety of control methods are available for users to choose. Both external wired and remote control can be used to control the rise/lower/stop of the gate.


5. The use of multiple protection measures (heater protection, low temperature protection, wind protection, anti-electricity protection, anti-lightning protection, etc.), the reliability of the barrier operation is greatly improved.


6. Integrating electricity and mechanical control, flexible operation, convenient and reliable.


7. It can be used with the optional vehicle detector to make it have the functions of “automatic drop-off after the car passing” and “automatic lifting of the drop-bar when there is a car”, which makes the barrier have automatic closing and perfect anti-smashing function.


8. Opening priority function, which can effectively improve the efficiency of the vehicle passing.


9. The system uses a standard electrical interface externally, which can be easily attached to other systems.


10. All moving parts have been adjusted to a gentle movement and balance state, the solid machine performance is stable, the operation is smooth, the noise is small, and the service life is long.
