6m Arm IP44 250W Automatic Barrier Gate with Airborne Barrier System
  • 6m Arm IP44 250W Automatic Barrier Gate with Airborne Barrier System
  • 6m Arm IP44 250W Automatic Barrier Gate with Airborne Barrier System
  • 6m Arm IP44 250W Automatic Barrier Gate with Airborne Barrier System
6m Arm IP44 250W Automatic Barrier Gate with Airborne Barrier System

6m Arm IP44 250W Automatic Barrier Gate with Airborne Barrier System

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-ABBG01
Product Details
Box Weight:
About 110kg
Box Dimension:
457*686*1275mm
IP Rate:
IP44
Arm Lenght:
Max 6m
Arm Type:
Fencing
Product Life:
5 Million Times
Highlight:

IP44 Automatic Barrier Systems

,

6m Arm Automatic Barrier Systems

,

250W Body Height Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
500 pcs per month
Product Description
Body Height 6m Arm IP44 Automatic Barrier Systems 250W
High-Power Relay Control Motor Overheating Protection Body Height Automatic Barrier Systems
Working Principle
The mechanical power is driven by the motor through the turbo worm reducer to drive the output shaft, and the motion is transmitted to the lever through the planar four-bar mechanism. Magnetic sensor switches are used to accurately position the horizontal and vertical positions of the brake lever during operation, ensuring precise control of the brake lever.
Product Movement Characteristics
  • Non-constant speed operating mechanism ensures smooth operation with slow start, fast run, and slow stop to eliminate jitters and extend product life
  • High-bearing load-bearing bearing with seat provides stable movement
  • Adjustable mechanical limit for convenient and fast installation and commissioning
  • High-sensitivity limit switch for accurate positioning of starting and falling rods
  • Integrated turbine worm drive deceleration asynchronous motor for stable transmission, low noise, compact structure, and self-locking capability
  • Intelligent overheating protection system controls motor temperature rise during frequent use, preventing motor burnout
  • Manual opening mechanism allows automatic lifting and lowering of brake lever via motor hand wheel during power failure
Technical Specifications
ITEM SPECS
Power input AC220/AC110 50/60HZ
Rated power 250W
Opening/Closing time 9s
Box weight 110kg
Box dimension 457*686*1275mm
Protection grade IP44
Boom length 1m to 6m
Boom height 1168mm
Remote distance ≤30m
Working temperature -30℃~+80℃
Humidity ≤95%
Product Image

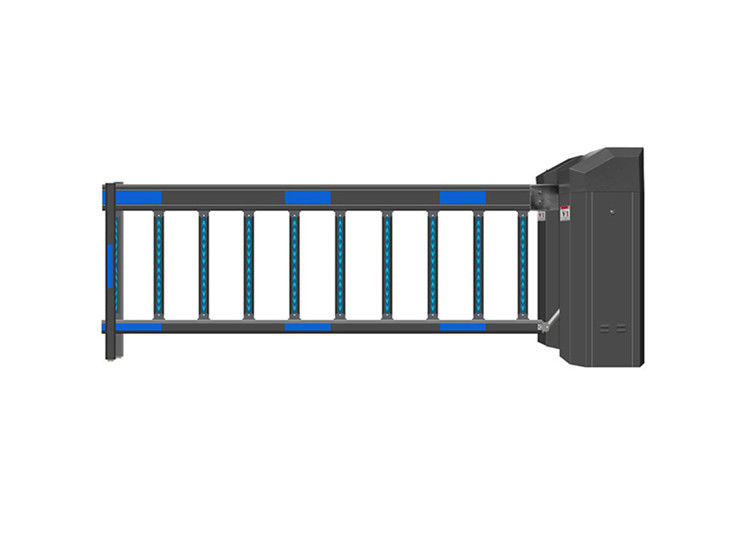

6m Arm IP44 250W Automatic Barrier Gate with Airborne Barrier System 0
Features and Functions
  • Waterproof, durable box designed for outdoor environments with closed fence barriers to prevent unauthorized crossing
  • Surface treatment includes pickling, phosphating, and electrostatic spraying polyester powder with high-temperature hot-melt baking, providing UV resistance and anti-fading for approximately three years
  • Compatible with soft hose crash protection and air pressure waves for comprehensive anti-smashing functionality
  • Multiple control options including external wired and remote control for rise/lower/stop operations
  • Comprehensive protection measures including heater protection, low temperature protection, wind protection, anti-electricity protection, and anti-lightning protection
  • Integrated electrical and mechanical control for flexible, convenient, and reliable operation
  • Optional vehicle detector enables automatic drop-off after vehicle passing and automatic lifting functions
  • Opening priority function enhances vehicle passing efficiency
  • Standard electrical interface for easy integration with other systems
  • All moving parts adjusted for gentle movement and balance, ensuring stable performance, smooth operation, low noise, and extended service life
