6m Boom Length Airborne Barrier Gate with 250W Power and Electrostatic Spraying
  • 6m Boom Length Airborne Barrier Gate with 250W Power and Electrostatic Spraying
  • 6m Boom Length Airborne Barrier Gate with 250W Power and Electrostatic Spraying
  • 6m Boom Length Airborne Barrier Gate with 250W Power and Electrostatic Spraying
6m Boom Length Airborne Barrier Gate with 250W Power and Electrostatic Spraying

6m Boom Length Airborne Barrier Gate with 250W Power and Electrostatic Spraying

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-ABBG01
Product Details
Body Material:
Mild Steel
Arm Material:
Aluminum Alloy
Surface Treatment:
Electrostatic Spraying
Box Dimension:
457*686*1275mm
Boom Lenght:
1m To 6m
Boom Total Height:
1168mm
Highlight:

Parking Management Airborne Sliding Gate

,

6m Boom Airborne Sliding Gate

,

250W Sliding Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
500 pcs per month
Product Description

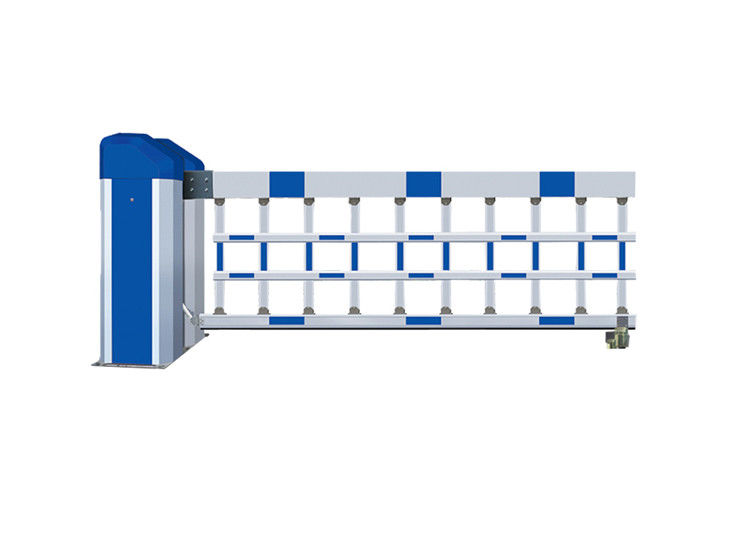

6m Boom Length Parking Management Airborne Drop Arm Gate
This airborne boom barrier is engineered for large openings up to 6 meters, providing an ideal solution for controlling vehicle traffic in parking lots, private entrances, and industrial or public facilities.
With over 15 years of manufacturing expertise in designing, producing, and installing boom barriers, we deliver superior products backed by exceptional after-sales service. Our rigorous quality control ensures extended lifespan and reliable performance.
Advanced Features
Robust Material Structure
Constructed from high-quality cold-rolled steel with a simple, aesthetically pleasing design. The material's mechanical properties and chemical composition meet industry standards.
Safety & Protection Systems
Features comprehensive leakage protection with over-current and over-voltage safeguards for the control system. Includes automatic stop function that halts operation when limit signals are detected.
Product Specifications
Type Airborne Barrier Gate Working Temperature -30°C to 80°C
Voltage 110V/220V+10% Housing Materials 2mm Cold-Rolled Sheet
Box Weight 110KG Boom Length 1M to 6M
Rated Power 250W Housing Size 46cm*69cm*128cm
Motor Type AC Motor Boom Height 1168mm
Input Power 220AC/AC110 50-60HZ Remote Control Distance ≤30M
MTBF 5M Cycles Boom Speed 9s
IP Grade IP44 Boom Materials Aluminum Alloy
Color Options White with Blue; White with Grey; Blue; Orange; Black
Product Images
6m Boom Length Airborne Barrier Gate with 250W Power and Electrostatic Spraying 0 6m Boom Length Airborne Barrier Gate with 250W Power and Electrostatic Spraying 1
Key Features & Functions
  • Waterproof, durable enclosure designed for outdoor environments with closed fence barriers preventing unauthorized crossing
  • Surface treatment includes pickling, phosphating, and electrostatic spraying with polyester powder, featuring high-temperature hot-melt baking and anti-UV protection ensuring no fading for approximately three years
  • Optional soft hose and air pressure wave protection equipment for comprehensive anti-smashing functionality
  • Multiple control options including external wired and remote control for gate rise/lower/stop operations
  • Advanced protection measures: heater protection, low temperature protection, wind protection, electrical protection, and lightning protection for enhanced operational reliability
  • Integrated electrical and mechanical control system for flexible, convenient, and reliable operation
  • Compatible with vehicle detectors for automatic drop-off after vehicle passage and automatic lifting when vehicles approach, providing automatic closing and anti-smashing capabilities
  • Opening priority function to improve vehicle passing efficiency
  • Standard electrical interface for easy integration with other systems
  • All moving parts adjusted for gentle movement and balance, ensuring stable performance, smooth operation, low noise, and extended service life
