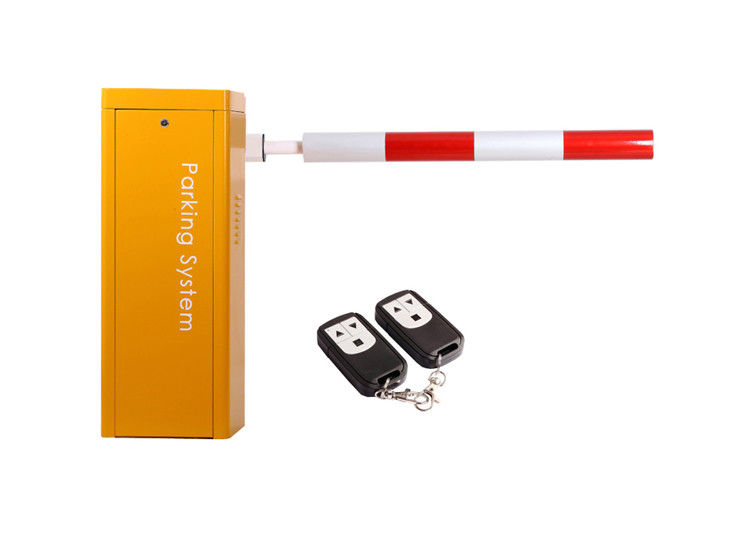

Aluminum Alloy Arm 1400rpm 140W Automatic Barrier Gate with 6m Boom Length
  • Aluminum Alloy Arm 1400rpm 140W Automatic Barrier Gate with 6m Boom Length
  • Aluminum Alloy Arm 1400rpm 140W Automatic Barrier Gate with 6m Boom Length
  • Aluminum Alloy Arm 1400rpm 140W Automatic Barrier Gate with 6m Boom Length
Aluminum Alloy Arm 1400rpm 140W Automatic Barrier Gate with 6m Boom Length

Aluminum Alloy Arm 1400rpm 140W Automatic Barrier Gate with 6m Boom Length

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BG130-DC
Product Details
Housing Color:
Yellow, Red, Grey Etc
Housing Material:
Cold Roller Steel Plate
Arm Material:
Aluminum Alloy Arm
Arm Length:
Max 6m
Place Of Origin:
Shenzhen,China
Arm Type:
Straight, Folding, Fence
Highlight:

6m Arm Security Barriers Gates

,

140W Security Barriers Gates

,

1400rpm Parking Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
3,000pcs per month
Product Description
Aluminum Alloy 1400rpm 140W 6m Arm Security Barriers Gates
Aluminum Alloy Arm Security Barriers And Gates DC Brushless Motor With Hall Limit
SHENZHEN SINOMATIC is a professional manufacturer for barrier gate, boom barrier, and sliding gate motor. Contact us for customized solutions.
Technical Specifications
Parameter Specification
Working Temperature -35℃~+85℃
Power Supply DC24V
Open/Close Speed 2Sec to 6sec (adjustable)
Rated Current 8.58A
Rated Power 140W
Motor No-load Speed 1850rpm
Rated Rotating Speed 1400rpm
Output Power 56.8N.m
Humidity ≤90%
Remote Control Distance ≤100m (open, sunny weather)
Protection Grade IP44
Max Boom Length 6M
Functions & Features
  • Adjustable operation speed (2s to 6s)
  • Quick arm direction interchange
  • Barrier gate up & down signal relay switch output
  • R&G Traffic light relay switch signal output
  • External loop detector signal anti-smashing interface
  • Infrared sensor signal anti-smashing interface
  • Count mode interface
  • Arm swing out function for collision protection
  • High-sensitivity auto reverse function (adjustable intensity)
  • Parking system interface
Package Contents
1 pc Vehicle Barrier gate
1 pc Arm boom (1m to 6m customizable)
1 pc Control panel (built inside)
2 pcs Remote controllers
1 pc Push button
1 pc Manual book
Boom Arm Protection System
Anti-collision Protection: Protects boom arm from damage when collided by vehicles.
Safety Pressure Resistance Bounce: While moving down, boom arm immediately returns to vertical position when obstructed, protecting vehicles and pedestrians. Sensitivity is adjustable.
Product Images
Aluminum Alloy Arm 1400rpm 140W Automatic Barrier Gate with 6m Boom Length 0 Aluminum Alloy Arm 1400rpm 140W Automatic Barrier Gate with 6m Boom Length 1
Spring Selection Guide
Arm Type Arm Length Spring Type Specification (diameter*Length)
Straight Arm/Folding Arm 6M≥L＞5M Extension Spring (ø5.5x280)+(ø4.5x280)
5M≥L≥4.5M (ø5.5x280)
4.5M＞L≥3M (ø4.5x280)
Fence Arm 5M≥L≥4M Extension Spring (ø6.5x280)+(ø6.5x280)
4M＞L≥3M (ø5.5x280)+(ø4.5x280)
Arm Length Speed Configuration
Menu Code Number Menu Code Name Defaults Unit Remarks
H00-00 25-95 Open speed adjustment 40 Corresponding PWM duty cycle 25%-95%, step size is 1
H00-01 25-95 Close speed adjustment 40 Corresponding PWM duty cycle 25%-95%, step size is 1
H00-02 5-40 Open in place decelerate angle 35 The larger the angle value, the less likely it is to shake the arm when it is in place
H00-03 5-40 Close in place decelerate angle 35 The larger the angle value, the less likely it is to shake the arm when it is in place
H00-04 1-20 Open accelerate adjustment 10 ms The smaller the number, the faster the speed
H00-05 1-20 Close accelerate adjustment 10 ms The smaller the number, the faster the speed
H00-06 1-30 Open in place angle 2 degree step size is 1
H00-07 1-30 Close in place angle 1 degree step size is 1
H00-08 7-13 Auto reverse force adjustment 10 A step size is 1
H00-09 0-90 Delay closing adjustment 0 Sec step size is 100；0 is not closing automatically, Other value will be closing automatically; This parameter is for when there is no loop detector signals and non-automatic operation occasions
H00-10 10-50 Self-check speed adjustment 30 Corresponding PWM duty cycle 10%-50%, step size is 1
H00-11 0-2 Self-check mode 0 0:no operate automatically；1:operate automatically,remove after power off；2:operate automatically,Power failure memory
H00-12 0-5 Self-lock force adjustment(Invalid) 3
H00-13 1-20 Motor deceleration time when paused 5 The larger the setting, the longer the pause time will take
H00-14 0-1 The default direction of operation after self-test 0 0:Closing,1:opening
H00-15 1-10 Number of pole pairs(Invalid) 4 Only used to correctly display motor speed values
H00-16 1-32 RS485 communication address 1 Up to 32 slaves can be connected
H00-17 0-2 RS485 communication rate 0 0:9600,1:19200,2:38400；Change the parameter and will be valid after power on again
H00-18 0-1 If self-test after power is on 1 0:no self-test after power on,1:self-test after power on
H00-19 0-3 Manual self-test adjustment 2 0:Manually invalid,1:Keyboard SET button,2:remote control valid,3,Keyboard SET button and remote control both valid
H00-20 0-15 Monitoring parameter setting index 7 7,operation times(ms):0~9000
8,Cumulative operation times:0`99999999
9,automatically operation times :0~99999999
10,Collision times:0~99999999
11,Closing in place times:0~99999999
12,Power-on time (minutes):0~99999999
13,power-on times:0~99999999
14,Input port status:Binary display
15,Error code:0~7
H00-21 0-3 reset 0 1:rest adjustment
H00-22 0-1 LED output mode 0 0:Do not flash alternately during operation；1:Allow flashing
