IP44 140W 6m Arm Automatic Barrier Gate System for Vehicle Access Control
  • IP44 140W 6m Arm Automatic Barrier Gate System for Vehicle Access Control
  • IP44 140W 6m Arm Automatic Barrier Gate System for Vehicle Access Control
  • IP44 140W 6m Arm Automatic Barrier Gate System for Vehicle Access Control
IP44 140W 6m Arm Automatic Barrier Gate System for Vehicle Access Control

IP44 140W 6m Arm Automatic Barrier Gate System for Vehicle Access Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BG130-DC
Product Details
Housing Size:
335 * 285 * 926mm
Direction:
Left Or Right Changeable
Arm Material:
Aluminum Alloy Arm
Arm Length:
Max 6m
Power Supply:
220V/110V ±10%, DC24V
Place Of Origin:
Shenzhen,China
Highlight:

24VDC Auto Barrier Gate System

,

140W Auto Barrier Gate System

,

1400rpm Parking Lot Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
3,000pcs per month
Product Description
IP44 1400rpm 140W 6m Arm 24VDC Auto Barrier Gate System
Professional 24V DC automatic barrier gate system designed for parking lot applications with adjustable operation speed and comprehensive safety features.
Functions & Features
  • Adjustable operation speed (2s to 6s)
  • Quickly interchangeable arm direction
  • Barrier gate up & down signal relay switch output
  • R&G traffic light relay switch signal output
  • External loop detector signal anti-smashing interface
  • Infrared sensor signal anti-smashing interface
  • Count mode interface
  • Arm swing-out function for collision protection
  • High-sensitivity auto reverse function (adjustable intensity)
  • Parking system interface
Technical Specifications
Working Temperature-35℃ to +85℃
Power SupplyDC24V
Open/Close Speed2Sec to 6sec (adjustable)
Rated Current8.58A
Rated Power140W
Motor No-load Speed1850rpm
Rated Rotating Speed1400rpm
Output Power56.8N.m
Humidity≤90%
Remote Control Distance≤100m (open, sunny weather)
Protection GradeIP44
Max Boom Length6M
Package Contents
  • 1 Vehicle Barrier Gate
  • 1 Arm Boom (1m to 6m customizable)
  • 1 Control Panel (built inside)
  • 2 Remote Controllers
  • 1 Push Button
  • 1 Manual Book
Boom Arm Protection System
Anti-Collision Protection
Protects the boom arm from damage when collided by vehicles. Features pressure resistance bounce safety mechanism.
Anti-Hit Safety Feature
During descent, the boom arm immediately returns to vertical position when obstructed, protecting vehicles and pedestrians. Sensitivity is adjustable for optimal performance.
Product Images
IP44 140W 6m Arm Automatic Barrier Gate System for Vehicle Access Control 0 IP44 140W 6m Arm Automatic Barrier Gate System for Vehicle Access Control 1
Arm Configuration Specifications
Arm Type Arm Length Spring Type Specifications (Diameter*Length)
Straight Arm/Folding Arm 6M≥L＞5M Extension Spring (ø5.5x280)+(ø4.5x280)
5M≥L≥4.5M (ø5.5x280)
4.5M＞L≥3M (ø4.5x280)

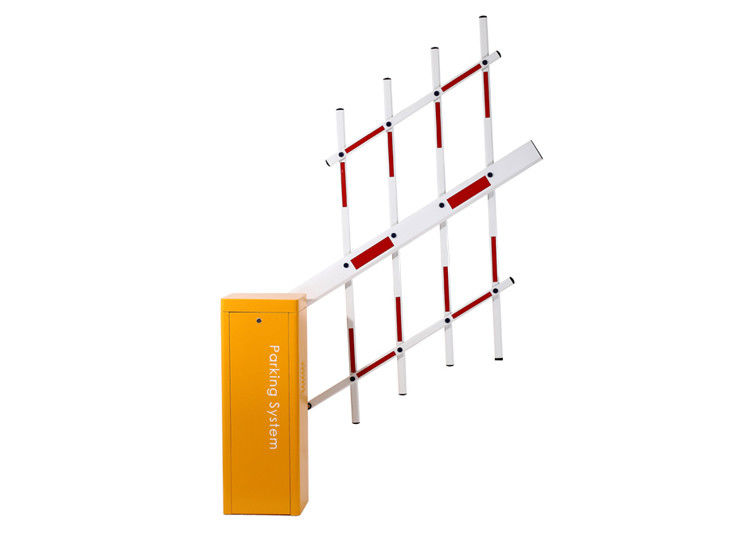

Fence Arm 5M≥L≥4M (ø6.5x280)+(ø6.5x280)
4M＞L≥3M (ø5.5x280)+(ø4.5x280)
Speed Control Parameters
Menu Code Number Menu Code Name Defaults Unit Remarks
H00-00 25-95 Open speed adjustment 40 Corresponding PWM duty cycle 25%-95%, step size is 1
H00-01 25-95 Close speed adjustment 40 Corresponding PWM duty cycle 25%-95%, step size is 1
H00-02 5-40 Open in place decelerate angle 35 The larger the angle value, the less likely it is to shake the arm when it is in place
H00-03 5-40 Close in place decelerate angle 35 The larger the angle value, the less likely it is to shake the arm when it is in place
H00-04 1-20 Open accelerate adjustment 10 ms The smaller the number, the faster the speed
H00-05 1-20 Close accelerate adjustment 10 ms The smaller the number, the faster the speed
