Adjustable Speed 140W 1850rpm DC Parking Lot Barrier Gate with Anti-Collision Protection
  • Adjustable Speed 140W 1850rpm DC Parking Lot Barrier Gate with Anti-Collision Protection
  • Adjustable Speed 140W 1850rpm DC Parking Lot Barrier Gate with Anti-Collision Protection
  • Adjustable Speed 140W 1850rpm DC Parking Lot Barrier Gate with Anti-Collision Protection
Adjustable Speed 140W 1850rpm DC Parking Lot Barrier Gate with Anti-Collision Protection

Adjustable Speed 140W 1850rpm DC Parking Lot Barrier Gate with Anti-Collision Protection

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BG130-DC
Product Details
Working Voltage:
DC24V
Arm Type:
Straight, Folding And Fence Arm
Working Temperature(motor):
-35℃~+85℃
Warranty:
1 Year
Power Supply:
220V/110V ±10%, DC24V
Place Of Origin:
Shenzhen,China
Highlight:

8.58A Parking Lot Barrier Gate

,

1850rpm Parking Lot Barrier Gate

,

140W Adjustable Parking Entrance Barrier

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
3,000pcs per month
Product Description
Adjustable DC 140W 1850rpm Parking Lot Barrier Gate
DC Parking Lot Barrier Gate / Speed Adjustable Model Parking Entrance Barrier
Technical Specifications
Working Temperature (Motor): -35℃ to +85℃
Rated Voltage: DC24V
Running Speed: 1.5s to 8s
Rated Current: 8.58A
Rated Power: 140W
No-load Speed: 1850rpm
Rated Speed: 1400rpm
Output Power: 56.8N.m
Relative Humidity: ≤90%
Remote Control Distance: ≤100M (open area)
IP Rating: IP44
Maximum Arm Length: 6M
Advanced Safety Features
Anti-Collision Protection
Protects the boom arm from damage when collided by vehicles
Pressure Resistance Bounce Safety
During descent, the boom arm immediately returns to vertical position when obstructed, protecting vehicles and pedestrians. Sensitivity is adjustable.
Product Images

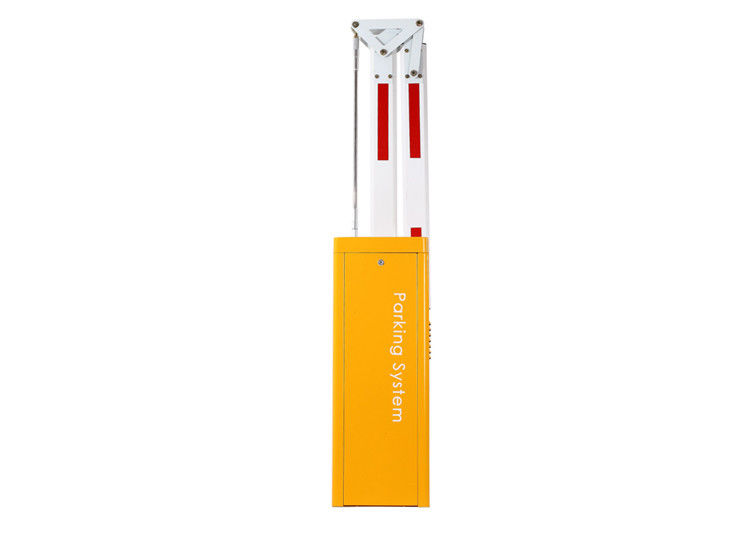

Adjustable Speed 140W 1850rpm DC Parking Lot Barrier Gate with Anti-Collision Protection 0 Adjustable Speed 140W 1850rpm DC Parking Lot Barrier Gate with Anti-Collision Protection 1
Arm Specifications
Arm Type Arm Length Spring Type Specification (Diameter*Length)
Straight Arm/Folding Arm 6M≥L＞5M Extension Spring (ø5.5x280)+(ø4.5x280)
5M≥L≥4.5M (ø5.5x280)
4.5M＞L≥3M (ø4.5x280)
Fence Arm 5M≥L≥4M (ø6.5x280)+(ø6.5x280)
4M＞L≥3M (ø5.5x280)+(ø4.5x280)
Key Features
  • Adjustable running speed from 1.5s to 6s
  • Quick interchange capability
  • Manual operation via motor wheel during power outage with automatic reset after power restoration
  • Curved crank arm three-link movement structure for stable operation
  • Wireless remote control for open/close functions
  • Auto reverse function with adjustable force
  • Infrared photocells connector available
  • Loop detector connector available
  • Seamless integration with car parking systems via wire control (switch signal required)
Speed Adjustment Parameters
Menu Code Number Menu Code Name Defaults Unit Remarks
H00-00 25-95 Open speed adjustment 40 Corresponding PWM duty cycle 25%-95%, step size is 1
H00-01 25-95 Close speed adjustment 40 Corresponding PWM duty cycle 25%-95%, step size is 1
H00-02 5-40 Open in place decelerate angle 35 The larger the angle value, the less likely it is to shake the arm when it is in place
H00-03 5-40 Close in place decelerate angle 35 The larger the angle value, the less likely it is to shake the arm when it is in place
H00-04 1-20 Open accelerate adjustment 10 ms The smaller the number, the faster the speed
H00-05 1-20 Close accelerate adjustment 10 ms The smaller the number, the faster the speed
H00-06 1-30 Open in place angle 2 degree step size is 1
H00-07 1-30 Open in place angle 1 degree step size is 1
H00-08 7-13 Auto reverse force adjustment 10 A step size is 1
H00-09 0-90 Delay closing adjustment 0 Sec step size is 100; 0 is not closing automatically, Other value will be closing automatically; This parameter is for when there is no loop detector signals and non-automatic operation occasions
H00-10 10-50 Self-check speed adjustment 30 Corresponding PWM duty cycle 10%-50%, step size is 1
H00-11 0-2 Self-check mode 0 0:no operate automatically; 1:operate automatically,remove after power off; 2:operate automatically,Power failure memory
H00-12 0-5 Self-lock force adjustment(Invalid) 3
H00-13 1-20 Motor deceleration time when paused 5 The larger the setting, the longer the pause time will take
H00-14 0-1 The default direction of operation after self-test 0 0:Closing,1:opening
H00-15 1-10 Number of pole pairs(Invalid) 4 Only used to correctly display motor speed values
H00-16 1-32 RS485 communication address 1 Up to 32 slaves can be connected
H00-17 0-2 RS485 communication rate 0 0:9600,1:19200,2:38400; Change the parameter and will be valid after power on again
H00-18 0-1 If self-test after power is on 1 0:no self-test after power on,1:self-test after power on
H00-19 0-3 Manual self-test adjustment 2 0:Manually invalid,1:Keyboard SET button,2:remote control valid,3,Keyboard SET button and remote control both valid
H00-20 0-15 Monitoring parameter setting index 7 7,operation times(ms):0~9000
8,Cumulative operation times:0`99999999
9,automatically operation times :0~99999999
10,Collision times:0~99999999
11,Closing in place times:0~99999999
12,Power-on time (minutes):0~99999999
13,power-on times:0~99999999
14,Input port status:Binary display
15,Error code:0~7
H00-21 0-3 reset 0 1:rest adjustment
H00-22 0-1 LED output mode 0 0:Do not flash alternately during operation; 1:Allow flashing
