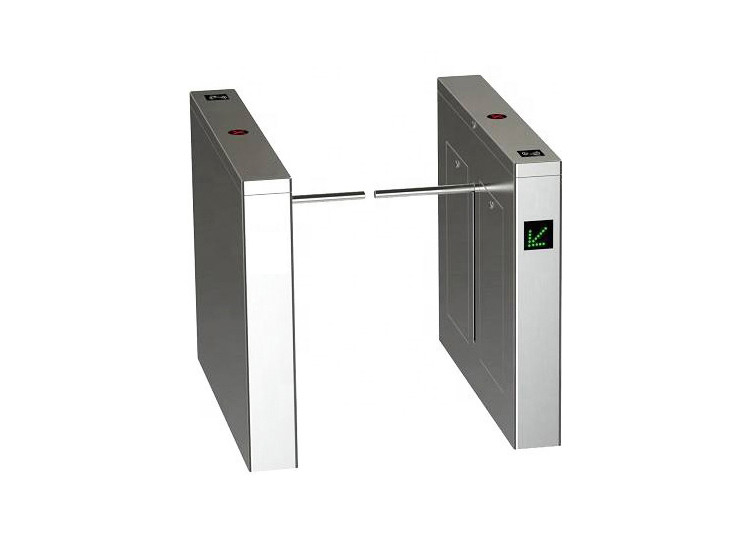

Diversify Passageway Brushless Motor Biometric Turnstile gate DC24V
  • Diversify Passageway Brushless Motor Biometric Turnstile gate DC24V
  • Diversify Passageway Brushless Motor Biometric Turnstile gate DC24V
  • Diversify Passageway Brushless Motor Biometric Turnstile gate DC24V

Diversify Passageway Brushless Motor Biometric Turnstile gate DC24V

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-DAB02
Product Details
Motor Type:
DC Brushless
Motor Voltage:
Service Lift:
5m To 10m Times
Arm Lenght:
300 To 500mm
Lane Width:
600 To 1000mm
High Light:

Brushless Motor Biometric Turnstile Gate


Diversify Passageway Biometric Turnstile Gate


DC24V One Arm Biometric Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
500 pcs per month
Product Description

One Arm Diversify passageway modes wheelchair brushless motor biometric turnstile




One Arm Turnstile is integrated with mechanism, electric and micro-controller and various kinds of identification technologies, compatible with IC, ID, barcode, fingerprint reader and so on to provide intelligent control and management to flow control. Durable, anti-rusty. provide orderly passage to people, anti-illegal entry or exit, smooth operation, low noise. arm drops off in condition of emergencies.
This model is widely used in bus station, port, subway, factory, mansion, residential area, hotel, company and any place that requires a smart flow control.






Model No. SN-DAB02
Cabinet Material 304 Stainless Steel
Dimensions Cabinet:1200*150*1000mm
Motor Type Single motor
Weight 50KG
Arm Length ≤500
Passage Width ≤1000
Dry Contact 12V
Material Thickness 1.2mm
Card-reading Window Two
Direction Bi-directional
Service Life 5million times
Operating Temperature -25℃ ~ +60℃
Related Humidity ≥90%RH
Power Supply AC 220V/110V ±10% 50/60MHZ (optional)
Opening Speed 30-45persons per minute
Closing Speed 25-35 persons per minute



1.Easy operation and convenient maintenance with functions of breakdown self check and alarm.
2.Flexible code dialing settings, having about dozens types performance for your selection.
3.Infrared and mechanical anti-clamping provide double protection. When a sudden impact force is applied during system reset, the turnstile will automatic stop or rebound, sending out alarm signal at the same time.
4.Various alarm patterns, including illegal intrusion, reverse passing , anti-trailing and overtime passing alarm etc.
5.Impact resistant, without receiving the open signal, turnstile arm locks automatically.
6.Anti-reverse passing, when somebody attempt to passing reversely, the wing quickly shuts at the same time alarms.
7.High brightness access indicator light and its humanized prompt function, make the passageway more characteristic.
8.Adjustable for modes of normal open and normal close ,can easily be achieved through code-dialing or external manual button controlling.
9.Automatic detection and reset function: System will automatically cancel the access permissions when no objects passing is detected within the prescribed period of time (adjustable).
10.The turnstile opens automatically to evacuate people in the event of an emergency, such as fire, power failure, etc.
11.Can be linked with a variety of control equipments, receiving the signal of relay switch .
12.Diversify passageway modes, can be one-way or two-way passing or one-way controlled, reverse free passage.
13.Strong environment adapting ability , Turnstile cam be installed in any harsh environments, with strong ego protecting ability. such as weak current, short circuit, glare, fog rain and snow weather, typhoon or other environmental change.


Our Service:

1. Provide free technical training, guidance and information of our products and accessories.

2. Our technical staff could instruct our customers on the installation of barrier gates, tripod turnstiles, flap barriers, swing barriers, full height turnstiles, parking barrier lock and etc, and deal with technical and quality issues.

3. We offer 1 years’ warranty and lifelong maintenance.

4. Once receive the customer requirements and complaints, we will response within 24 hours.

5. Free maintenance and replacement will be provided if defects result from quality failure of our product within the warranty period

6. Our company will provide technical services by phone, fax, e-mail, skype etc., please refer to the contact details.

7. Our company will provide perfect after-sale services and technical support.



Diversify Passageway Brushless Motor Biometric Turnstile gate DC24V 0Diversify Passageway Brushless Motor Biometric Turnstile gate DC24V 1

Diversify Passageway Brushless Motor Biometric Turnstile gate DC24V 2


Fields of Application
● Station, dock, site, school, supermarket entrance control management
● Exhibition center, swimming pool, tourist attractions and other ticket entrance and exit control management
● Enterprises and institutions attendance, access control, consumption entrance and exit control management
● Special channel access control
