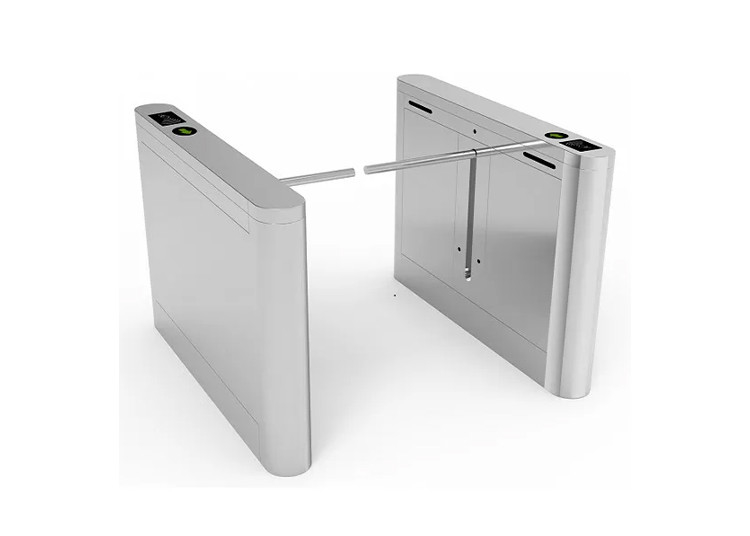

Bidirectional Mifare Card Reader Drop Arm Turnstile biometric access control system
Drop Arm Turnstile is formed after bending the stainless steel plate. The shape is featured as pleasing appearance, good looking, stainless and durable. The system is provided with a standard electric interface and is easily integrated into the equipment with read/write facilities such as magnetic card, bar code card, ID card and IC card. As a result, an orderly and civilized passage is provided for the personnel in and out, and illegal personnel can be barred. At the same time, a special fire control interface is equipped in the system to meet the requirement of fire control passage, so that a rapid down rod control may be realized in emergency for diverting passengers.
Automatic Drop arm Barriers Specifications
AC220±10%V 50Hz/AC110±10% 60Hz
Access device input voltage
Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Max flow rate
30 to 40 person per minute
300 to 500mm
Time of opening or closing
less than 2S
|5 million times
1.Easy operation and convenient maintenance with functions of breakdown self check and alarm.
2.Flexible code dialing settings, having about dozens types performance for your selection.
3.Infrared and mechanical anti-clamping provide double protection. When a sudden impact force is applied during system reset, the turnstile will automatic stop or rebound, sending out alarm signal at the same time.
4.Various alarm patterns, including illegal intrusion, reverse passing , anti-trailing and overtime passing alarm etc.
5.Impact resistant, without receiving the open signal, turnstile arm locks automatically.
6.Anti-reverse passing, when somebody attempt to passing reversely, the wing quickly shuts at the same time alarms.
7.High brightness access indicator light and its humanized prompt function, make the passageway more characteristic.
8.Adjustable for modes of normal open and normal close ,can easily be achieved through code-dialing or external manual button controlling.
9.Automatic detection and reset function: System will automatically cancel the access permissions when no objects passing is detected within the prescribed period of time (adjustable).
10.The turnstile opens automatically to evacuate people in the event of an emergency, such as fire, power failure, etc.
11.Can be linked with a variety of control equipments, receiving the signal of relay switch .
12.Diversify passageway modes, can be one-way or two-way passing or one-way controlled, reverse free passage.
13.Strong environment adapting ability , Turnstile cam be installed in any harsh environments, with strong ego protecting ability. such as weak current, short circuit, glare, fog rain and snow weather, typhoon or other environmental change.
Fields of Application
● Station, dock, site, school, supermarket entrance control management
● Exhibition center, swimming pool, tourist attractions and other ticket entrance and exit control management
● Enterprises and institutions attendance, access control, consumption entrance and exit control management
● Special channel access control
