Facial Recognition ESD Entrance Drop Arm Turnstile 30person/min

  • Facial Recognition ESD Entrance Drop Arm Turnstile 30person/min
  • Facial Recognition ESD Entrance Drop Arm Turnstile 30person/min
Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-DAB02
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 500 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Vertical Drop Arm Turnstile Lenght Width 950mm
Flow Rate 30person/min Material SS304
Weight 60KG Arm Lenght 450mm
High Light

ESD Entrance Drop Arm Turnstile

,

Facial Recognition Drop Arm Turnstile

,

30person/min Access Control Turnstile
Leave a Message
Product Description

Facial Recognition Access control Anti static Electronic ESD Entrance Drop Arm Turnstile



PRODUCT DESCRIPTION



SINOMATIC Arm Drop Turnstile barriers are designed to control pedestrian entering and exiting, adopts stainless steel #304, double brushed surface treatment, dust-proof, rustproof, rainproof design, suitable for indoor and outdoor use, easy to integrate with other read/write devices, and widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.





PRODUCT SPECIFICATION

Chassis size
1200 long * 150 wide * 1000 high (MM)
Arm lenght

450mm(standard)
Chassis material
SS304 stainless steel
Power supply
AC220±10％V, 50Hz
Driving electromotor
DC brush electromotor(24V)
Input interface
relay switch signal or 12V level signal or pulse width> 100ms 12V pulse signal, drive current> 10mA
Normal life
5 million times
Communication interface
RS485 standard
Card reader window
2
LED indicator
2
Pass speed
30-40 person/min
Gate open, off time
0.2s
The automatic reset time after a fault occurs
10s
Working environment
Indoor, outdoor (with a tent over)
Temperature
-20℃ to 60℃
Relative humidity
≤ 90%, no condensation

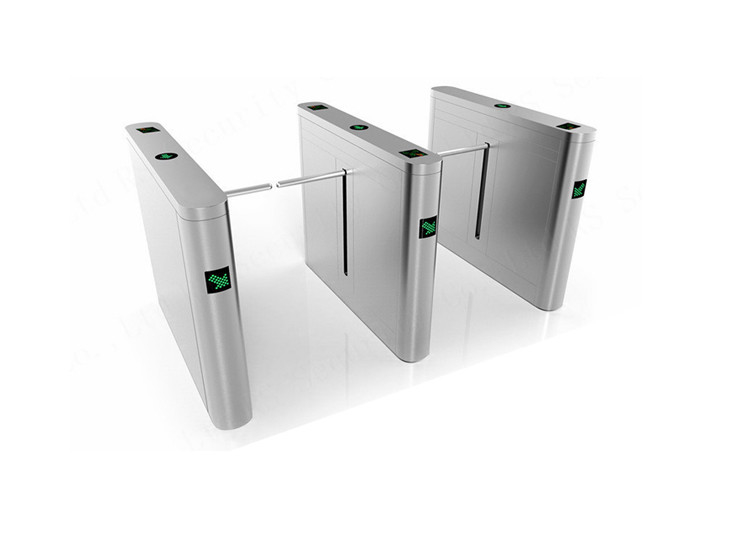

PRODUCT PHOTO

Facial Recognition ESD Entrance Drop Arm Turnstile 30person/min 0Facial Recognition ESD Entrance Drop Arm Turnstile 30person/min 1



FUNCTION & FEATURES



1.Infrared protection



2.Excellent housing design, save space



3.Several working mode, normal open or normal close



4.LED light, optional color



5.Self-examine and alarm, it is convenient for maintenance and use.



6.Being able to program operation status by the small keyboard in the main board



7.Protect pedestrian from hurt



8.Light and sound alarm function



9.Arms are automatically locked until opening signal is received.



10.Arms synchronization (adjustable)



11.Automatically open the gate when power off and automatically close when power on



12.Optional reader: rfid card, fingerprint, face amchine, button, intercom system and so on



13.Single direction or bi-direction are optional



14.It can be directly control by remote control (optional)



15.Can be linked with a variety of control equipments, receiving the signal of relay switch .



16.Diversify passageway modes, can be one-way or two-way passing or one-way controlled, reverse free passage.
