DC 24V 50W 6m Boom Automatic Barrier Gate for Parking Systems
  • DC 24V 50W 6m Boom Automatic Barrier Gate for Parking Systems
  • DC 24V 50W 6m Boom Automatic Barrier Gate for Parking Systems
  • DC 24V 50W 6m Boom Automatic Barrier Gate for Parking Systems
DC 24V 50W 6m Boom Automatic Barrier Gate for Parking Systems

DC 24V 50W 6m Boom Automatic Barrier Gate for Parking Systems

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BG138
Product Details
Brand:
SINOMATIC
Speed:
0.6s, 0.9s, 2s, 4s
OEM/ODM:
OEM/ODM
Arm Type:
Straight, Folding, Fencing
Material:
2.00mm Cold Roll Plate Or Galvanized Plate
Name:
Automatic Gate Barriers Parking System
Highlight:

6m Boom Automatic Gate Barriers

,

4s Automatic Gate Barriers

,

50W Parking Lot Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
1,000 pcs per month
Product Description
Adjustable DC 24V 50W 6m Boom 4s Automatic Gate Barriers
10 Million Lifetime Servo Motor Barrier DC 24V Fence Boom Automatic Gate Barriers Parking System
Lead Time
Quantity (Sets) 1 - 50 51 - 100 101 - 200 >200
Est. Time (days) 10 15 20 To be negotiated
Product Specification
Rated Voltage AC90V~AC264V, DC24V, 50/60HZ
Speed Time 0.3s, 0.6s, 0.9s, 2s, 4s, 6s
Motor Power 50W, max 100W
Boom Length 2 meter to 6 meter (max)
Working Temperature -40℃~85℃
Housing Size 342*312*959*2mm (L*W*H*TH)
Lifetime >10 million times or 10 years
MTTR <0.5 hour
MTBF >5 million times
Protection Grade IP68
Remote Control Distance ≤100 meter
Motor Speed 3000r/min
Relative Humidity ≤90%
Running Noise <50dB
Net Weight 42.6KG
Application Parking Lots, Toll Gates, Goods Yards, Railway Crossings, Commercial Premises, Apartment Block Access

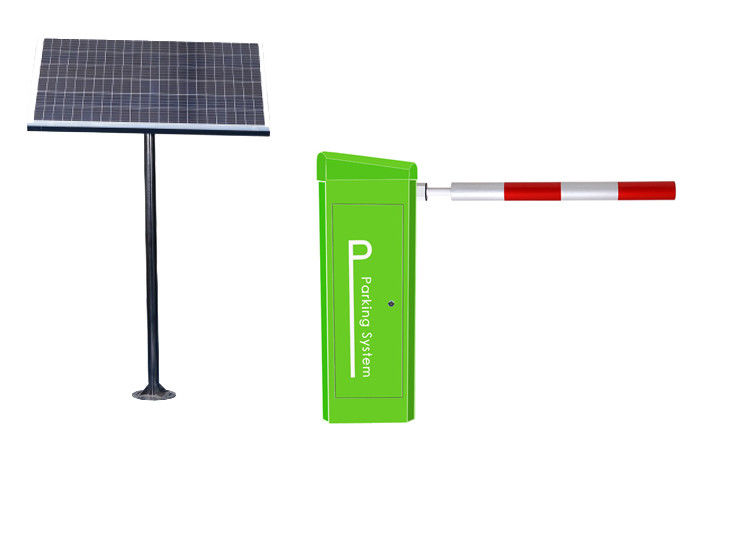

Product Photo
DC 24V 50W 6m Boom Automatic Barrier Gate for Parking Systems 0
Function Description
  • Single Balance Spring device for excellent regulation, no noise, fatigue resistance, safety and reliability
  • High-strength precision cast steel construction with industry-leading moving parts quality
  • Multiple input and output modes with normally open/normally closed options
  • Adjustable speed port with S-curve adjustment capability
  • Closing speed adjustable at 0.9S and 1.3S
  • Easy arm direction change functionality
  • OK signal output indicating proper gate operation status
  • Anti-collision alarm signal interface
  • Traffic light relay switch signal output
  • RS485 or RS232 network communication control up/down interface (no additional communication module required)
  • Count mode interface for traffic monitoring
  • Arm Open priority anti-smashing function for immediate opening response
  • Anti-collision protection with swing-out arm to prevent damage
  • Delay down selection function
  • High sensitivity arm auto reverse function with adjustable intensity
  • Parking system integration interface
Service Coverage
  • Damage caused by incorrect installation
  • Malfunction due to improper voltage supply
  • Surface damage resulting from improper installation and usage
Overdue service items are not covered under our warranty promise.
Optional Colors
DC 24V 50W 6m Boom Automatic Barrier Gate for Parking Systems 1
