| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-BG138 |
10 Million Lifetime Servo Motor Barier DC 24V Fence Boom Automatic Gate Barriers Parking System
LEAD TIME
Lead Time :
PRODUCT SPECIFICATION
| Rated Volatge | AC90V~AC264V,DC24V,50/60HZ |
| Speed Time | 0.3s,0.6s,0.9s,2s,4s,6s |
| Motor Power | 50W,max 100W |
| Boom Length | 2meter to 6meter(max) |
| Working Temperature | -40℃~85℃ |
| Housing Size | 342*312*959*2mm(L*W*H*TH) |
| Lifetime | >10 million times or 10 years |
| MTTR | <0.5hour |
| MTBF | >5 million times |
| Protection Grade | IP68 |
| Remote Controll Distance | ≤100 meter |
| Motor Speed | 3000r/min |
| Relative Humidity | ≤90% |
| Running Noise | <50dB |
| Net Weight | 42.6KG |
| Application | Parking Lots, Toll Gates, Goods Yards, RailwayCrossings,Commercial Premises,Apartment Block Access |

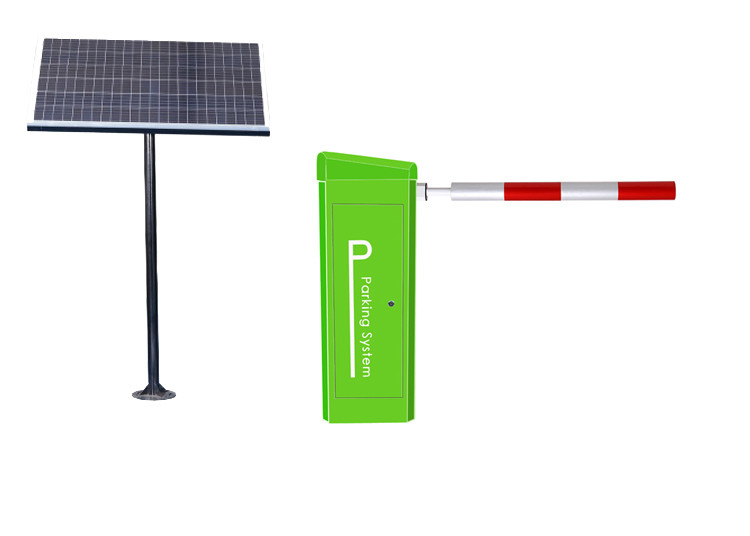

PRODUCT PHOTO
Function Description
1. The use of Single Balance Spring device, good regulation, no noise, indefatigable, not easy to break, safe and reliable.
2. High-strength precision cast steel, industry moving parts beyond the industry quality
3. A variety of input and output modes can be selected, normally open normally closed optional.
4. Adjustable speed port (S curve adjustment)
5. Closing speed can be adjusted, 0.9S, 1.3S.
6. Arm direction can be changed easily
7. Barrier gate running state: OK signal output indicating that the gate is working properly.
8. Anti-collision alarm signal interface.
9. Traffic light relay switch signal output.
10. RS485 or RS232 network communication control up&down interface (no need to install communication module)
11. Count mode interface.
12. Arm Open priority anti-smashing function, regardless of the current gate in what state, the operator through the triple push button,
software or remote control to issue a gate arm up, the gate will give priority to the implementation of the opening action.
13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid damage to the vehicle
and barrier gate machine.
14. Delay down selection function.
15. high sensitivity arm auto reverse function (intensity can be adjusted)
16. Parking system interface
17.RS485 or RS232 network communication control up&down interface (no need to install communication module)
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
Optional colors:
