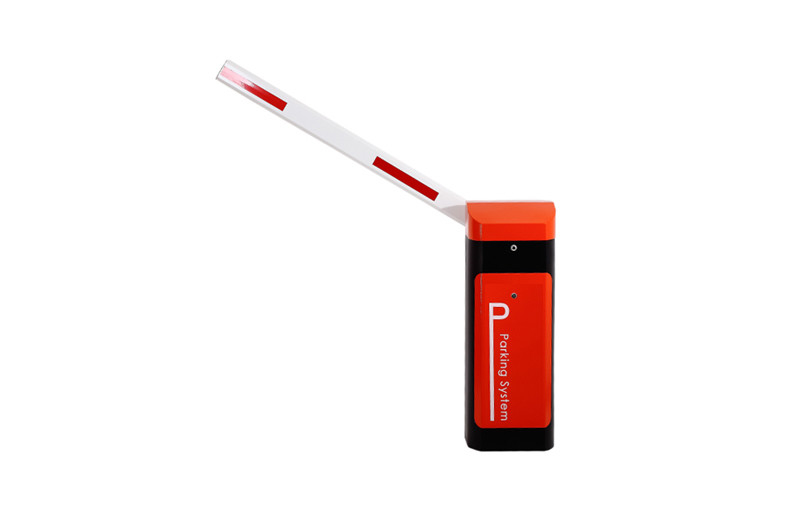

Remote Control 140W IP44 8M Boom Vehicle Barrier Gate

Heavy Duty Vehicle Barrier Gate 50 / 60 Hz Vehicle Access Control 8 Meters Boom DC Brushless Motor

GENERAL DESCRIPTION

Thank you for purchasing the 2nd generation brushless barrier gate. This product adopts the latest mold design technology, mold die-casting manufacturing technology, brushless control speed technology, and can be quickly interchanged, no clutch design, more reliable quality and more convenient use. The movement adopts two-stage worm gear transmission and curved crank arm three- link structure, and the landing rod is fast and stable. Easy maintenance and long service life .

QUICK DETAILS

1 Working temperature(motor): -35℃~+85℃

2 Rated voltage:DC24V

3 Running speed:1.5s-8s

4 Rated current:8.58A

5 Rated power:140W

6 No-load speed:1850rpm

7 Rated speed:1400rpm

8 Output Power:56.8N.m

9 Relative humidity:≤90%

10 Remote control distance:≤100M(in the open place)

11 IP Degree:IP44

12 Max length of arm:6M

Functions

1.Arm direction can be quickly interchanged
2. Run speed can adjust from 0.9sec to 6sec, 4sec lift max 6m arm.
3.Arm automaticlly locking when power off, then open the barrier gate by motor wheel
4.Remote control to operate the barrier gate.
5.Auto-reverse when the boom meets obstruction.
6.Infrared photocells connector is available.
7.Loop detector connector is available.
8.Well-intergrated with car parking system equipment,with wire control(must be switch signal).
9.Connector for traffic light(AC220V,power less than 40W)
10.Offering dry contact signal for car parking system(COM,NC,NO)
11.Auto-delay when closing(adjustable)

Installation instructions

1. Fixing the barrier controller inside the machine case.

2. Refer to the controller wiring connections,fixed the wires.(note:Disconnect power

before installation or repair)

3. After checked and confirmed the connection is reliable, close the control box.

4. Machine control installation: Place the desktop remote on guard room’s desk or fixed on the wall,

and plug in the power.

Main Features

1 The running speed can be adjusted from 1.5s to 6s

2 Can be quickly interchanged

3 Open the barrier gate by motor wheel when power off ,automatically reset after power on

4 Curved crank arm three- link movement structure, the operation is stable

5 Wireless remote control control open/close

6 Auto reverse function(force adjustable)

7 Infrared photocells connector is available

8 Loop detector connector is available.

9 Well-integrated with car parking system equipment,with wire control(must be switch signal)

10 Connector for traffic light(AC220V,power less than 40W)

11 Offering dry contact signal for car parking system(COM,NC,NO)

12 Auto-delay when closing(adjustable)

13 RS485 or CAN network communication interface(no need to install module)

14 Counting interface

15 24V backup battery interface(Can be charged by using solar energy)

Arm type and speed

Technical parameters

PRODUC PHOTO

Service

Service for free:
1. One year free service is supplied(for mechanism)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Price can be negotiable when you have big order quantity.

Service for charging
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
