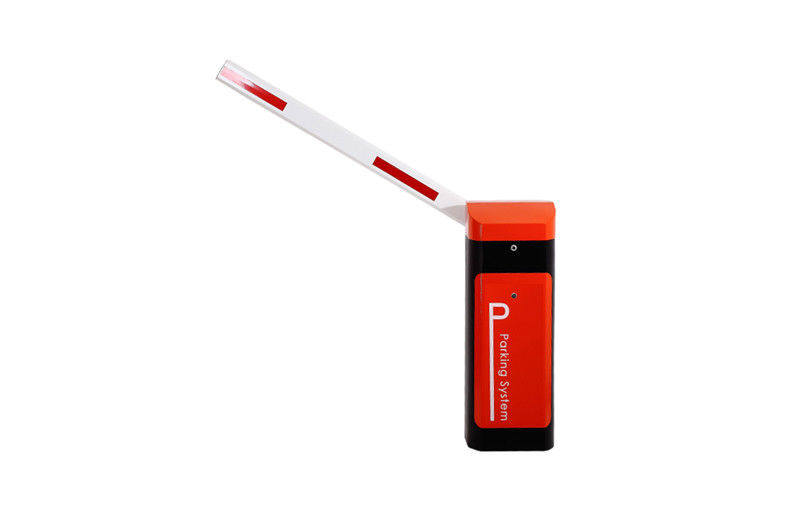

140W IP54 8M Boom Automatic Vehicle Barrier Gate with Remote Control
  • 140W IP54 8M Boom Automatic Vehicle Barrier Gate with Remote Control
  • 140W IP54 8M Boom Automatic Vehicle Barrier Gate with Remote Control
  • 140W IP54 8M Boom Automatic Vehicle Barrier Gate with Remote Control
140W IP54 8M Boom Automatic Vehicle Barrier Gate with Remote Control

140W IP54 8M Boom Automatic Vehicle Barrier Gate with Remote Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BG132-DC
Product Details
Warranty:
1 Year For Mechanism
Certificate:
CE
Arm Type:
Straight, Fencing, Folding
Power:
140W
Speed:
1.5~6s (adjustable)
Protection Grade:
IP 54
Working Temperature:
-35℃~+85℃
Max. Arm Lengt:
6 Meters
Highlight:

140W Vehicle Barrier Gate

,

IP44 Vehicle Barrier Gate

,

8M Boom Traffic Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
3,000 pcs per month
Product Description
Remote Control 140W IP44 8M Boom Vehicle Barrier Gate
Heavy Duty Vehicle Barrier Gate 50/60 Hz Vehicle Access Control 8 Meters Boom DC Brushless Motor
Product Overview
This 2nd generation brushless barrier gate incorporates advanced mold design technology, precision die-casting manufacturing, and brushless speed control technology. Featuring quick interchangeability and clutch-free design, it delivers superior reliability and user convenience. The movement system utilizes two-stage worm gear transmission with a curved crank arm three-link structure, ensuring fast and stable boom operation with easy maintenance and extended service life.
Key Specifications
  • Working temperature (motor): -35℃ to +85℃
  • Rated voltage: DC24V
  • Running speed: 1.5s-8s
  • Rated current: 8.58A
  • Rated power: 140W
  • No-load speed: 1850rpm
  • Rated speed: 1400rpm
  • Output Power: 56.8N.m
  • Relative humidity: ≤90%
  • Remote control distance: ≤100M (open area)
  • IP Rating: IP44
  • Maximum arm length: 6M
Advanced Functions
  • Quick arm direction interchangeability
  • Adjustable run speed from 0.9sec to 6sec (4sec lift for max 6m arm)
  • Automatic arm locking during power failure with manual motor wheel operation
  • Remote control operation capability
  • Auto-reverse safety feature when boom meets obstruction
  • Infrared photocells connector compatibility
  • Loop detector connector availability
  • Seamless integration with car parking systems (switch signal required)
  • Traffic light connector (AC220V, power less than 40W)
  • Dry contact signal output for parking systems (COM, NC, NO)
  • Adjustable auto-delay when closing
Installation Guidelines
  • Secure barrier controller inside machine case
  • Follow controller wiring connections (disconnect power before installation)
  • Verify reliable connections before closing control box
  • Position desktop remote on desk or wall mount with power connection
Performance Features
  • Adjustable running speed: 1.5s to 6s
  • Quick interchange capability
  • Manual operation via motor wheel during power failure with automatic reset
  • Curved crank arm three-link movement structure for stable operation
  • Wireless remote control open/close functionality
  • Adjustable force auto-reverse safety function
  • Infrared photocells and loop detector connectivity
  • Parking system integration with wire control
  • Traffic light and dry contact signal support
  • Adjustable auto-delay closing
  • Built-in RS485 or CAN network communication interface
  • Counting interface capability
  • 24V backup battery interface with solar charging compatibility
Arm Performance Specifications
Arm Type Arm Length (L) Operation Time (S) Height Between Arm and Ground (M)
Straight arm 6M≥L>5M 5S H=0.83M
Straight arm 5M≥L≥4.5M 4S
Straight arm 4.5M>L≥3M 3S
90 degree folding arm L≤5M 5S -
180 degree folding arm L≤5M 5S -
Two fence arm 5M≥L≥4M 6S H=0.9M
Two fence arm 4M>L≥3M 3S
Three fence arm 5M≥L≥4M 6S H=1.5M
Technical Parameters
Working temperature (motor) -35℃~+85℃
Rated voltage DC24V
Running speed 1.5s-6s
Rated current 8.58A
Rated power 140W
No-load speed 1850rpm
Rated speed 1400rpm
Output Power 56.8N.m
Relative humidity ≤90%
Remote control distance ≤100M (open place)
IP Degree IP54
Place of origin SHENZHEN CHINA
Product Images
140W IP54 8M Boom Automatic Vehicle Barrier Gate with Remote Control 0 140W IP54 8M Boom Automatic Vehicle Barrier Gate with Remote Control 1
Service & Support
Complimentary Services:
  • One year free service (mechanism)
  • Lifetime charged service availability
  • Technical support services
  • OEM customization: custom machine case, color, and logo according to specifications
  • Negotiable pricing for large order quantities
Charged Services Apply For:
  • Damage from improper installation
  • Damage from incorrect voltage application
  • Surface damage from improper installation and usage
  • Service items beyond warranty period
