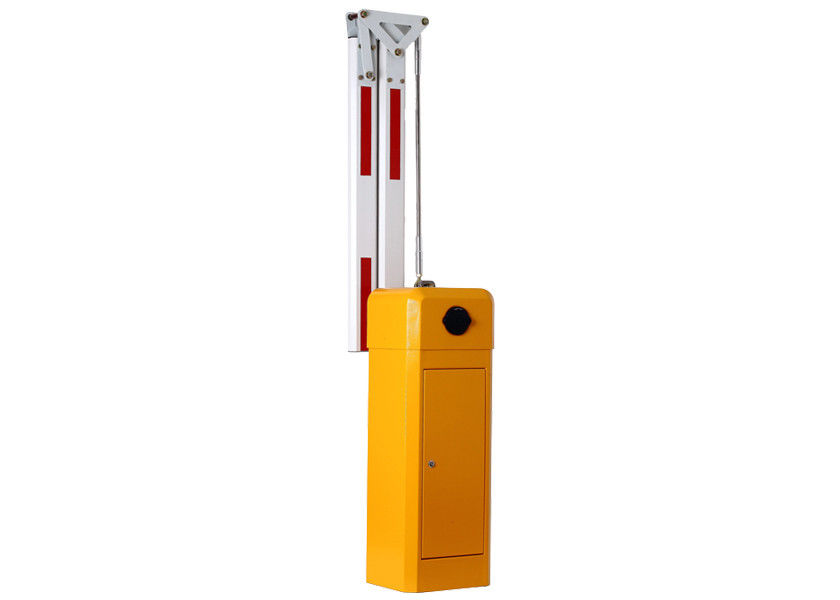

IP54 120W Cold Rolled Steel Vehicle Boom Barrier Automatic Parking Control System

IP54 120W Cold Rolled Steel Vehicle Boom Barrier Automatic Parking Control System

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BG102
Product Details
Material Thickness:
2mm
Arm Length:
3m To 6m
Boom Type:
Straight, Folding And Fencing Are Available
Warranty:
2 Year
Speed:
1s, 1.8s, 3s, 6s
Voltage:
220V/110V
Rated Power:
120W
Control Mode:
Remote Control, Wire Control
IP Rate:
IP54
Color:
Yellow, Orange, White, Red, Blace
Highlight:

IP54 Vehicle Boom Barrier Gate

,

120W Vehicle Boom Barrier Gate

,

Cold Rolled Steel Traffic Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, , D/A, L/C, D/P
Supply Ability
3,000pcs per month
Product Description
IP54 120W Vehicle Boom Barrier Gate Cold Rolled Steel Parking Control System
Product Overview
This 2.0mm thickness cold rolled mild steel parking control system vehicle boom barrier gate provides a secure and convenient solution for controlling vehicle access in high-traffic areas. Ideal for parking lots, toll gates, shopping centers, exhibition centers, hospitals, airports, and other facilities requiring reliable access control.
Available Colors
IP54 120W Cold Rolled Steel Vehicle Boom Barrier Automatic Parking Control System 0
Mechanism Design
IP54 120W Cold Rolled Steel Vehicle Boom Barrier Automatic Parking Control System 1
Model Specifications & Boom Options
Model No. (BG) Open/Close Speed Max Boom Length Boom Type
102-16 6 sec 6m straight boom
102-13 3 sec 4.5m straight boom
102-11 1 sec 3m straight boom
120-26 6 sec 5m 90 degree, Articulated boom
102-23 3 sec 3m 90 degree, Articulated boom
102-36 6 sec 5m 180 degree, Articulated boom
102-33 3 sec 3m 180 degree, Articulated boom
102-46 6 sec 4.5m Two-level, fence boom
102-56 6 sec 4m Three-level, fence boom
IP54 120W Cold Rolled Steel Vehicle Boom Barrier Automatic Parking Control System 2 IP54 120W Cold Rolled Steel Vehicle Boom Barrier Automatic Parking Control System 3
Product Details
IP54 120W Cold Rolled Steel Vehicle Boom Barrier Automatic Parking Control System 4
Technical Specifications
Open/Close Time: 1s, 1.8s, 3s, 6s (depends on arm length)
Arm Length: 3m-6m
Working Temperature: -35℃ to +75℃
MTBF: >5 million times
Power Supply: 220V±10% 50/60HZ or 110V±10% 50/60HZ
Rated Power: 120W
Relative Humidity: ≤90%
Remote Control Distance: >30M
Net Weight: 55KG
Key Features & Functions
  • Multiple housing color options: yellow, orange, white, red, blue, etc.
  • Adjustable beam length from 3 to 6 meters with corresponding closing times
  • Simplified design for easy installation and reduced maintenance costs
  • Pre-installed interfaces for infrared photocell, loop detector, and IC systems
  • Crank-arm linkage structure with compression spring for enhanced safety
  • Manual release device for operation during power failures
  • Die-casting aluminum alloy motor for high hermetic performance and heat dissipation
  • Integrated motor cooling fan to prevent overheating
  • Auto-closing functionality via control panel menu settings
  • Wire control and remote control options available
  • Compatible with RS 485 Communication Module (optional)
  • Boom swing-off protection for vehicle and boom safety (optional)
  • Alarm system for boom swing-off incidents (optional)
IP54 120W Cold Rolled Steel Vehicle Boom Barrier Automatic Parking Control System 5
Frequently Asked Questions
What's the monthly production capacity for barrier gate?
1000 units.
What is the warranty for the machine?
12 months.
When will you make the delivery?
Regular products: 2-7 days.
How does your factory control the quality?
Quality controlling from the beginning to the ending.
What is your MOQ?
Any quantity is acceptable.
Payment term?
30% deposit, 70% before delivery.
