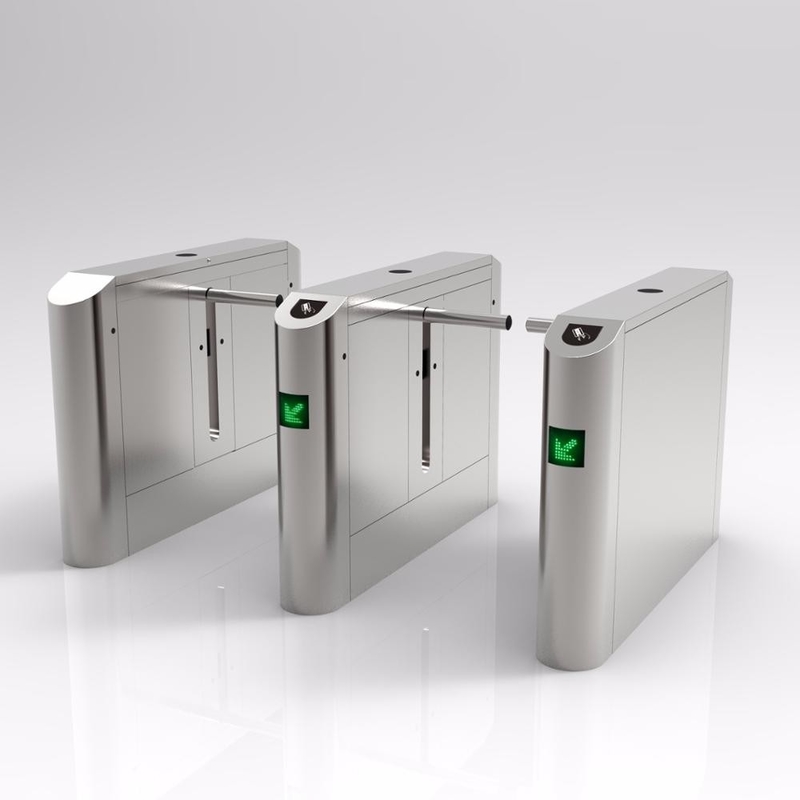

Centre Single Arm Security Turnstile Gate Member Control Biometric Recognition

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-DAB02
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 500 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Arm Opening / Closing Time 1S Arm Closing 1S
OEM/ODM Supported Arm Length 450mm(default)
Direction Single Or Bi-direction Size Of Housing 1200*165*1000mm
Max Flow Rate 25 To 30 Person Per Minute Material SS304
Package Wooden Box
High Light

turnstile barrier gate


speed gate turnstile


waist height drop arm gate

Leave a Message
Product Description

Fitness Centre Gym automatic single arm biometric access control waist height IP54 drop arm gate



1. Station, dock, site, school, supermarket entrance control management
2. Exhibition center, swimming pool, tourist attractions and other ticket entrance and exit control management
3. Enterprises and institutions attendance, access control, consumption entrance and exit control management
4. Special channel access control

Centre Single Arm Security Turnstile Gate Member Control Biometric Recognition 0






Description Parameters
Pass Speed 30 persons/min
Power supply AC220V/110V,50/60Hz
Drive Mode Motor drive
Max Power Consumption 40W
Humidity ≤90% coagulation free
Noise ≤50dB
Service Life 5,000,000 cycles
Outside packing 1200*165*980mm
Working Environment -20°C~+60°C
Gross Weight 70-80kg




Features & functions


1. Fault detection and alarm functions, easy to use and maintenance.
2. The running status can be programmed and controlled with the built-in keyboard on the main board.
3. Mechanical anti-pinch function.
4. Anti-breakthrough function. The gate is locked automatically until opening signal received.
5. Synchronization functions (for dual gates)
6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically.
7. Gate can be set as normally open or normally closed.
8. Can be used with variety of card readers: IC / ID card readers, barcodes, fingerprints, etc.

(Access controller needed).
9. Direction can be set as uni-direction or bi-direction.
10. LED direction indicator.
11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
13. Support infrared photocell for anti-pinch and reset function





Centre Single Arm Security Turnstile Gate Member Control Biometric Recognition 1

Centre Single Arm Security Turnstile Gate Member Control Biometric Recognition 2
