120 Degree Full Height Turnstile with 30 Person Per Minute Passing Rate and SS304 Frame
  • 120 Degree Full Height Turnstile with 30 Person Per Minute Passing Rate and SS304 Frame
  • 120 Degree Full Height Turnstile with 30 Person Per Minute Passing Rate and SS304 Frame
  • 120 Degree Full Height Turnstile with 30 Person Per Minute Passing Rate and SS304 Frame
120 Degree Full Height Turnstile with 30 Person Per Minute Passing Rate and SS304 Frame

120 Degree Full Height Turnstile with 30 Person Per Minute Passing Rate and SS304 Frame

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FH01
Product Details
Power Supply:
AC 220V/ AC110V ± 10%
Frame Material:
SS304
Transit Speed:
30 Person Per Min
Thickness Of Frame:
1.2 To 1.5mm
Arm Length:
500mm To 550mm
Unlock Time:
0.2S
Width Of Passage:
550mm To 600mm
Package:
Wooden Box
Control Voltage:
DC24V
Surface Treatment:
Brushed
Highlight:

turnstiles full height

,

full height barriers

,

full height pedestrian turnstiles SS304

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
100 pcs per month
Product Description

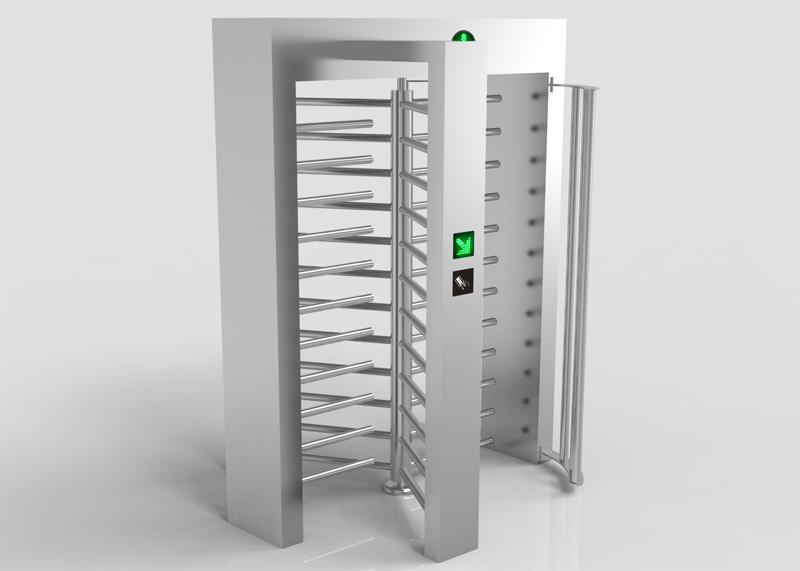

120 Degree Full Height Turnstile Gate System
High-security turnstile system with 30 persons per minute passing rate for intelligent pedestrian control and management.
Product Overview
This full-height turnstile gate system features robust mechanical construction designed for unsupervised access control in office buildings and restricted areas. The impenetrable design prevents unauthorized access while providing elegant, durable stainless steel construction with anti-oxidation properties.
Authorized passage requires valid card presentation to the access control system. The turnstile unlocks and allows directional passage upon verification. Compatible with push button, fingerprint, and facial recognition access control systems.
Full height turnstile gate system installation
Technical Specifications
Lane Width 550-600mm
IP Rating IP54
Passing Speed 25-30 persons/min
Power Supply AC220V/110V, 50/60Hz
Drive Mode Motor free
Max Power Consumption 200W
Opening Time 0.6S
Humidity ≤90% coagulation free
Noise Level ≤50dB
Service Life 5,000,000 cycles
Working Environment -20°C~+60°C
Gross Weight 350KGS
Turnstile gate technical details
Product Dimensions
Full height turnstile dimension diagram
Functions & Features
  • Low noise mechanism core with high cost-performance ratio
  • High operating efficiency with less than 1 second open & close time
  • Self-checking and maintenance alarm warning system
  • Automatic resetting cancels authorized pass if passenger delays
  • Anti-following function prevents illegal passing
  • Anti-clamp protection stops wings during external blockage
  • Automatic wing locking for non-compliant passage attempts
  • Multi-passage configuration for various application demands
  • Programmable signal control for pass time, speed, and parameters
  • Compatible with RFID card readers, fingerprint readers, and facial recognition systems
  • Long-distance management through computer interface
  • Customizable options: LED display, voice guidance, warning lamps, indicator lights, audible & visible alarms
Turnstile gate features and functions
Control & Interface Options
  • Card readers
  • Metal detection
  • Electronic/LCD counters
  • Fail-open or fail-secure locking
  • Push-button and wireless remotes
  • Manual key override in both directions
  • Indicator lights
Workshop Photos
Turnstile gate manufacturing workshop
Packing Photos
Turnstile gate packaging for shipment Secured turnstile gate packaging Turnstile gate ready for transport
How the Full Height Turnstile Access Control System Works
Turnstile access control system operation diagram
Case References
Turnstile gate installation case reference Turnstile gate deployment example
