Place of Origin | Shenzhen, China. |
Brand Name | SINOMATIC |
Certification | CE/ ISO |
Model Number | SN-HRB02 |

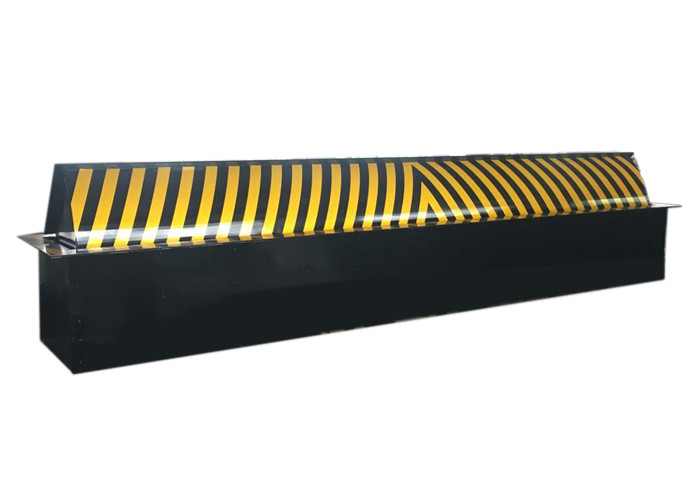

Airport Entrance Control Vehicle Stopper / Car Park Stoppers 380v Power Supply
Introduction
Sinomatic high quality hydraulic road blocker provides a high level of anti ram protection, and are installed on high security premises such as banks, embassies, depots, cargo parks, ports and lorry parks. Our Road Blockers are available in a range of different height, width and length.
100% duty cylce - designed for continuous and frequent use. Power is supplied from a three phase 380V power supply as standard.
Our hydraulic Road Blocker can be interfaced to any access control systems.
Traffic Light System is optional.
It is recommended that the Road Blocker's hydraulic control cabinet is installed within 10 metres from the blocker.
What's the hydraulic road blocker includes
road blocker machine body
The hydraulic road blocker machine is mainly composed of turn swivel or lifting body,housing base(anti-collision spike can be added according to your client`s requirement). The machine is made of steel,16mm international standard A3 carbon steel and the channel steel welded together,which has a high strength of bearing load and anti-collision. There is no electrical appliances and line setup inside the base housing. It is anti-proof and safe. The device is embedded in the driveway or the specified location of the gate.The personnel on duty will control the road blocker to limit the vehicle access
Hydraulic pump unit
Hydraulic station composed of oil tank, the manual oil pump, a full range of hydraulic solenoid valve group, the high power motor, oil pump,oil cylinder,oil gauge, high pressure hydraulic oil pipe and so on. It is the power source of a full set of road blocker system.The station is installed at the side of road blocker and work together with the road blocker( Can adjust the up and down speed through control valve).When power outrage, you can manually drop the blocker down and rise the blocker up.
Electronic control system
Automatic electronic control system parts: PLC control board,leakage switch, no exposure to noise high life contactor and other precise time-starting device( prevent the impact of the oil cylinder in place after movement and increase the service life of it)
Automatic controller: control box, remote controller,manual button. Those are controlled by the personnel on duty.
Why choose our hydraulic road blocker?
fast & stable operation
The lifting time is up to 3-6s(configurable), far outweigh the road blocker machine of the same specification of other manufactures. It is extremely rare. It adopts the hydraulic drive. Its movement is soft and quite,which just solve the problem of big noise of traditional pneumatic lifting pump.
PLC controlled
Control unit adopts PLC programmable controller,which can be a variety of different function models to meet the different needs of different users on function. In addition, its movement stroke is debug timing design. The user can freely adjust the height of the cover plate,effectively saving energy .
Unique structure & design
The core part of its unique design for the hydraulic unit and mechanical power can effectively pass the mechanical energy to hydraulic drive unit,which is efficient.
Safety & reliability
Power failure or other emergencies, you can manually descent the cover plate of the road blocker to leave a clear channel letting the vehicle access,which is stable and reliable.
Durable & affordable
Its hydraulic transmission mode, environmental protection and energy saving,low consumption,lower failure rate,longer service life reduced the maintenance costs. In addition, the installation and maintenance is more convenient and quicker by using untraditional mechanism design.
Specifications:
Product Name | hydraulic road blocker |
Driven | electromechanical-hydraulic driven |
Control | PLC controlled |
Compatible | with all types of access control and security systems |
Duty Rated | 100% duty rated |
Thickness | Heavy duty 10mm thick Durbar |
Power Supply | 380V |
Power Consumption | 3.7KW-5.5KW |
Passing Pressure | 100T Container Truck |
Lifting Time | 2~5S(adjustable) |
Falling time | 2~5S(adjustable) |
Emergency manual override | In case of power failure |
Communication | RS485≤1200M( access control system) |
Rising height | 500mm |
Frames | Continuously welded frames |
Working temperature | -35℃ to 75℃ |
