K12 Rated Roadway Safety Hydraulic Road Blocker Automatic Remote
Hydraulic road blocker:
1.Solid and endurable structure
3.Low-pressure hydraulic driving mode making the barrier low trouble rate,high reliability,long life cycle.
5.Can combine with other control equipment making the barrier auto control
6.Manual release is available for emergency operation
Features of hydraulic road blocker:
Specifications of hydraulic road blocker:
|Hydraulic road blocker
electric hydraulic control
380V( control voltage:24V)
3 ~ 5 s
3 ~ 5 s

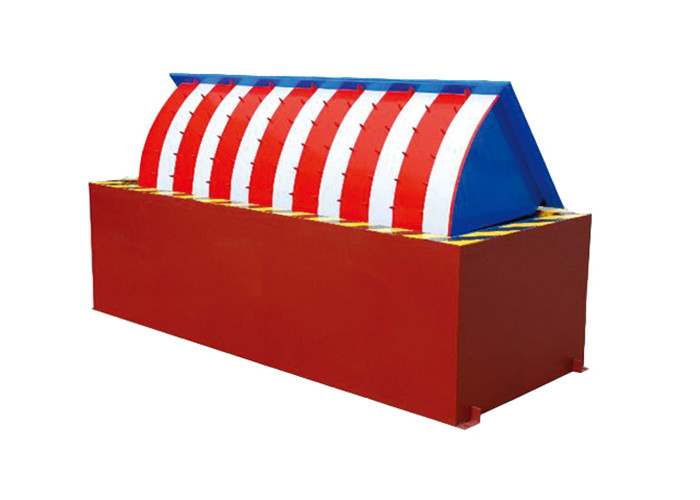

Photo of hydraulic road blocker:
1) Installation position
The road blocker should be installed on the user-specified vehicle entrance and exit. Hydraulic station,
according to the actual situation of the scene, installed in the appropriate location for easy operation
and maintenance, close to the road blocker (inside or outside of security room ). Control box should be
set in a place where is easy to control and operate according to the customer request (Next to the work
station of the personnel on duty).
2) Pipeline connection
2.1. There are 5 meters of the hydraulic pressure pipeline equipped, the exceeding part should be
charged. After confirmed the installation position of road blocker and hydraulic station (can know how
long the oil pipeline), we need to excavate foundation. When the foundation excavation, we should take
the terrain into consideration to arrange the trend of the hydraulic oil pipe and control wire. We should
ensure that pipeline is under the condition of no damage to other underground facilities, then buried it
safely. Make mark in the appropriate location, to avoid damage of pipelines when other construction
operations is implementing.
2.2,groove size of the pipeline should be based on the specific terrain. Under normal circumstances,
the embedded depth of the hydraulic pipeline is 10 ~ 30 cm and width 15 cm , the embedded depth of
wire is 5 ~ 15 cm, width is about 5 cm.
2.3.Threading pipe (PVC pipe) should be added to protect the controlling wire, so is the oil pipe.
