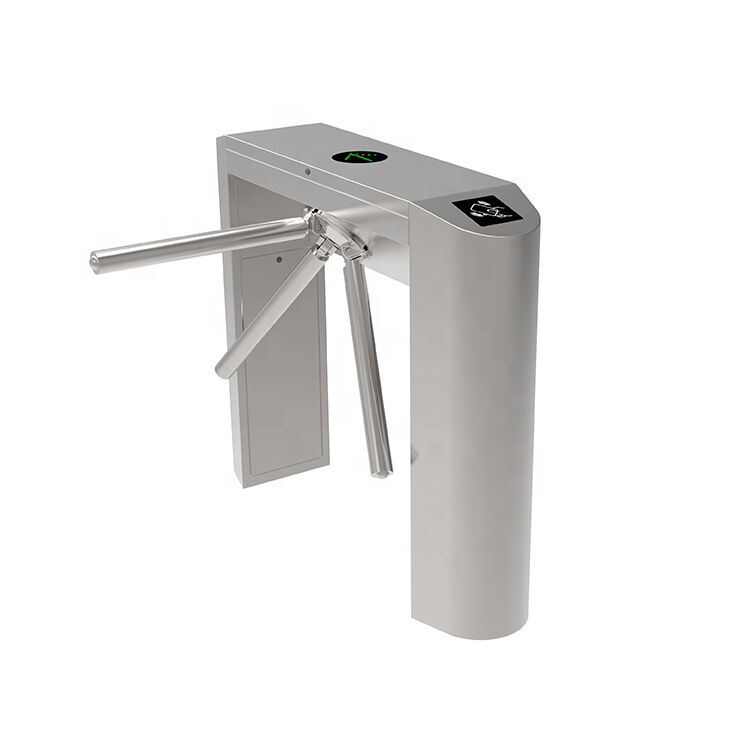

Outdoor IP54 304 Stainless Steel Drop Arm Turnstile with RFID Card Reader
  • Outdoor IP54 304 Stainless Steel Drop Arm Turnstile with RFID Card Reader
  • Outdoor IP54 304 Stainless Steel Drop Arm Turnstile with RFID Card Reader
  • Outdoor IP54 304 Stainless Steel Drop Arm Turnstile with RFID Card Reader

Outdoor IP54 304 Stainless Steel Drop Arm Turnstile with RFID Card Reader

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT02
Product Details
Framework Material:
304 Stainless Steel
Dimension:
1200 * 280 * 980mm
Net Weight:
80KG
Product Life:
5 Million Times
Surface Treatment:
Wire Drawing
Housing Thickness:
1.2mm
Highlight:

controlled access turnstiles

,

turn style door

,

IP 54 stainless steel tripod turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
3,000pcs per month
Product Description
Outdoor IP 54 Stainless Steel Framework Drop Arm Turnstile with RFID Card Reader
The standard tripod turnstile series are constructed from 304 stainless steel, offering rustproof durability and resistance to external damage. The cuboid framework and arm design provide organized pedestrian flow control while effectively preventing unauthorized access. In emergency situations, the arm automatically drops for safe egress. Available in full-auto, semi-auto, and manual control configurations.
Applications
Industrial facilities, corporate enterprises, residential gardens, public parks, amusement parks, entertainment centers, office buildings, exhibition centers, airports, seaports, railways, ski resorts, schools, museums, retail stores, supermarkets, and various other secured environments.
Key Features
  • Smooth system operation with long-life performance, high reliability, and rapid response
  • Anti-breakthrough protection - gate remains locked until valid opening signal received
  • Anti-trailing functionality - turnstile locks if unauthorized entry attempted without RFID card swipe
  • Integrated LED status indicator
  • Automatic reset function - cancels user authority if passage not completed within preset time (default 5 seconds)
  • Power-off automatic opening for fire safety compliance
Product Dimensions
Outdoor IP54 304 Stainless Steel Drop Arm Turnstile with RFID Card Reader 0
Technical Specifications
Item Specification
Power Supply AC220±10%V 50Hz/AC110±10% 60Hz
Power Consumption 40W
Access Device Input Voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Motor No motor
Maximum Flow Rate 25 to 30 persons per minute
Arm Length 510mm
Working Temperature -20°C to 60°C
Access Control System
Outdoor IP54 304 Stainless Steel Drop Arm Turnstile with RFID Card Reader 1
