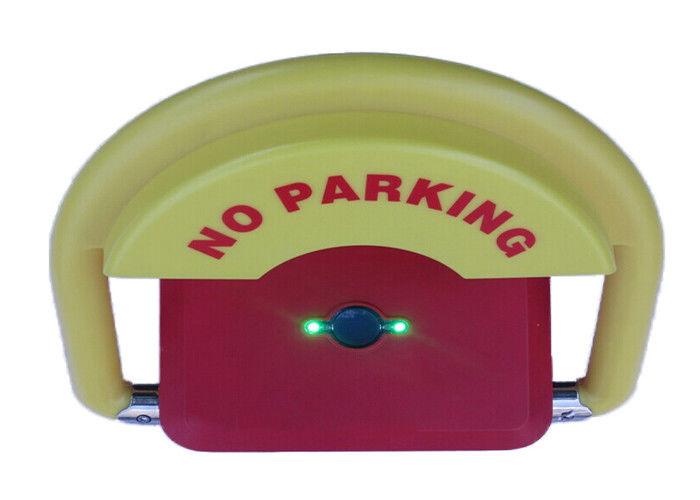

IP68 Waterproof Automatic Parking Lock with 5 Tons Load Capacity and Remote Control
  • IP68 Waterproof Automatic Parking Lock with 5 Tons Load Capacity and Remote Control
  • IP68 Waterproof Automatic Parking Lock with 5 Tons Load Capacity and Remote Control
  • IP68 Waterproof Automatic Parking Lock with 5 Tons Load Capacity and Remote Control
  • IP68 Waterproof Automatic Parking Lock with 5 Tons Load Capacity and Remote Control
IP68 Waterproof Automatic Parking Lock with 5 Tons Load Capacity and Remote Control

IP68 Waterproof Automatic Parking Lock with 5 Tons Load Capacity and Remote Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-PL01
Product Details
Battery Brand:
Champion
Down Dimension:
357*370*82.5mm
Current:
0.4A
Rising Time:
4-6S
Lowering Time:
4-6S
Up Dimension:
357*370*340mm
Highlight:

remote control parking lock

,

car parking space protector

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
3-7 working days after payment received
Payment Terms
T/T, Western Union, , , L/C, D/A, D/P
Supply Ability
5000 pcs per month
Product Description
Outdoor Waterproof Automatic Parking Lock
Remote control battery-powered automatic parking lock system for secure vehicle parking management.
Operation Overview
  • Parking lock rises to highest position when stall is vacant
  • Automatically lowers to ground level when vehicle occupies the stall
  • Remote control synchronization requires power cycle and simultaneous button press
  • In-vehicle operation possible with 1-2 second button press through windshield
    • Product Dimensions
    IP68 Waterproof Automatic Parking Lock with 5 Tons Load Capacity and Remote Control 0
    Technical Specifications
    BATTERY VOLTAGE DC12V, 7AH
    VERTICAL POSITION DIMENSION 357*370*340MM
    OPERATION CURRENT 0.4A
    RUNNING TIME 4S TO 6S
    REMOTE CONTROLLED DISTANCE ≤15m
    WORKING TEMPERATURE -35℃～+55℃
    MAX BEARING WEIGHT 5 TONS
    PROTECTION GRADE IP68
    NET WEIGHT 9.5KG
    Key Features
  • Easy Installation: Four pre-drilled bottom holes for straightforward mounting
  • Energy Efficient: High-quality Chinese battery provides up to six months of operation
  • Safety Designed: Anti-disconnect power connection prevents battery misplacement and short circuits
  • Durable Construction: Die-cast zinc alloy cabinet with protective varnish coating for weather resistance
  • Intelligent Repositioning: Automatic vertical repositioning after external force displacement
  • Quiet Operation: Bearing transmission motor design for minimal noise and reduced friction
  • Security Focused: Internal mounting bolts prevent unauthorized access
    • Installation Guidelines
    1. Position the parking lock at the center of the parking space
    2. Install on dry, smooth concrete surface free from radio signal interference
    3. Drill four 10x5mm holes and secure with provided expansion bolts
    IP68 Waterproof Automatic Parking Lock with 5 Tons Load Capacity and Remote Control 1
    Manufacturing Quality
    IP68 Waterproof Automatic Parking Lock with 5 Tons Load Capacity and Remote Control 2
    Package Contents
    Main Unit, Battery, Battery Charger, 2 Remote Controllers, 2 Release Keys, 4 Expansion Screws, English Instruction Manual
