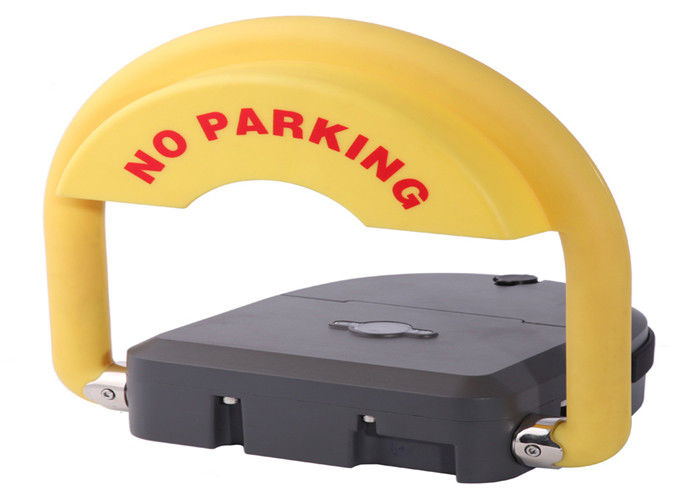

Energy Saving IP68 Waterproof Car Parking Lock with 5 Tons Load-Bearing Capacity
  • Energy Saving IP68 Waterproof Car Parking Lock with 5 Tons Load-Bearing Capacity
  • Energy Saving IP68 Waterproof Car Parking Lock with 5 Tons Load-Bearing Capacity
  • Energy Saving IP68 Waterproof Car Parking Lock with 5 Tons Load-Bearing Capacity
Energy Saving IP68 Waterproof Car Parking Lock with 5 Tons Load-Bearing Capacity

Energy Saving IP68 Waterproof Car Parking Lock with 5 Tons Load-Bearing Capacity

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-PL01
Product Details
Voltage:
DC 12V
Battery Voltage:
DC12V, 7Ah
Dimension:
357*370*82.5mm
Current:
0.4A
Rising Time:
4-6S
Lowering Time:
4-6S
Highlight:

remote control parking lock

,

car parking space protector

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
3-7 working days after payment received
Payment Terms
T/T, Western Union, , , L/C, D/A, D/P
Supply Ability
5000 pcs per month
Product Description
Energy Saving Car Parking Lock Device
User-friendly car park lock system for efficient parking management
Product Overview
Our parking lock represents the latest innovation in vehicle management technology. The cabinet features high-quality varnish coating with excellent gloss retention and fast color properties. Designed with aesthetic appeal and user convenience in mind, this product offers diverse functionality with safe, durable operation. Ideal for parking management in high-end residential areas, shopping malls, hotels, airports, and various commercial establishments.
Product Dimensions
Energy Saving IP68 Waterproof Car Parking Lock with 5 Tons Load-Bearing Capacity 0
Technical Specifications
Parameter Specification
Standard Voltage DC12V
Battery Voltage DC12V, 7AH
Dimension 357*370*340MM
Operation Current 0.4A
Running Time 4S to 6S
Remote Controlled Distance ≤15m
Working Temperature -35℃～+55℃
Max Bearing Weight 5 TONS
Protection Grade IP68
Net Weight 9.5KG
Key Features
  1. Energy Efficient: Equipped with premium Chinese battery technology providing up to six months of continuous operation
  2. Safety Optimized: Anti-disconnect power connection design prevents battery misplacement and short circuits
  3. Durable Construction: Die-cast zinc alloy cabinet with 5-ton load capacity and weather-resistant varnish coating
  4. Environmental Protection: IP68 rated enclosure ensures complete waterproof and dustproof performance
  5. Intelligent Positioning: Automatic repositioning system maintains vertical position under external force
  6. Quiet Operation: Bearing transmission motor design minimizes noise and extends component lifespan
  7. Security Enhanced: Internal mounting bolt configuration prevents unauthorized access
  8. Easy Installation: Four pre-drilled holes at cabinet base facilitate straightforward mounting
Operation Guide
  1. Parking lock rises to highest position when parking stall is vacant
  2. Parking lock lowers to ground level when vehicle occupies the stall
  3. Remote controller setup requires power cycle and simultaneous button press during indicator light sequence
  4. In-vehicle operation requires positioning controller near windshield with 1-2 second button press
