Place of Origin | Shenzhen, China. |
Brand Name | SINOMATIC |
Certification | CE/ ISO |
Model Number | SN-PL01 |

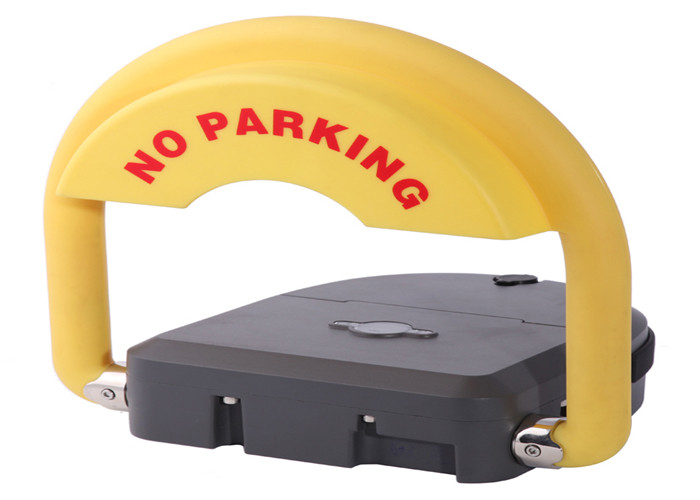

Energy saving Car parking lock device , user friendly car park lock
Product Introduction:
Parking lock is the newly-developed product by our company. The cabinet of the parking lock is
coated with high-class varnish with features of glossiness and fast color. The product has attributes
like beautiful and novel structure designing, user-friendly, diversified functions, safe and durable
operation. It is well applied for car parking management in areas like high-end residences,
shopping malls, hotels, airports and other commercial places.
Size:
Technical parameters:
STANDARD VOLTAGE |
DC12V |
BATTERY VOLTAGE |
DC12V, 7AH |
DIMENSION |
357*370*340MM |
OPERATION CURRENT |
0.4A |
RUNNING TIME |
4S TO 6S |
REMOTE CONTROLLED DISTANCE |
≤15m |
WORKING TEMPERATURE |
-35℃~+55℃ |
MAX BEARING WEIGHT |
5 TONS |
PROTECTION GRADE |
IP68 |
NET WEIGHT |
9.5KG |
Product Features
1. Energy-saving; the battery is a best product in China, power can last for half a year.
2. Safe; the power connection is anti-disconnecting design in case that the user misplaces the
battery causing short circuit; battery installation is easy.
3. Durable; the cabinet is made of die-casting Zinc alloy with high quality, and the maximum
weight of load-bearing is 5 tons; the cabinet is coated with varnish, being water-proof and
anti-rust in harsh weather. The sway arm is made of fiber-reinforced nylon, and it will not
deform even after car crushing.
4. Hermetic; the cabinet is tightly closed, and Protection Grade is IP68. It is waterproof and
dust-proof. It can be used broadly.
5. Intelligent self re-positioning; the external force could not change the sway arm position when
it is vertical; when the sway arm is forced to a horizontal position, it will re-position vertically,
unless the user uses remote control to put it horizontally.
6. Noise-free; bearing transmission design of the motor makes almost zero noise. It is beneficial
for battery and motor longevity and lesser friction.
7. Burglarproof; the mounting bolts are placed inside of the cabinet and without key, no one can
open it.
8. Installing friendly: four prepared holes at the bottom of the cabinet makes it easy to install.
Product Application
1, when there is no car in the parking stall, the parking lock will rise up to its highest position
2, when there is a car in the parking stall, the parking lock will fall down to its lowest position
3, if remote controller is needed, firstly you need to cut off the power and wait for three seconds;
secondly you should plug in power again, when the red light is on, press two buttons of controller
at the same time. At this moment, both red light and green light will be on, after the red is off, you
can the remote controller
4, if you want to control the parking lock in the car, you need to put it in the front of the
windscreen, and press the button for 1 or 2 seconds.
