Crash Rated Standard Car Park Bollards Retractable Anti Ram Vehicle Barriers
| Place of Origin | Shenzhen, China. |
|---|---|
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-HRB01 |
| Minimum Order Quantity | Sample order accepted |
| Price | negotiable |
| Packaging Details | Carton/Plywood box/Pallet |
| Delivery Time | 5-7 working days after payment received |
| Payment Terms | T/T, Western Union, MoneyGram, L/C, D/A, D/P |
| Supply Ability | 1000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material Of Bollard | 304 Or 316 Stainless Steel Or Carbon Steel | Protection grade | IP68 |
|---|---|---|---|
| Anti-collision level | K4, K8 And K12 | Package | Wooden Box |
| Bollard Diameter | 168/219/273/324mm | Warranty | 1 Year |
| Bollard Height | 600/800/1000mm | Bollard Thickness | 6/8/10/12/15/20mm |
| High Light | hydraulic rising bollards,automatic driveway bollards |
||
Product Description

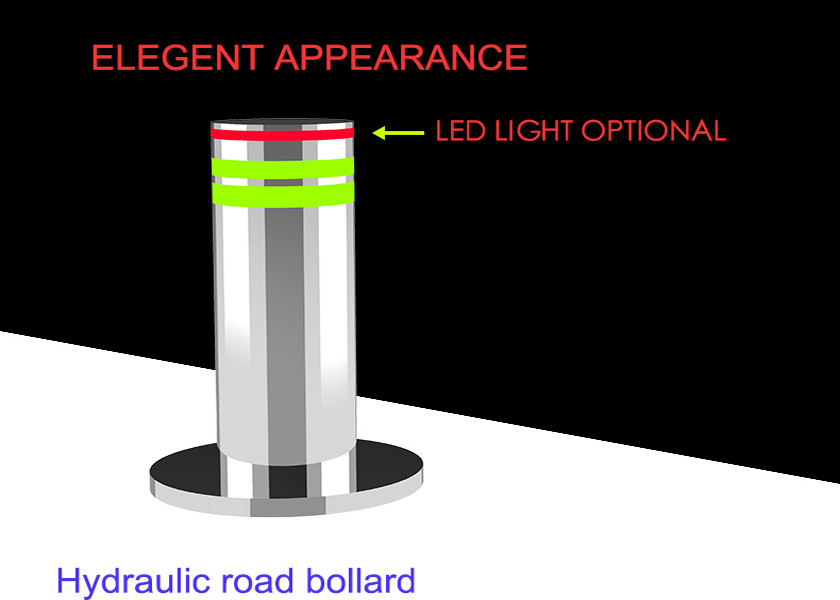

Crash Rated Standard Car Park Bollards Retractable Anti Ram Vehicle Barriers
GENERAL INTRODUCTION
We focus on high security products to protect borders, perimeters, and governments, including critical infrastructure.
Our products protect industrial and commercial facilities, military bases, prisons, airports, power plants, power substations,
refineries, corporate headquarters, and embassies.
We excels in creating integrated high security, anti-terrorist access systems, and our goal is always to meet the needs
of their customers and to provide them with better barrier solutions. Innovative new product lines allow sinomatic to revolutionize
the industry and provide customers with new solutions for asset security.
FEATURE & FUNCTIONS
1. System:electric-hydraulic system
2. Max passing pressure: 80T to 120T trucks
3. Voltage:AC220V 50Hz Integrated
4. Power(w):300W Integrated
5. Up time:3-6S
6. Down time:3-6S
7. Working temperature:-65℃~75℃
8. Storage Environment:-10℃~65℃, water-proof, damp-proof,dust-proof.
9. Material:304 stainless steel
10. Rising height:600mm(standard) Max can be 1000mm
11. Bollard Thickness: 6mm (standard), 8mm, 10mm, 12mm, 20mm optional
12. Diameter:219(Standard) 273mm(optional)
13. Structure : With load-bearing steel beam column, anti-collision steel
beam column
14. LED light (optional)
15. Reflective sticker: 2 strips
16. Link-control interface
17. In case of a power outage, the bollards can be manually lowered down
18. IP rate: IP68
19. Weight:150±KG Integrated
20. In rising and falling, reversible operation is available
TECHNICIAN PARATERS
| Drive unit | Hydraulic |
| Material | 304 stainless steel |
| Diameter | 168mm, 219mm, 273mm, 324mm |
| Rising height | 600mm, 800mm, 1000mm |
| Thickness | 6/8/10/12/15/30mm |
| Raising / lowering time | 3s |
| Weight load | 120t |
| Ingress Protection | IP68 |
| Working voltage | AC110/220V |
| Working power | 350W |
| Working temperature | -35 °C -75 °C |
CASE REFERENCE
