Electric Remote Control Car Parking Lock with DC6V Battery and Anti Theft Protection
  • Electric Remote Control Car Parking Lock with DC6V Battery and Anti Theft Protection
Electric Remote Control Car Parking Lock with DC6V Battery and Anti Theft Protection

Electric Remote Control Car Parking Lock with DC6V Battery and Anti Theft Protection

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-6E
Product Details
Battery Voltage:
DC6V, 7Ah
Static Current:
3.5MA
Working Current:
3.5A
Rising Time:
6S
Lowering Time:
6S
Remote Control Distrance:
15m
Highlight:

remote control parking lock

,

car parking space protector

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
USD 120 to 150 / set
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
3-7 working days after payment received
Payment Terms
T/T, Western Union, , , L/C, D/A, D/P
Supply Ability
3,000pcs per month
Product Description
Electric Remote Control Car Parking Lock
Anti-Theft Parking Space Protector
Protect your dedicated parking space with our electric remote control parking lock. This robust security solution stands guard while you and your vehicle are away, ensuring no unauthorized vehicles can occupy your parking space.
Technical Specifications
Rated Voltage DC6V
Working Current 3.5A
Rising/Falling Time 6 seconds
Rising Height 430mm
Dropping Height 80mm
Remote Control Distance ≤15m
Operating Temperature -20℃～+55℃
Solar Panel Size 130×60×4.3mm
Dimensions 520×460×80mm
Net Weight 9kg
Functional Features
  • Manual Control: Operate manually during power shortages by pulling/pressing the rocking arm for battery access and maintenance
  • Automatic Power Cut-off: Safely shuts down when encountering resistance to protect the electrical motor
  • Power Indicator: Visual warning system alerts when battery requires recharging
  • Anti-Tamper Alarm: Audible alarm activates when rocking arm is forced, with automatic reset after 5-7 seconds
  • Theft Protection: Secure external cover with key access prevents unauthorized removal
Product Images

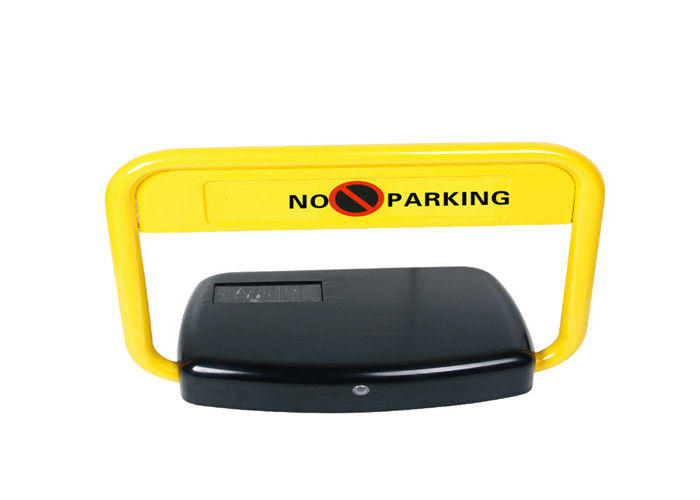

Electric Remote Control Car Parking Lock with DC6V Battery and Anti Theft Protection 0 Electric Remote Control Car Parking Lock with DC6V Battery and Anti Theft Protection 1
Installation Guide
Installation Principles
Position the parking lock in the middle of the parking space entrance to ensure vehicles can enter and exit without contact. Installation requires level, dry cement ground for optimal performance.
Installation Steps
  1. Manually lift the rocking arm and unlock the cover using the provided key
  2. Drill three 12mm diameter holes (50mm depth) and install M8 expansion bolts according to foundation hole positions
  3. Place foundation spacers over bolts, position parking lock foundation, and tighten securely
  4. Connect solar panel wiring to battery terminals (red to positive, blue to negative), position battery level, and plug into parking lock socket
  5. Install upper cover by engaging fixed blocks and locking with key

Tags:

remote control parking lock,

car parking space protector,

automatic parking lock
