304 Stainless Steel Flap Barrier Gate with Synchronization Controlled Access and 25 to 30 Person Per Minute Flow Rate
  • 304 Stainless Steel Flap Barrier Gate with Synchronization Controlled Access and 25 to 30 Person Per Minute Flow Rate
304 Stainless Steel Flap Barrier Gate with Synchronization Controlled Access and 25 to 30 Person Per Minute Flow Rate

304 Stainless Steel Flap Barrier Gate with Synchronization Controlled Access and 25 to 30 Person Per Minute Flow Rate

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB01
Product Details
Size Of Housing:
1200*300*1000mm
Flap Length:
270mm
Material Of Housing:
304 Or 316 Stainless Steel
Flap Material:
Acrylic
Arm Length:
270mm
Direction:
Single Or Bi-direction
Max Flow Rate:
25 To 30 Person Per Minute
Surface Treatment:
Wire Drawing
Highlight:

waist high turnstile

,

flap turnstile

,

Synchronization Controlled Access Turnstiles

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description

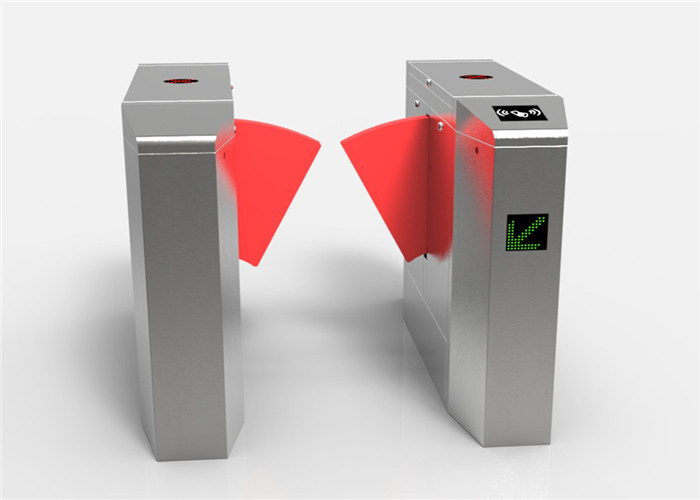

304 Stainless Steel Flap Barrier Gate
Synchronization Controlled Access Turnstiles
Crowd Control System 304 Stainless Steel Flap Barrier Gate With Red Retractable Foam Flap
Flap Barrier Gate Introduction
  • Failure detection and alarm functions
  • Flow direction guide with high bright LED lamp
  • Normal close or normal open (for group pass)
Applications
Sinomatic flap barrier gates are designed to control pedestrian entering and exiting, featuring 304 stainless steel construction that is dust-proof and rust-proof. Easy to integrate with other read/write devices, these gates are widely used for applications including stadiums, apartments, gyms, museums, stations, libraries, and factories.
Key Features
  • Fault detection and alarm functions for easy use and maintenance
  • Programmable running status controlled with built-in keyboard on main board
  • Mechanical anti-pinch function with automatic motor shutdown and reset
  • Anti-breakthrough function with automatic locking until opening signal received
  • Synchronization functions for dual gate equipment
  • Automatic reset function cancels authority after prescribed time
  • Configurable as normally open or normally closed
  • Compatible with various card readers: IC/ID card readers, bar codes, fingerprints (access controller needed)
  • Direction setting as single-direction or bi-direction
  • LED direction indicator
  • Automatic opening when power off and closing when power on for fire safety compliance
  • Alarm function for illegal intrusion and reverse intrusion
  • Optional counter function
  • Support for infrared photocell anti-pinch and reset function
Technical Specifications
Item Specification
Power supply AC220±10%V 50Hz/AC110±10% 60Hz
Access device input voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Motor voltage DC 24V (brush motor)
Max flow rate 25 to 30 persons per minute
Flap opening / closing time 1s
Reset time when power on 3s
Working temperature -20°C~60°C
Product Case
304 Stainless Steel Flap Barrier Gate with Synchronization Controlled Access and 25 to 30 Person Per Minute Flow Rate 0
Why Choose Our Flap Barrier Gates
  1. 13 years OEM/ODM experience in access control turnstile and barrier manufacturing
  2. Prompt delivery with standard model stock availability
  3. OEM/ODM orders accepted to meet client requirements
  4. Trial orders available for testing before bulk orders
  5. Online technical support for carefree business partnership
  6. Multiple transportation options: sea shipment, air cargo, or express delivery
  7. Factory visits welcome on working days
