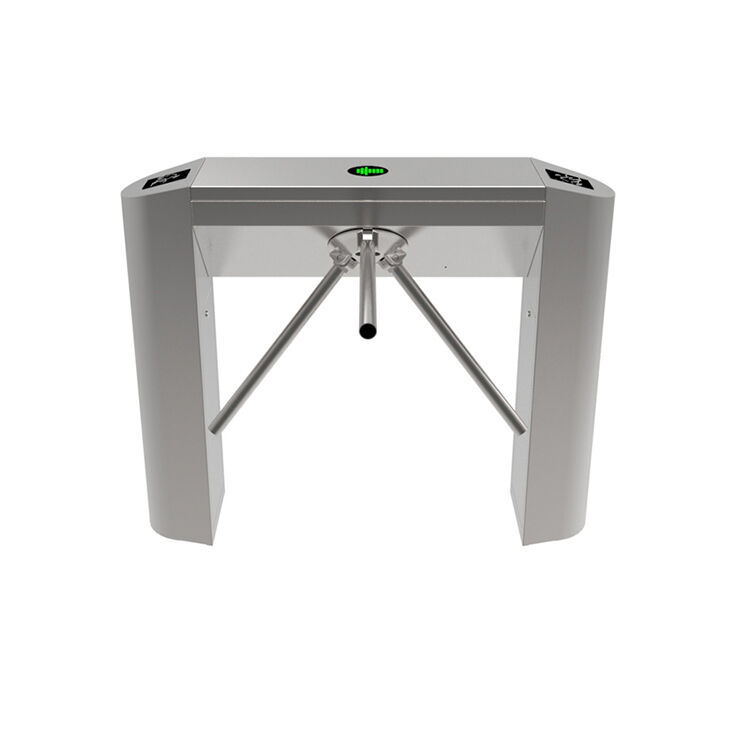

304 / 316 Stainless Steel Mechanical Drive Tripod Turnstile Gate with 510mm Arm Length
  • 304 / 316 Stainless Steel Mechanical Drive Tripod Turnstile Gate with 510mm Arm Length
  • 304 / 316 Stainless Steel Mechanical Drive Tripod Turnstile Gate with 510mm Arm Length
  • 304 / 316 Stainless Steel Mechanical Drive Tripod Turnstile Gate with 510mm Arm Length
304 / 316 Stainless Steel Mechanical Drive Tripod Turnstile Gate with 510mm Arm Length

304 / 316 Stainless Steel Mechanical Drive Tripod Turnstile Gate with 510mm Arm Length

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT02
Product Details
Power Consumption:
40W
Standard:
European Standard
Max Flow Rate:
25 To 30 Person Per Minute
Material Of Housing:
304 Or 316 Stainless Steel
Arm Length:
510mm
Product Life:
5 Million Times
Surface Treatment:
Wire Drawing
Highlight:

stainless steel turnstile

,

turn style door

,

316 Stainless Steel Three Roller Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
3,000pcs per month
Product Description
Mechanical 304 / 316 Stainless Steel Turnstile Three Roller Gate For Railway
1200mm length 316 stainless steel mechanical drive three roller gate with OEM/ODM service
Control Interface
  • Two-Way (PASS1.PASS2) dry contact (or level) control signal input for controlling electromagnets and legal signal indicating lights
  • Two-Way (FAL1, FAL2) dry contact (or level) status input for illegal signal indicating light control
  • Two-Way DC12V (DOOR1, DOOR2) legal connection for various controllers and consumption devices
Applications
Sinomatic tripod turnstile gate model SN-TT02 is designed for indoor usage (outdoor requires tent installation). This economical solution is ideal for railway stations, bus stations, factories, colleges, commercial buildings, libraries, stadiums, game parks, banks, and similar facilities.
Key Features
  • Mechanical drive unit with solenoid locking mechanism eliminates expensive electric motors and reduces maintenance costs
  • Automatic rotation: rotates to next idle position if arm moves more than half, returns to current position if less than half
  • Built-in adjustable tensioner controls rotation force to minimize over-rotation
  • Light push operation suitable for elderly and children
  • Configurable as bi-directional or uni-directional operation
  • Special key-locked housing prevents tampering
  • Innovative mounting surface for simple installation
  • Compatible with various access control devices: IC/ID card readers, barcode scanners, fingerprint readers (access controller required)
  • Automatic reset function cancels user authority if passage not completed within preset time (default 5 seconds)
  • Automatic regulated hydraulic buffer device ensures quiet, impact-free operation
Technical Specifications
Power Supply AC220±10%V 50Hz/AC110±10% 60Hz
Power Consumption 40W
Access Device Input Voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Motor No motor
Maximum Flow Rate 25 to 30 persons per minute
Arm Length 510mm
Working Temperature -20°C to 60°C
Installation Cases
304 / 316 Stainless Steel Mechanical Drive Tripod Turnstile Gate with 510mm Arm Length 0
Why Choose Our Turnstile Gates
  • Over 20 years of OEM/ODM experience in access control turnstiles and barriers
  • Prompt delivery with standard model stock availability
  • Custom OEM/ODM orders to meet specific client requirements
  • Trial orders and sample testing available before bulk orders
  • Comprehensive online technical support
  • Multiple transportation options: sea shipment, air cargo, or express delivery
  • Factory visits welcome on working days
