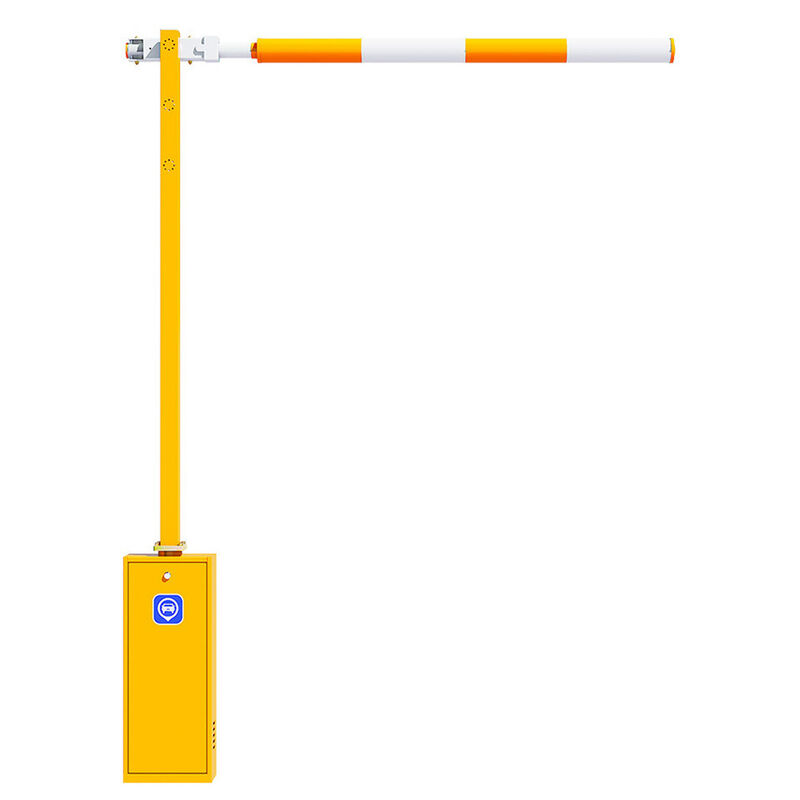

Brushless Motor Barrier Gate with IP54 Protection and Adjustable Speed for Height Restriction Toll Applications
  • Brushless Motor Barrier Gate with IP54 Protection and Adjustable Speed for Height Restriction Toll Applications
  • Brushless Motor Barrier Gate with IP54 Protection and Adjustable Speed for Height Restriction Toll Applications
  • Brushless Motor Barrier Gate with IP54 Protection and Adjustable Speed for Height Restriction Toll Applications
Brushless Motor Barrier Gate with IP54 Protection and Adjustable Speed for Height Restriction Toll Applications

Brushless Motor Barrier Gate with IP54 Protection and Adjustable Speed for Height Restriction Toll Applications

Place of Origin Shenzhen，China
Brand Name SINOMATIC
Certification CE, ISO, UL
Model Number DZ-2545
Product Details
Operating Speed:
1.5 S ~ 8 S (Adjustable)
Drive Type:
Brushless Motor
Max Arm Length:
6m Straight Arm/4.5m Two Fence Arm
Remote Control Distance:
≤ 100 M (Open Area, Clear Weather)
Protection Rating:
IP54
Motor No-Load Speed:
1850 RPM
Compatible Boom Length:
3m ~ 4m
Housing Dimension:
290*140*744mm
Payment & Shipping Terms
Minimum Order Quantity
10 PCS
Price
Negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5~8 working days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,Alipay,Paypal,Credict card
Supply Ability
3,000 pcs per month
Product Description
Height Restriction Toll Barrier Gate
Space Limit DC Brushless Adjustable Height Vehicle Traffic Access Control Parking Barrier Gate designed to prevent overhead collisions at warehouse, factory, garage, and logistics park entrances by blocking over-height vehicles.
Product Overview
  • Height limit adjustable design prevents overhead collisions
  • Pure copper rare earth brushless motor for low power consumption and 24-hour continuous use
  • Three-stage quenched gear transmission for smooth, quiet operation
  • Speed adjustable from 1.5s to 8s with slow up/down buffer
  • 0 to 90 degree limit angle with left/right arm swap capability
  • Self-developed ST chip controller with dedicated barrier algorithm
  • Abundant IO ports for loop detector, radar, photocell, traffic light, and fire alarm connections
  • RS485 port for intelligent parking system integration
  • Custom thick copper transformer power supply for voltage stabilization
  • IP54 dustproof/waterproof rating for harsh environments
  • Multi-safety protection with auto-reverse and manual crank release
  • Wear-resistant alloy transmission parts for millions of cycles
  • Fits 2.2m to 4m height limit straight arm with optional LED warning light
  • Integrated hoisting core for easy installation without welding
  • 433MHz anti-copy remote with 100m range and anti-tailgating features
Product Advantages
  • Advanced Mechatronics Design: Compact side-mounted structure for quick assembly and maintenance
  • Precision Molding Production: High manufacturing precision and guaranteed quality
  • Worm-Gear Transmission: Secondary variable speed transmission with manual operation capability
  • DC Brushless Motor: Low power consumption, high efficiency, and wide speed adjustment range
  • Hall Limit Technology: Automatic limit detection without debugging requirements
  • Curved Triple Connecting Rod: Ensures arm stability with easy balance adjustment
  • Quick Direction Interchange: Adaptable to different construction site requirements
  • Advanced Controller: Integrated chip drive with fast processing and 24V low voltage safety
Technical Specifications
Parameter Specification
Operating Temperature -35°C ~ +80°C
Power Supply 24/100/240 VAC, 50/60 Hz
Operating Speed 1.5 s ~ 8 s (Adjustable)
Rated Power 120 W
Drive Type Brushless Motor
Relative Humidity ≥ 90%
Remote Control Distance ≤ 100 m (Open Area, Clear Weather)
Protection Rating IP54
Motor No-Load Speed 1850 RPM
Compatible Boom Length 3 m ~ 4 m
Height Restriction Toll Barrier Gate installation and operation
Main Functions & Features
  • Adjustable operation speed
  • Adjustable slow up and slow down
  • Adjustable limit angle
  • Quick left and right direction interchange
  • Manual operation during power failure
  • 433MHz frequency learning code anti-copy remote controller
  • Infrared photocell sensor IO signal input function
  • Loop detector and radar IO signal anti-collision function
  • Up, down and stop IO signal input function
  • Counting function
  • LED light IO signal output function
  • Traffic light IO signal output function
  • Up and down in place signal output function
  • RS485 communication output function
  • Delay arm drop function
  • Arm auto-reverse function
  • Automatic lifting function when power is off
  • IO port single-key cycle up and down function
  • One car one arm anti-tailgating function
  • Anti-collision alarm function
  • Fire linkage signal input function
  • Fleet (Peak Mode) operation
