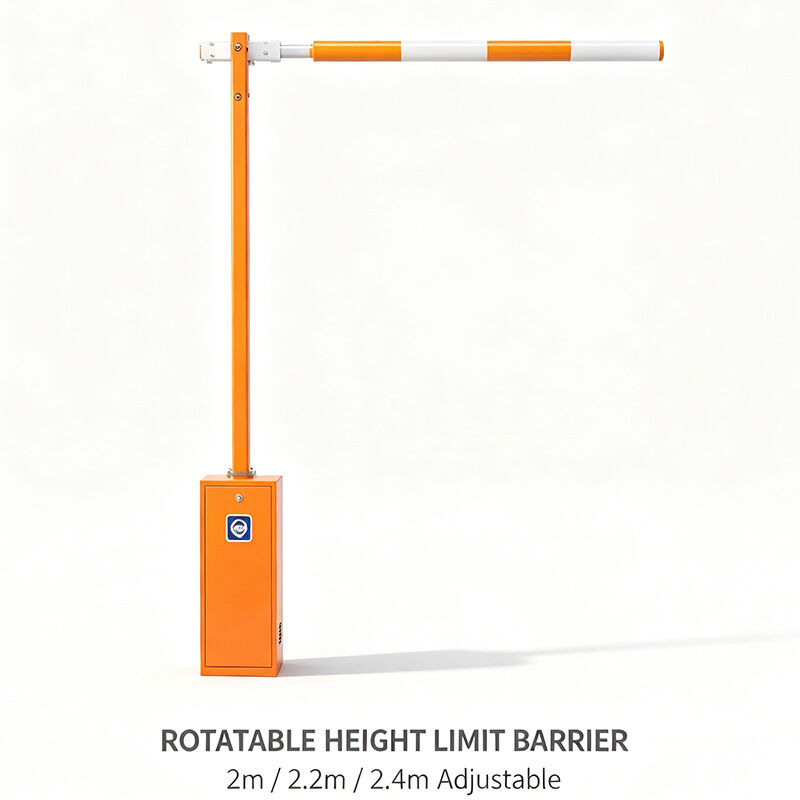

Space Limit DC Brushless Adjustable Height Vehicle Traffic Access Control Parking Barrier Gate
Product Overview
Height limit adjustable design blocks over-height vehicles to prevent overhead collision at warehouse, factory, garage and logistics park entrances.
Pure copper rare earth brushless motor runs low power, low heat for 24h continuous use, cutting daily energy cost.
Three stage quenched gear transmission delivers smooth quiet operation, suitable for residential, office and industrial areas.
Speed adjustable from 1.5s to 8s with slow up, slow down buffer, 0 to 90 degree limit angle, left right arm swap without extra parts.
Self developed ST chip controller owns dedicated barrier algorithm, fast signal response, anti interference, real time fault code display for quick troubleshooting.
Abundant IO ports connect loop detector, radar, photocell, traffic light, fire alarm. RS485 port links intelligent parking system.
Custom thick copper transformer power supply stabilizes voltage to shield motor and control board.
IP54 dustproof waterproof works -35℃ to 85℃ under humidity below 90 percent, fit seaside, high temp and cold regions.
Multi safety protection, auto reverse when obstacles detected, manual crank release for power outage, fire signal triggers full arm lift. Wear resistant alloy transmission parts support millions of cycles, thick anti rust cabinet stays intact under long outdoor exposure.
Fits 2.2m to 4m height limit straight arm, optional LED warning light for night visibility.
Integrated hoisting core simplifies installation, no welding needed, easy disassembly without special tools.
433mhz anti copy remote reaches 100m open distance, built in one car one arm anti tailgating and fleet counting mode to optimize rush hour traffic management.
Main Functions & Features
Operation speed can be adjusted
Slow up and slow down can be adjusted
The limit angle can be adjusted
Left and right direction can be quickly interchanged
The barrier arm can be manually operated in case of power failure
433MHz frequency learning code anti-copy remote controller
Infrared photocell sensor IO signal input function
Loop detector and radar IO signal anti-collision signal input function
Up, down and stop IO signal input function
Counting function
LED light IO signal output function
Traffic light IO signal output function
Up and down in place, normally open and normally closed signal output function
RS485 communication output function
Delay arm drop function
Arm auto-reverse function
Automatic lifting function when power is off
IO port single-key cycle up and down function
Loop detector normally open and normally closed function
One car and one arm to prevent toll evasion function
Anti-collision alarm function (requires additional fee for alarm and sensor)
Fire linkage signal input function
The IO port closes the signal input function
Fleet (Peak Mode)
