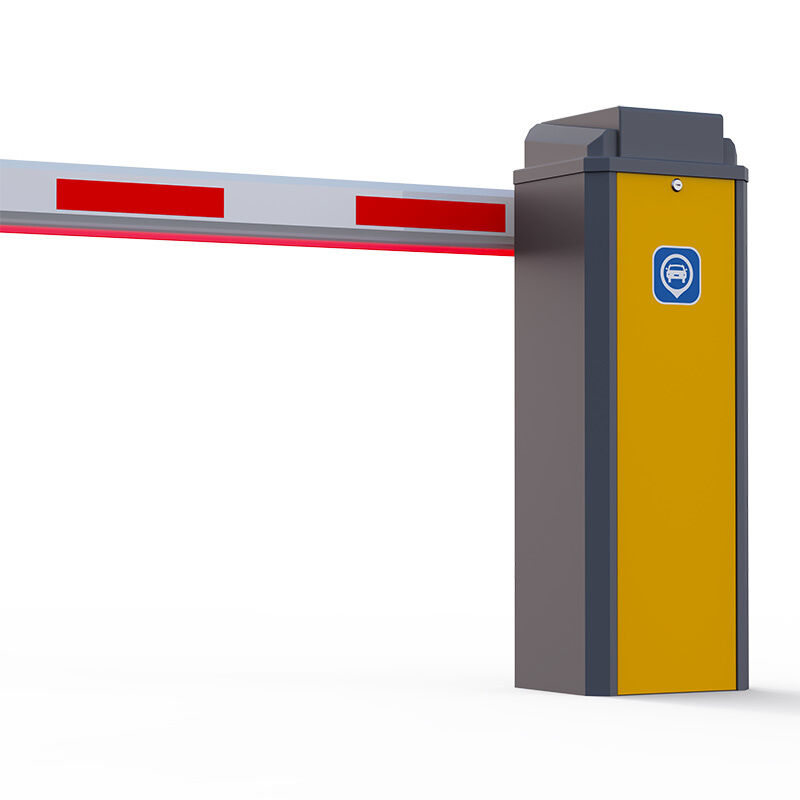

High Speed 200W DC Brushless Motor Barrier Gate with Remote Control for Automatic Parking Boom
  • High Speed 200W DC Brushless Motor Barrier Gate with Remote Control for Automatic Parking Boom
  • High Speed 200W DC Brushless Motor Barrier Gate with Remote Control for Automatic Parking Boom
  • High Speed 200W DC Brushless Motor Barrier Gate with Remote Control for Automatic Parking Boom
High Speed 200W DC Brushless Motor Barrier Gate with Remote Control for Automatic Parking Boom

High Speed 200W DC Brushless Motor Barrier Gate with Remote Control for Automatic Parking Boom

Place of Origin Shenzhen，China
Brand Name SINOMATIC
Certification CE, ISO, UL
Model Number DZ-2129
Product Details
Voltage:
220V/110V
Fetures:
Heavy Duty, Swing Out, Remote Control
Life Cycle:
More Than 5 Million Times
Car Parking:
Vehicle Barrier Gate
Max Arm Length:
6m Straight Arm/4.5m Two Fence Arm
Motor Type:
DC Brushless Motor
Housing Material:
Iron
Telescopic Boom:
Optional
Payment & Shipping Terms
Minimum Order Quantity
10 PCS
Price
Negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5~8 working days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,Alipay,Paypal,Credict card
Supply Ability
3,000 pcs per month
Product Description
High Speed 1.2S-3S DC Brushless Barrier Gate 200W Patented Automatic Parking Boom Gate Barrier With Remote Control
Product Overview

Thank you for purchasing our 4th generation brushless barrier gate product. This advanced electromechanical integrated device features compact size, low noise, high efficiency, wide speed regulation range, and minimal steady-state speed error. Equipped with the 4th generation gearbox specifically designed for barrier gates, it offers multiple speed ratio options, smooth operation, and higher transmission efficiency with customized gears, ensuring exceptional stability.

Product Advantages
  • Advanced Mechatronics Design: Compact side-mounted structure for quick assembly and easy maintenance
  • Precision Molding Production: High manufacturing precision, fast production efficiency, and guaranteed quality
  • Worm-Gear Transmission: Secondary variable speed transmission with high precision, long lifespan, and manual operation capability during power outages
  • DC Brushless Motor: Low power consumption, high efficiency, no overheating, and wide speed adjustment range
  • Hall Limit Technology: Automatic limit detection upon power-up without debugging requirements
  • Curved Triple Connecting Rod: Ensures arm stability in vertical and horizontal positions with easy balance adjustment
  • Quick Direction Interchange: Easily adaptable to different construction site requirements
  • Advanced Controller: Integrated chip drive with fast processing, large memory, and 24V low voltage safety
Technical Specifications
Product Name 4th Generation DC Brushless Barrier
Model DZ-2129
Cabinet Size 340×300×1047(mm)
Working Temperature -35℃ to +85℃
Power Supply AC110V/220V; DC24V
Open/Close Speed 1.2s-3s (Adjustable)
Rated Power 200W
Driving Method DC brushless motor
Humidity ≤90%
Remote Control Distance ≤100m (open, sunny weather)
Protection Grade IP54
Motor No-load Speed 1850r/min
Max Boom Length 3m-4m
Main Functions & Features
Operation speed can be adjusted
Slow up and slow down can be adjusted
The limit angle can be adjusted
Left and right direction can be quickly interchanged
The barrier arm can be manually operated in case of power failure
433MHz frequency learning code anti-copy remote controller
Infrared photocell sensor IO signal input function
Loop detector and radar IO signal anti-collision signal input function
Up, down and stop IO signal input function
Counting function
LED light IO signal output function
Traffic light IO signal output function
Up and down in place, normally open and normally closed signal output function
RS485 communication output function
Delay arm drop function
Arm auto-reverse function
Automatic lifting function when power is off
IO port single-key cycle up and down function
Loop detector normally open and normally closed function
One car and one arm to prevent toll evasion function
Anti-collision alarm function (requires additional fee for alarm and sensor)
Fire linkage signal input function
The IO port closes the signal input function
Fleet (Peak Mode)
Automatic barrier gate installation diagram Barrier gate technical specifications and components
Service & Support

One Year Free Service: Comprehensive servicing provided (arm components excluded)

Lifetime Service: Ongoing charged servicing available

Technical Support: Professional technology servicing included

Charged Service Conditions
  • Wrong installation damage
  • Improper voltage issues
  • Surface damage from incorrect use
  • Natural disaster damage
  • Overdue servicing
  • Items outside our service promises
