Fast Operating Automatic Barrier Gate with 4th Generation Brushless Motor and Remote Control for Vehicle Access
  • Fast Operating Automatic Barrier Gate with 4th Generation Brushless Motor and Remote Control for Vehicle Access
  • Fast Operating Automatic Barrier Gate with 4th Generation Brushless Motor and Remote Control for Vehicle Access
  • Fast Operating Automatic Barrier Gate with 4th Generation Brushless Motor and Remote Control for Vehicle Access
Fast Operating Automatic Barrier Gate with 4th Generation Brushless Motor and Remote Control for Vehicle Access

Fast Operating Automatic Barrier Gate with 4th Generation Brushless Motor and Remote Control for Vehicle Access

Place of Origin Shenzhen，China
Brand Name SINOMATIC
Certification CE, ISO, UL
Model Number DZ-2129
Product Details
Motor Voltage:
24v
Boom Option:
Straight,Folding,Fencing
Opening Time:
1.2s~3s
Working Temperature:
-35°C ~ +85°C
Usage:
Outdoor
Remote Distance:
>100M
Voltage:
220V/110V
Motor:
BLDC Motor
Highlight:

automatic barrier gate with remote control

,

fast operating barrier gate with brushless motor

,

vehicle access barrier gate with warranty

Payment & Shipping Terms
Minimum Order Quantity
10 PCS
Price
Negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5~8 working days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,Alipay,Paypal,Credict card
Supply Ability
3,000 pcs per month
Product Description
Fast Operating Automatic Barrier Gate with 4th Generation Brushless Motor
Thank you for choosing the SINOMATIC 4th generation brushless motor barrier gate. This advanced parking barrier system incorporates cutting-edge mold design technology, precision die-casting manufacturing, and sophisticated brushless control speed regulation technology for superior performance and reliability.
Product Advantages
  • Advanced Mechatronics Design: Compact side-mounted structure for quick assembly and easy maintenance
  • Precision Molding Production: High manufacturing precision, fast production efficiency, and guaranteed quality
  • Worm-Gear Transmission: Secondary variable speed transmission with high precision, long lifespan, and manual operation capability during power outages
  • DC Brushless Motor: Low power consumption, high efficiency, no overheating, and wide speed adjustment range
  • Hall Limit Technology: Automatic limit detection upon power-up without debugging requirements
  • Curved Triple Connecting Rod: Ensures arm stability in vertical and horizontal positions with easy balance adjustment
  • Quick Direction Interchange: Easily adaptable to different construction site requirements
  • Advanced Controller: Integrated chip drive with fast processing, large memory, and 24V low voltage safety
Technical Specifications
Product Name 4th Generation DC Brushless Barrier
Model DZ-2129
Cabinet Size 340×300×1047(mm)
Working Temperature -35℃ to +85℃
Power Supply AC110V/220V; DC24V
Open/Close Speed 1.2s-3s (Adjustable)
Rated Power 200W
Driving Method DC brushless motor
Humidity ≤90%
Remote Control Distance ≤100m (open, sunny weather)
Protection Grade IP54
Motor No-load Speed 1850r/min
Max Boom Length 3m-4m
Main Functions & Features
Operation speed can be adjusted
Slow up and slow down can be adjusted
The limit angle can be adjusted
Left and right direction can be quickly interchanged
The barrier arm can be manually operated in case of power failure
433MHz frequency learning code anti-copy remote controller
Infrared photocell sensor IO signal input function
Loop detector and radar IO signal anti-collision signal input function
Up, down and stop IO signal input function
Counting function
LED light IO signal output function
Traffic light IO signal output function
Up and down in place, normally open and normally closed signal output function
RS485 communication output function
Delay arm drop function
Arm auto-reverse function
Automatic lifting function when power is off
IO port single-key cycle up and down function
Loop detector normally open and normally closed function
One car and one arm to prevent toll evasion function
Anti-collision alarm function (requires additional fee for alarm and sensor)
Fire linkage signal input function
The IO port closes the signal input function
Fleet (Peak Mode)

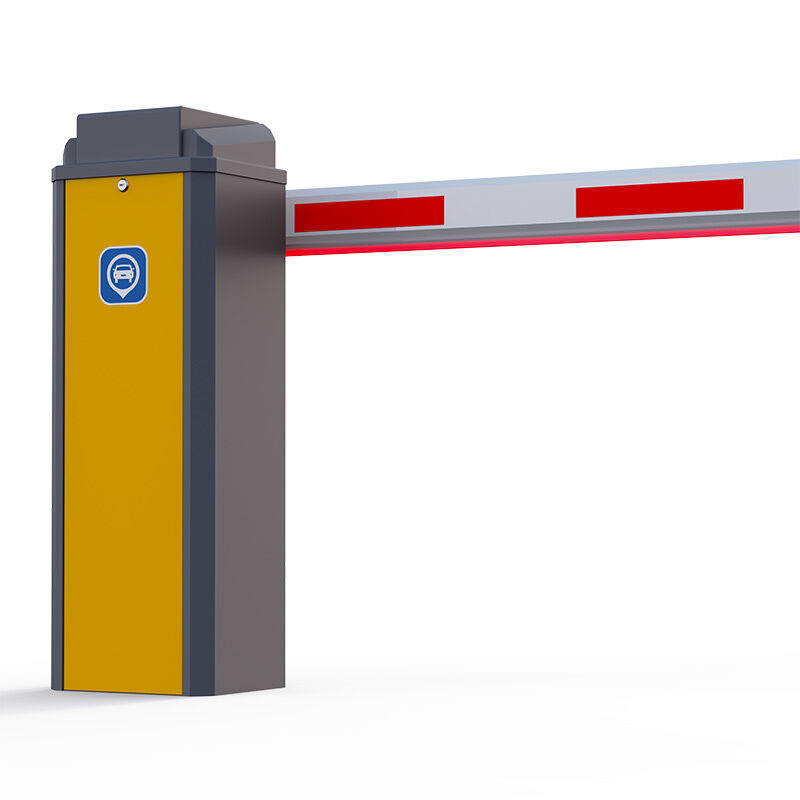

SINOMATIC 4th Generation DC Brushless Barrier Gate - Professional vehicle access control system
Service & Support
One Year Free Service: Comprehensive servicing provided (arm components excluded)
Lifetime Service: Ongoing charged servicing available
Technical Support: Professional technology servicing included
Charged Service Conditions: Wrong installation damage, improper voltage issues, surface damage from incorrect use, natural disaster damage, overdue servicing, and items outside our service promises.
