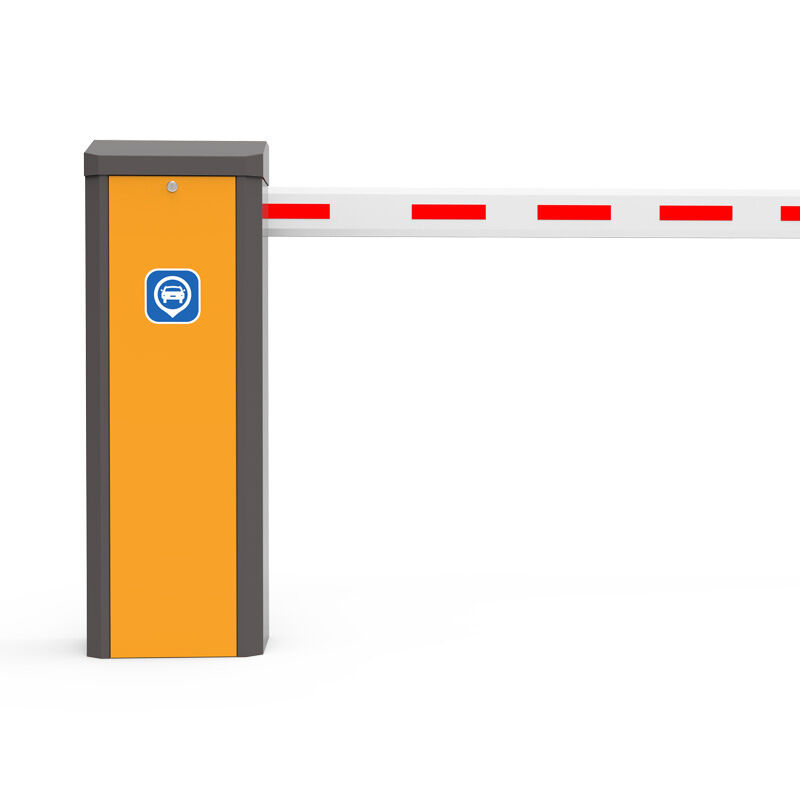

Heavy Duty Brushless Motor Parking Barrier Gate With Worm Gear Transmission And 3-6M Boom Length For High Traffic Areas
  • Heavy Duty Brushless Motor Parking Barrier Gate With Worm Gear Transmission And 3-6M Boom Length For High Traffic Areas
  • Heavy Duty Brushless Motor Parking Barrier Gate With Worm Gear Transmission And 3-6M Boom Length For High Traffic Areas
  • Heavy Duty Brushless Motor Parking Barrier Gate With Worm Gear Transmission And 3-6M Boom Length For High Traffic Areas
Heavy Duty Brushless Motor Parking Barrier Gate With Worm Gear Transmission And 3-6M Boom Length For High Traffic Areas

Heavy Duty Brushless Motor Parking Barrier Gate With Worm Gear Transmission And 3-6M Boom Length For High Traffic Areas

Place of Origin Shenzhen，China
Brand Name SINOMATIC
Certification CE, ISO, UL
Model Number DZ-830
Product Details
Communication Interface:
RS485
Duty Cycle:
100%
Operation Time:
1.5S~6S
Housing Color:
Yellow, Grey, Golden
Boom Barrier Length:
3M-6M
Protection Grade:
IP54
Operation Testing:
More Than 5 Million Times
Spring:
Balance Spring
Boom Type:
Straight, Folding, Fence, Round
Design Style:
Modern
Package:
Carton/plywood
Gross Weight:
45kg
Oem:
Support
Delivery:
5~7 Working Days After Payment Received
Payment & Shipping Terms
Minimum Order Quantity
10 PCS
Price
US$250~US$300
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5~7 working days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,Alipay,Paypal,Credict card
Supply Ability
3,000 pcs per month
Product Description
Heavy Duty Brushless Motor Parking Barrier Gate With Worm Gear Transmission For High Traffic Toll Station
Advanced 3rd generation brushless motor barrier gate with 3-6m boom length, featuring cutting-edge mold design and die-casting manufacturing technology.
Product Overview
This product adopts the latest mold design technology, mold die-casting manufacturing technology and brushless control speed regulation technology. The arm left and right interchangeable quickly. No clutch design is convenient to use. The movement adopts two-stage worm gear drive, curved crank with three-link structure, the speed of opening and closing is fast and stable. Easy maintenance and long service life.
Technical Specifications
Model DZ-830
Cabinet Size 343*300*950(mm)
Working Temperature -35℃ to +65℃
Power Supply DC24V; AC110V/220V, 50/60 Hz
Open/Close Speed 1.5s-6s (Adjustable)
Rated Power 160W
Driving Method DC Brushless Motor
Humidity ≤90%
Remote Control Distance ≤100m (open, sunny weather)
Protection Grade IP54
Motor No-load Speed 1850r/min
Max Boom Length 3m-6m
Product Advantages
  • Advanced mechatronics side-mounted design: Compact structure, quick assembly, easy maintenance
  • Precision molding production: High accuracy, fast efficiency, guaranteed quality
  • Worm-gear secondary variable speed transmission: High precision, long lifetime, manual operation during power outages
  • DC brushless motor design: Low consumption, high efficiency, no overheating, wide speed adjustment
  • Hall limit technology: Automatic limit detection without debugging, continuous speed monitoring
  • Curved triple connecting rod structure: Ensures arm stability in vertical/horizontal positions, easy balance adjustment
  • Quick arm direction interchange: Adaptable to different construction site requirements
  • Advanced DC brushless controller: Integrated chip drive, 24V low voltage power supply, global voltage compatibility
Heavy Duty Brushless Motor Parking Barrier Gate
Main Functions & Features
  • Adjustable running speed from 1.5s to 6s
  • Quick interchange capability
  • Manual motor wheel operation during power outages with automatic reset
  • Stable curved crank arm three-link movement structure
  • Wireless remote control operation
  • Auto reverse function with adjustable force
  • Infrared photocells connector compatibility
  • Loop detector connector availability
  • Seamless integration with car parking systems
  • Traffic light connector (AC220V, ≤40W)
  • Dry contact signal output for parking systems
  • Adjustable auto-delay when closing
  • Built-in RS485 or CAN network communication interface
  • Counting interface
  • 24V backup battery interface with solar charging option
Service & Support
  • One year free servicing (excluding arm)
  • Lifetime charged servicing available
  • Comprehensive technical support provided
Product Maintenance
  • Maintain regular cleaning of barrier gate
  • Monthly inspection of joints for loose parts
  • Check spring elasticity after 3000 operations
  • Semi-annual inspection of wear parts (springs, limit switches)
Note: Remote control performance may be affected by obstructions, battery condition, or extreme weather
