DC24V 300kg Capacity Swing Gate Opener with Remote Control for Residential Courtyards

The SN-SW300DC gate opener is designed for residential courtyard swing gate applications, supporting gate leaf weight up to 300 kg and width up to 2.5m. Features include DC motor operation, compact structure, smooth performance, and low noise operation.

• Soft start slow stop, automatic close, obstacle detection by automatic reversing
• Interface for GSM, infrared sensor, alarm light, wall button
• Back up battery compatibility
• Solar panel operation capability
• Aluminum shell with stainless steel arm construction
• Separate control unit for easy installation

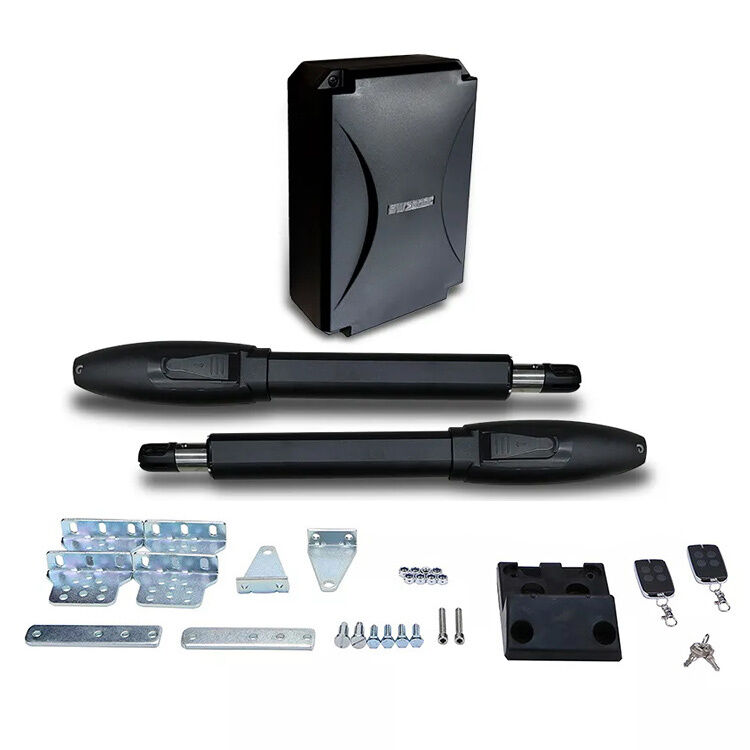

• SW300DC motor * 2 pcs
• Control box * 1 pc
• Control board * 1 pc
• Remote control * 2 pcs
• Manual release key * 1 pc
• User manual * 1 pc
• Mounting accessories

• Before installing the door opener, confirm proper door installation to ensure easy manual operation and effective door safety stopper functionality.
• Install electric lock with 40-50mm distance between door bottom and ground. Without electric lock, maintain ≥20mm clearance.
• Recommended mounting height: 300-800mm from ground with reliable fixed points for mounting brackets.

Use PVC pipe for laying motor, power cable, and control cables. Separate PVC pipes for motor/power cables and control cables respectively to ensure normal operation and cable protection.

For secure motor installation, use expansion screws to firmly fix mounting brackets.

For comprehensive installation and operation details, download the complete user manual:
