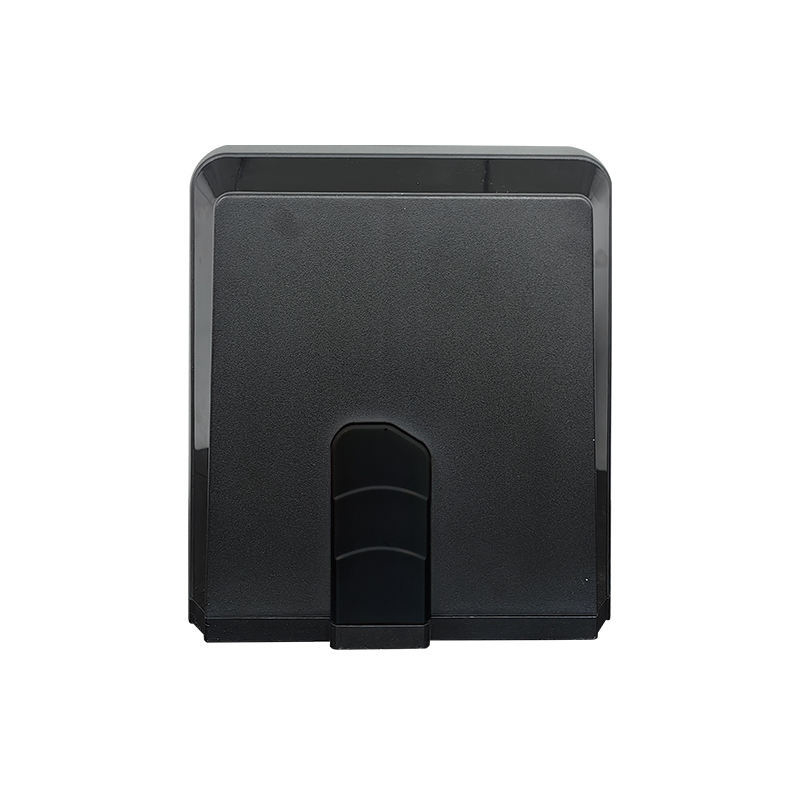

2000KG 750W Shenzhen China Soft Start Slow Stop Sliding Gate Opener GA2000AC
  • 2000KG 750W Shenzhen China Soft Start Slow Stop Sliding Gate Opener GA2000AC
  • 2000KG 750W Shenzhen China Soft Start Slow Stop Sliding Gate Opener GA2000AC

2000KG 750W Shenzhen China Soft Start Slow Stop Sliding Gate Opener GA2000AC

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number GA2000AC
Product Details
Packing Weight:
17.5kg
Auto-Closing Function:
Yes
Limit Switch:
Spring (mechanical) / Magnetic
Soft Start/Stop:
Yes
Remote Control Range:
30m
Gate Moving Speed:
12m/min
Loading Gate Weight:
2000 KG
Power Supply:
AC 220V/110V
Application:
Outdoor
Rated Power:
750W
Highlight:

750W sliding gate opener

,

2000KG soft start gate operator

,

slow stop sliding gate motor

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, , credit card/Cash/Alipay, L/C, D/A, D/P
Supply Ability
10,000 pcs per month
Product Description
2000KG 750W Shenzhen China Soft Start Slow Stop Sliding Gate Opener GA2000AC
The GA2000AC sliding gate opener set provides driving force for the opening and closing motion of sliding doors, with a maximum gate weight capacity of 2000 kilograms and support for gate lengths up to 12 meters.
Product Characteristics
• Soft start and slow stop operation
• Automatic reverse after encountering obstacles
• Adjustable motor output force, stall force, and slow stop distance
• Automatic close with adjustable waiting time
• Partial opening for pedestrian access
Technical Specifications
Model GA2000AC
Power Supply 110VAC/60Hz; 220VAC/50Hz; DC24V
Motor Power 750W
Gate Moving Speed 12m/min
Maximum Loading Weight 2000kgs
Remote Control Distance ≥30m
Remote Control Mode Single button mode / Three button mode
Limit Switch Spring/Magnetic limit switch
Working Duty S2, 20min
Recording of Remote Controls 25
Frequency 433.92MHz
Working Noise ≤56dB
Working Temperature -20℃~+70℃
Overlook Size 291x246x299mm
Package Weight 17.5kgs
Standard Unit Components
  • Gate Motor
  • Control board & box
  • 2 pcs remote controls
  • Mounting plate
  • Manual release key
  • User manual
  • Bolts & nuts
Optional Accessories
Rack Options
Metal Gear Rack & Nylon Gear Rack are available - order rack length according to your gate requirements
  • Photo beam sensor
  • Keypad systems
  • Push button
  • Warning light
Additional Accessory Details
Additional Remote Controls: Spare/Additional remotes for the automatic gate kit that require pairing to the motor.
Infrared Photocell: Detects pedestrians, vehicles and objects crossing an infrared beam to prevent gate closure.
Wireless Keypad: Provides secure access through the gate using a user-set code.
Wired Control: Allows users to control door opening and closing through an external push-button.
Alarm Lamp: Alerts people near the gate that the gate is in operation.
