1000KG 400W Motor Power AC220V 110V Sliding Gate Operator GA1000AC
  • 1000KG 400W Motor Power AC220V 110V Sliding Gate Operator GA1000AC
  • 1000KG 400W Motor Power AC220V 110V Sliding Gate Operator GA1000AC

1000KG 400W Motor Power AC220V 110V Sliding Gate Operator GA1000AC

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number GA1000AC
Product Details
Operating Temperature:
-20°C To 70°C
Color:
Black
Product Type:
Sliding Gate Operator
Remote Frequency:
433.92MHz
Packing Material:
Carton
Power Supply:
AC 110V/220V
Gross Weight:
16kg
Gate Closing Speed:
12m/min
Alarm:
Available
Design Style:
Modern
Noise Level:
≤56dB
Waterproof Rating:
IP44
Motor Type:
AC
Power Source:
Electric
Highlight:

1000KG sliding gate operator

,

400W motor sliding gate

,

AC220V 110V gate operator

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, , credit card/Cash/Alipay, L/C, D/A, D/P
Supply Ability
10,000 pcs per month
Product Description

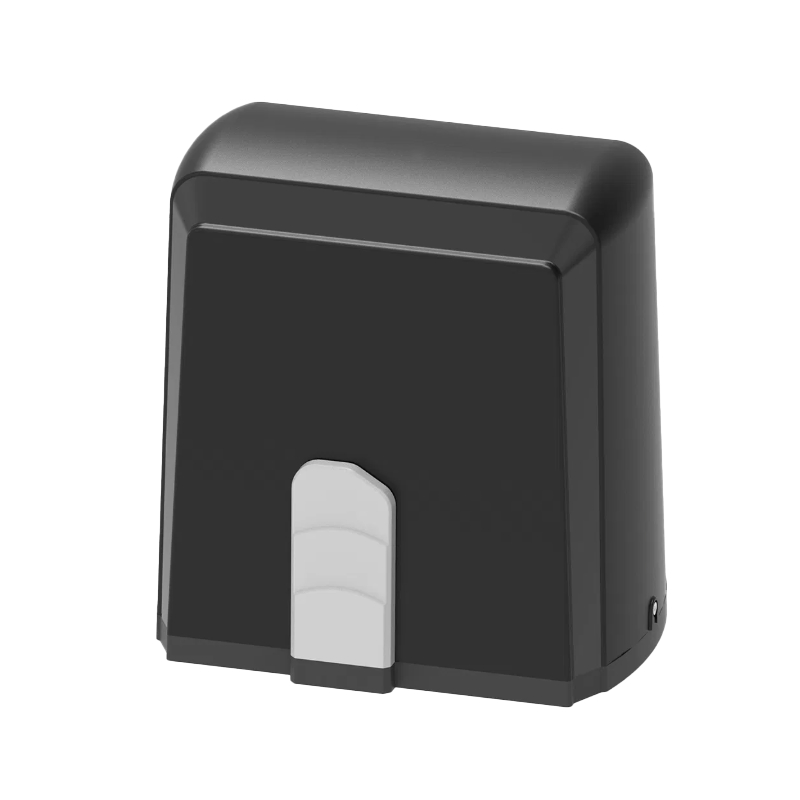

GA1000AC Sliding Gate Operator
The GA1000AC sliding gate opener set provides reliable driving force for sliding gate operations, supporting gates up to 1000 kilograms in weight and 8 meters in length.
Key Features
  • Soft start and slow stop operation
  • Automatic reverse safety feature when encountering obstacles
  • Adjustable motor output force, stall force, and slow stop distance
  • Automatic close with adjustable waiting time
  • Partial opening function for pedestrian access
Technical Specifications
Model GA1000AC
Power Supply 110VAC/60Hz; 220VAC/50Hz; DC24V
Motor Power 400W
Gate Moving Speed 12m/min
Maximum Loading Weight 1000kg
Remote Control Distance ≥30m
Remote Control Mode Single button mode / Three button mode
Limit Switch Spring/Magnetic limit switch
Working Duty S2, 20min
Remote Control Capacity 25 remotes
Frequency 433.92MHz
Working Noise ≤56dB
Working Temperature -20℃~+70℃
Overall Dimensions 291×246×299mm
Package Weight 16kg
Standard Unit Includes
  • Gate Motor
  • Control board & box
  • 2 remote controls
  • Mounting plate
  • Manual release key
  • User manual
  • Bolts & nuts
Optional Accessories
  • Metal Gear Rack & Nylon Gear Rack (order according to gate length)
  • Photo beam sensor
  • Keypad systems
  • Push button
  • Warning light
Accessory Details
Additional Remote Controls
Spare/additional remotes for the automatic gate kit that require pairing with the motor.
Infrared Photocell
Detects pedestrians, vehicles, and objects crossing an infrared beam to prevent gate closure.
Wireless Keypad
Provides secure access through the gate using a user-set code.
Wired Control
Allows users to control gate opening and closing through an external push-button.
Alarm Lamp
Alerts people near the gate that the system is in operation.
