800KG 370W Motor Power Mechanical Magnetic Limit Switch Sliding Gate Opener GA800AC
  • 800KG 370W Motor Power Mechanical Magnetic Limit Switch Sliding Gate Opener GA800AC
  • 800KG 370W Motor Power Mechanical Magnetic Limit Switch Sliding Gate Opener GA800AC

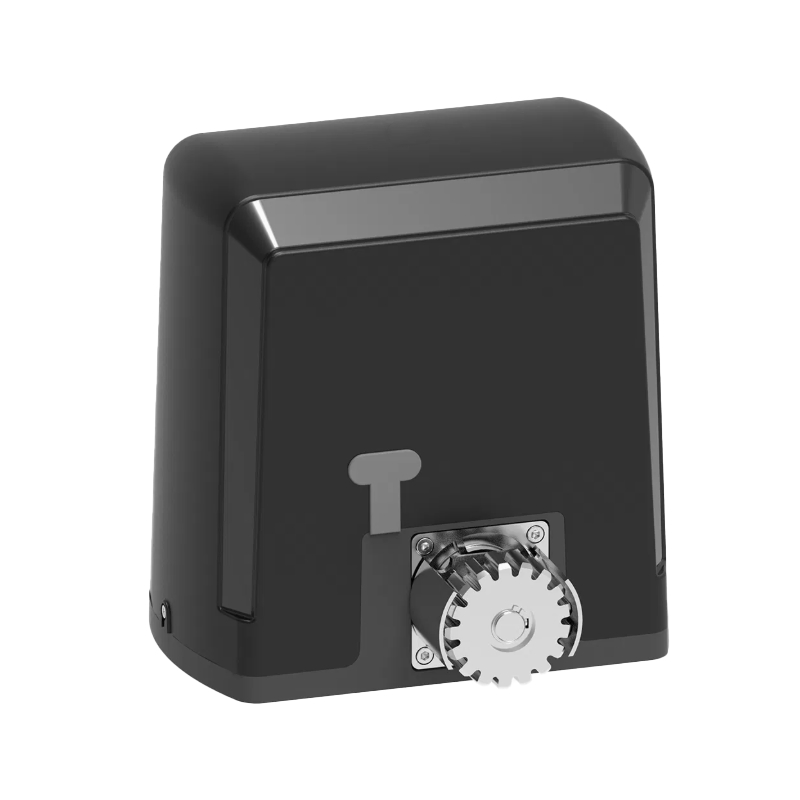

800KG 370W Motor Power Mechanical Magnetic Limit Switch Sliding Gate Opener GA800AC

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number GA800AC
Product Details
Remote Frequency:
433.92MHz
Photo Cell:
Available
Loading Capacity:
800 KG
Optional Accessories:
Sensor, Lamp, Gear Rack, WIFI Control
Driven Mode:
Gear
Limit Switch:
Mechanical/Meganetic
Gate Move Speed:
12m/min
Power Supply Range:
AC220V/110V(±10%)
Control Mode:
Frequency Converter
Manual Release:
Yes
Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, , credit card/Cash/Alipay, L/C, D/A, D/P
Supply Ability
10,000 pcs per month
Product Description

Product description



The GA800AC sliding gate opener set can provide driving force for the opening and closing motion of the sliding door, with a maximum gate weight of up to 800 kilograms and a gate length of up to 8 meters.



Product characteristics

Soft start and slow stop.

Automatic reverse after encountering obstacles.

Motor output force, stall force, slow stop distance are adjustable.

Automatic close with waiting time adjustable.

Partial opening for pedestrian passes.



Model GA800AC
Power supply 110VAC/60Hz; 220VAC/50Hz; DC24V
Motor power 370W
Gate Moving Speed 12m/min
Maximum Loading Weight 800kgs
Remote Control Distance ≥30m
Remote Control Mode Single button mode / Three button mode
Limit switch Spring/Magnetic limit switch
Working Duty S2, 20min
Recording of up remote controls 25
Frequency 433.92MHz
Working Noise ≤56dB
Working temperature -20℃~+70℃
Overlook size 291x246x299mm
Package Weight 15kgs



Standard Unit

Gate Motor
Control board & box
2 pcs remote controls

Mounting plate
Manual release key
User manual
Bolts & nuts



Optional Accessaries

  • Metal Gear Rack & Nylon Gear Rack are optional, you can order the rack length accordig to your gate length;
  • Photo beam sensor;
  • Keypad systems;
  • Push button;
  • Warning light;

Additional remote controls: Spare/Additional remotes for the automatic gate kit, these will need to be paired to the motor.
Infrared photocell: Detects pedestrians, vehicles and objects that cross an infrared beam and prevents the gate from closing.

Wireless keypad: Allows secure access through the gate used with a user set code.

Wired control: Allow users to control the opening and closing of the door through an external push-button.

Alarm lamp: Alerts people near the gate and users that the gate is in operation.
