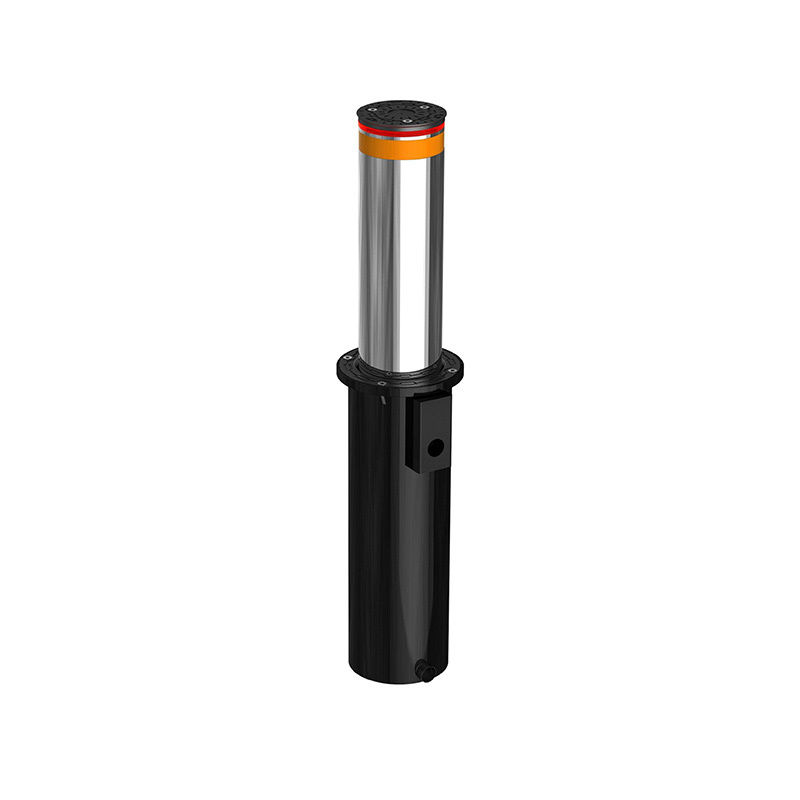

304/316 Stainless Steel Telescopic Bollards
High security automatic rising bollards with 219mm diameter and 600mm height, constructed from 6mm thick stainless steel with baseplate for secure substrate installation.
Product Overview
These automatic rising bollards stand 600mm above ground and recess 800mm into the ground (1100mm optional).
Remote-controlled operation enables quick deployment in 3-4 seconds for rising and 2 seconds for retraction.
Integrated safety features include 360-degree LED lighting and reflective strips for enhanced visibility.
Key Features
- 600mm height × 219mm diameter construction
- Surface mounted and in-ground installation options
- 6mm thick stainless steel construction
- Remote controlled height adjustment
- Brushed steel appearance
- 350W core power
- Dual voltage: 100V-120V / 200V-240V
- IP68 waterproof rating
- Integrated control box operation
- Enhanced protection for people and property
Customization & Service Options
- Multiple steel thickness options available (default 6mm)
- Various color finishes
- Custom sizing capabilities
- OMRON PLC control system for stability and safety
- Hydraulic pressure system for fast rising time and durability
- Durable stainless galvanization housing
- Optimized frame structure with high anti-impact and loading capacity
- Enhanced security and anti-collision performance
- Reflective bands and low-energy LED lighting for nighttime visibility
Technical Specifications
| Specification |
Details |
| Bollard Color |
Stainless steel original color |
| Raising/Lowering Speed |
≤4 seconds / ≤2 seconds |
| Diameter |
219mm (168mm, 273mm, 324mm optional) |
| Raised Height |
600-1000mm (optional) |
| Material |
SS304 / SS316 |
| Control Mode |
Remote control (<50m) |
| System Control |
Hydraulic and electric control |
| Working Temperature |
-30℃ to +75℃ |
| Embedded Cylinder Depth |
800mm / 1100mm |
| Lamp System |
LED light (Acrylic light circle) |
| Power Supply |
220V |
| Thickness |
6mm / 8mm / 10mm / 15mm / 20mm |
| Weight |
60kg - 120kg |
| Anti-collision Levels |
K4, K8, K12 |
| Service Life |
5 million cycles |
| Drainage Mode |
Natural drainage + External drainage system |
Mechanism Structure
