Place of Origin | Shenzhen, China. |
Brand Name | SINOMATIC |
Certification | CE/ ISO |
Model Number | SN-BO-219 |
PRODUCT DESCRIPTION

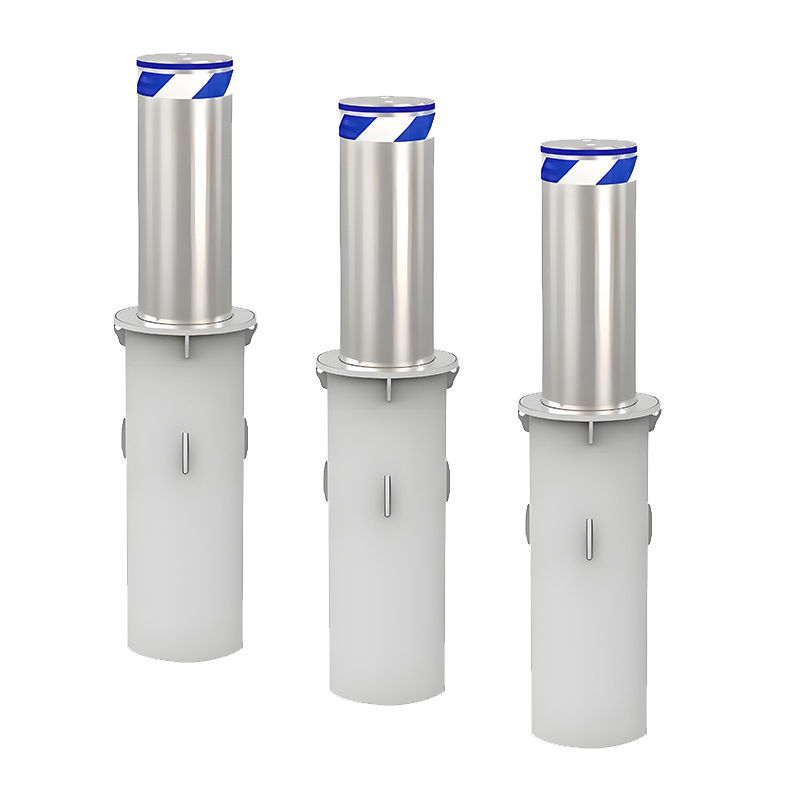

SINOMATIC hydraulic Rising Bollard is an electric-hydraulic-mechanically operated retractable bollard system.The system can be quickly and easily operated. It is suitable for both security and access control applications.
The system is designed to bring desired environmental and aesthetic enhancements to perimeter security, securing perimeter access without providing a sense of social disorder and active alarm measures. The system is designed to withstand impacts and still operate, giving high security levels to all sites. It is ideal for university campuses, pedestrian walkways, parking lots, government buildings, sports stadiums, amusement parks, airports, shopping centers, hospitals, and apartment complexes.
PRODUCT ADVANTAGES
*Hydraulic pump integrated within bollard for ease of installation and increased relaibilty and intensive use.
*Sleek design and pleasing aestehtics. Suitable for a wide variety of applications, including highways approved schemes.
*High duty cycle, ensuring lasting performace and intensive use.Optional blackout solenoid allows for safe automatic lowering in case of power failure.
OUR SERVICE
1. Different thickness of steel is available (default 6 mm)
2. The different color is available
3. Customized size is available
4. Steady and safe due to the OMRON PLC control system
5. Speedy rising time and durable quality with hydraulic pressure
6. Housing with durable and stainless Galvanization
7. Optimization of the frame structure, high anti-impact capability, high loading capability
8. High security and anti-collision ability
9. With a reflective band and a low energy consumption LED light at night
TECHNICIAL SPECIFICATIONS
Bollard Color
|
Stainless steel original color
|
Raising/lowering speed
|
≤4S/ ≤2S
|
Diameter
|
219mm(168mm, 273mm, 324mm optional)
|
raised height
|
600-1000mm(optional)
|
Material
|
SS304/ SS316
|
Control mode
|
Remote control(<50m)
|
system control
|
Hydraulic and electric control
|
Working temperature
|
-30℃~+75℃
|
Embedded cylinder depth
|
800mm/1100mm
|
Lamp belt
|
LED light (Acrylic light circle)
|
Power Supply
|
220V
|
Thickness
|
6mm/8mm/10mm/15mm/20mm
|
Weight
|
60kg~120kg
|
Anti-collision levels
|
K4,K8,K12
|
service life
|
5 million times
|
Drainage mode
|
Natural drainage+External drainage system
|
WORSHOP PRODUCTION
ABOUT SINOMATIC COMPANY
Founded in 2002, SINOMATIC is a national high-tech enterprise specialized in R&D,production, and sales of intelligent access control products. It has nearly 200 patented technologies. Its main products including Access control turnstile, parking barrier gate/parking lock, Automatic gate opener, Anti-terrorism roadblock, etc., are suitable for the entry and exit management of vehicles and personnel such as government building, high-speed toll gate, commercial plaza, residential areas, stations, customs checkpoints, etc.
SINOMATIC has strong innovation and R&D capabilities, ultra-high technology, and craftsmanship, leading the industry into the era of intelligent variable speed interconnection.
As an innovative enterprise, SINOMATIC has always been committed to building an efficient and innovative R&D team to continuously promote technological and product innovation, improve the core competitiveness and market share of the enterprise.
At the same time, SINOMATIC attaches great importance to the construction of the talent team and focuses on introducing and cultivating high-quality R&D personnel in the field of research and development.
Technological innovation, product quality, and manufacturing capabilities are the driving force of SINOMATIC's continuous development. Brand, channels, and after-sales service are the pillars of SINOMATIC's long-term development. SINOMATIC products are sold all over the world. It has set up agency service outlets in more than 150 countries and regions including United States, Canada, UK, France, Germany, Russia, India, Singapore, Malaysia, Indonesia, Thailand, Turkey, Israel, UAE, Saudi Arabia, South Africa Nigeria, Kenya, etc.
With superior product quality and a high-quality after-sales service system, "SINOMATIC" has become a world-renowned brand of Access control products. SINOMATIC always keeps forging ahead, makes every product with hearts, and adheres to build trustworthy SINOMATIC quality and Chinese national brand in the world.
CONTACT US AT ANY TIME
