Retractable 100% Duty Rated Hydraulic Rising Bollards Electric Hydraulic Mechanically Operated
  • Retractable 100% Duty Rated Hydraulic Rising Bollards Electric Hydraulic Mechanically Operated
  • Retractable 100% Duty Rated Hydraulic Rising Bollards Electric Hydraulic Mechanically Operated
  • Retractable 100% Duty Rated Hydraulic Rising Bollards Electric Hydraulic Mechanically Operated
Retractable 100% Duty Rated Hydraulic Rising Bollards Electric Hydraulic Mechanically Operated

Retractable 100% Duty Rated Hydraulic Rising Bollards Electric Hydraulic Mechanically Operated

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BO-219
Product Details
Control Mode:
Remote Control
Material Of Bollard:
304 Or 316 Stainless Steel
Rising Time:
2-4 Seconds
Package:
Wooden Box
Ip Rate:
68
Safety Alert:
Reflective Stripe/LED
Thickness Of Bollard:
6/8/10/15/20mm
Life:
Over 10 Years
Rising Bollard Diameter:
219 Mm
Bollard Thickness:
6, 8, 10mm
Highlight:

100% Duty Retractable Rising Bollards

,

Electric Operated Retractable Bollards

,

Mechanically Operated Retractable Bollards

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
US$350~US$450
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union, , credit card/Cash/Alipay, L/C, D/A, D/P
Supply Ability
1,000 pcs per month
Product Description

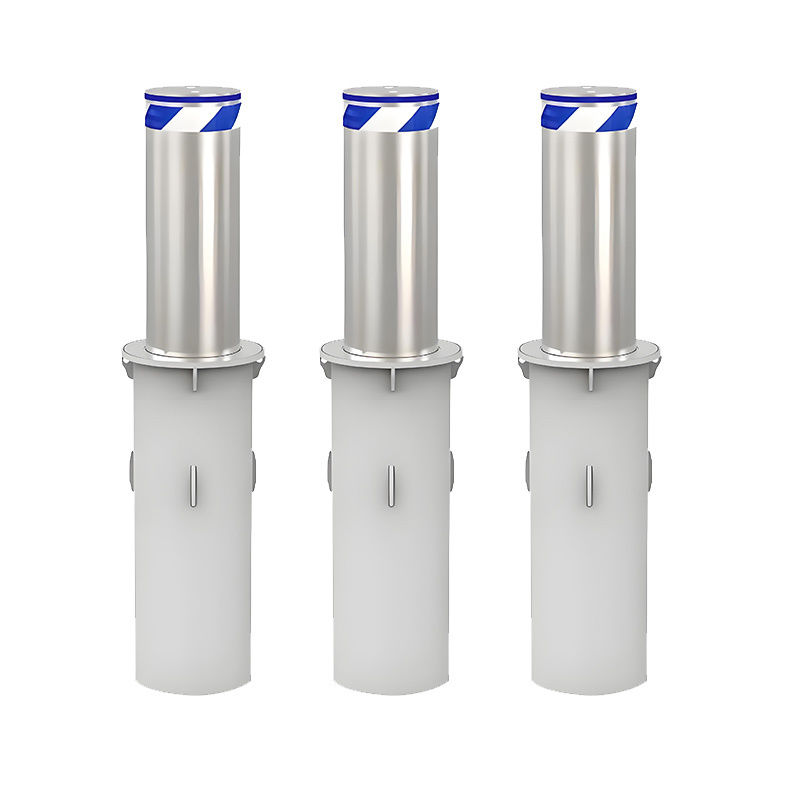

Retractable Hydraulic Rising Bollard System
SINOMATIC hydraulic Rising Bollard is an electric-hydraulic-mechanically operated retractable bollard system designed for quick and easy operation. Suitable for both security and access control applications, this system provides perimeter security while maintaining environmental aesthetics.
Key Features
  • Stainless steel anti-collision, fully automatic lifting column
  • Thick material construction with waterproof design and night reflectivity
  • One-click remote control with automatic lifting and lowering
  • Support for multiple linked switches
  • Stable and durable construction with branded motor
Hydraulic Bollard Advantages
  • Embedded motor and hydraulic pump with 220V supply, underground installation with waterproof function
  • Peripheral embedded parts with bottom drainage holes for effective water management
  • Long service life exceeding 10 years, superior to traditional electric and pneumatic bollards
  • Steel track construction for enhanced anti-crash capability and stability
  • Stainless steel material with reinforced hydraulic system, weighing 160kg for maximum durability
Customization & Service Options
  • Multiple steel thickness options available (default 6mm)
  • Various color customization options
  • Custom sizing to meet specific requirements
  • OMRON PLC control system for steady and safe operation
  • Fast rising time with durable hydraulic pressure system
  • Durable stainless galvanization housing
  • Optimized frame structure with high anti-impact and loading capabilities
  • High security and anti-collision ability
  • Reflective band with low-energy LED lighting for night visibility
Technical Specifications
Bollard Color Stainless steel original color
Raising/Lowering Speed ≤4S/≤2S
Diameter 219mm (168mm, 273mm, 324mm optional)
Raised Height 600-1000mm (optional)
Material SS304/SS316
Control Mode Remote control (<50m)
System Control Hydraulic and electric control
Working Temperature -30℃～+75℃
Embedded Cylinder Depth 800mm/1100mm
Lamp Band LED light (Acrylic light circle)
Power Supply 220V
Thickness 6mm/8mm/10mm/15mm/20mm
Weight 60kg~120kg
Anti-collision Levels K4,K8,K12
Service Life 5 million cycles
Drainage Mode Natural drainage + External drainage system
Automatic Bollard Features
High security and anti-collision capability with pneumatic air pump providing sustained power. Electronic control enables automatic rise/fall functionality with high system independence.
Reflective Band Options
Various color options available for Glossee aveolate reflective band, requiring minimal light for clear night visibility.
Available Materials
304 stainless steel, 316 stainless steel, and carbon steel with electrophoresis spray paint.
Flange Design
Anti-skid flange with unique pattern design compatible with various road surfaces. Built-in PA orientation for precise alignment.
Top Cap Integration
Simple integration design compatible with all architectural styles. Excellent workmanship provides resistance to close attacks.
Case Reference
Retractable 100% Duty Rated Hydraulic Rising Bollards Electric Hydraulic Mechanically Operated 0
About SINOMATIC Company
Founded in 2002, SINOMATIC is a national high-tech enterprise specializing in R&D, production, and sales of intelligent access control products. With nearly 200 patented technologies, our product range includes access control turnstiles, parking barrier gates, automatic gate openers, and anti-terrorism roadblocks for government buildings, commercial plazas, residential areas, stations, and customs checkpoints.
SINOMATIC maintains strong innovation capabilities and leads the industry in intelligent variable speed interconnection technology. Our products are distributed globally with service outlets in over 150 countries including United States, Canada, UK, France, Germany, Russia, India, and many others.
